- Page 1 A-SERIES BATTERIES (A-52, A-52L) User Guide CYC MOTOR LTD www.cycmotor.com © 2024 CYC MOTOR LTD...
- Page 2 It is essential to read and understand the contents of this manual before using the battery pack. CYC Motor Ltd is not liable for any damages, injuries, or malfunctions resulting from misuse, improper installation, or neglect of the guidelines provided in this manual.
-
Page 3: Table Of Contents
Mounting Method ..........................8 Under the downtube .......................... 9 Inside the triangle ..........................10 Wiring & Connection......................... 11 Charger ............................. 11 Charging Instructions ........................11 Warnings ............................11 GENERAL MAINTENANCE ..............12 Storage ............................. 12 WARRANTY..................... 12 © 2024 CYC MOTOR LTD... - Page 4 A-SERIES BATTERIES USER GUIDE Warranty Registration ........................12 Warranty Terms and Conditions ...................... 13 CERTIFICATIONS ................... 16 CONTACT INFORMATION ..............16 DOWNLOADS ..................16 © 2024 CYC MOTOR LTD...
-
Page 5: Safety & Precaution
If at any time you have concerns about your battery, do not use it and seek expert assistance. Always dispose of used batteries at an approved recycling location, never dispose of your battery with general house waste. © 2024 CYC MOTOR LTD... -
Page 6: Installation & Use
CYC Motor Ltd mid-drive motor product line. Using this battery for anything other than its intended use, is not recommended and will not be supported by CYC Motor Ltd. The installation guidelines also provide you with clear instructions on usage and charging. Kindly be mindful when using and charging this product. -
Page 7: Specficiations
Compatibility This battery pack is designed to be compatible with CYC Motor Ltd’s mid-drive motor system product range. Please note that the power output of the system will be dependent on the specific motor and battery combination chosen. Different motor and batteries may provide varying levels of performance and range. -
Page 8: Battery Life Expectancy
10Ah (520Wh) 15Ah (780Wh) Maximum Continuous Discharge Current Maximum Charge Current Dimensions (L*W*H) 309mm * 100mm * 322mm * 131mm * 130 110mm Total Weight 3.7 kg 5 kg ***Compatible with all CYC motor systems © 2024 CYC MOTOR LTD... -
Page 9: Dimensions

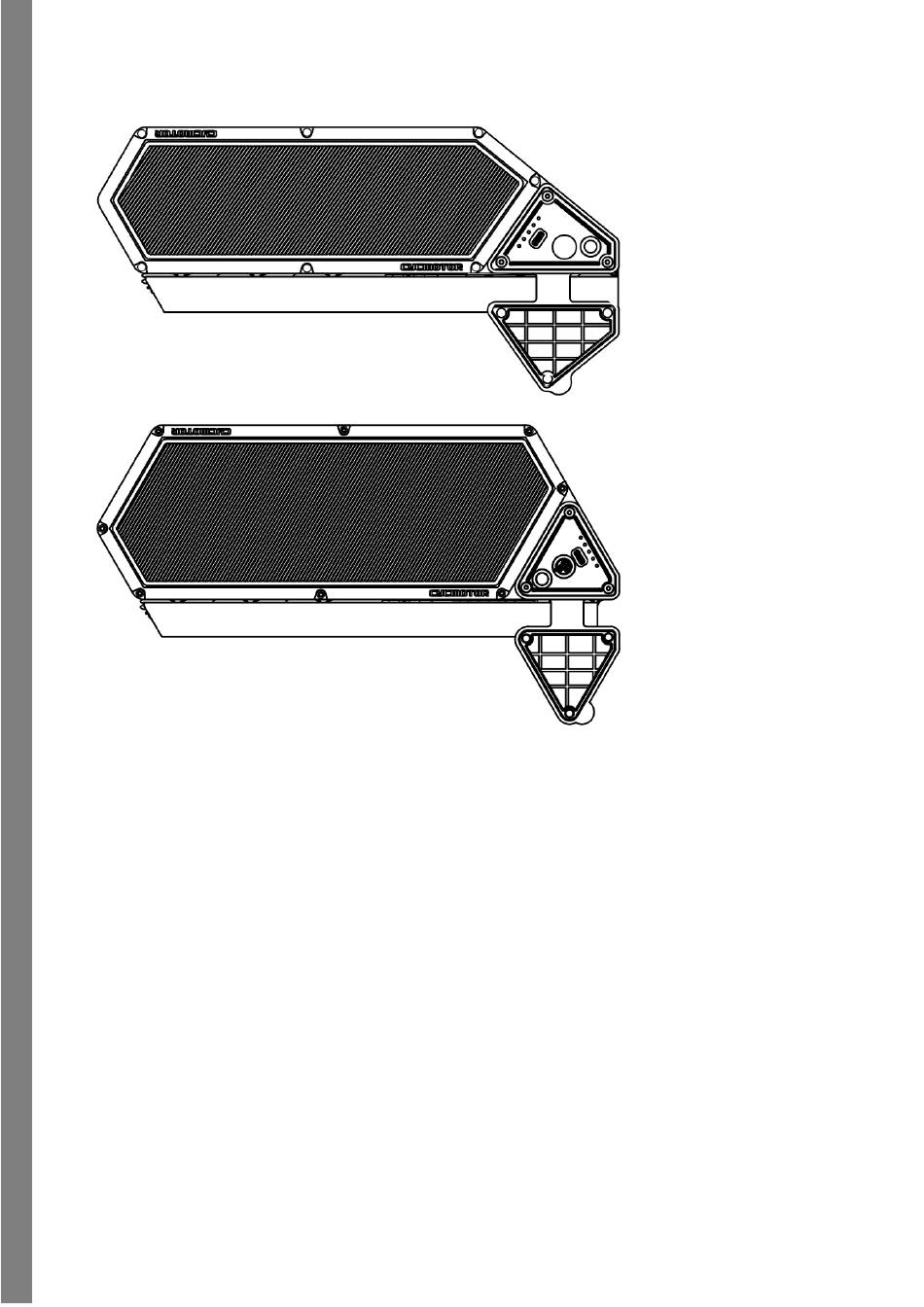

A-SERIES BATTERIES USER GUIDE Dimensions A-52 Battery Dimensions CHARGER PORT © 2024 CYC MOTOR LTD... -
Page 10: A-52L Battery Dimensions
A-SERIES BATTERIES USER GUIDE A-52L Battery Dimensions CHARGER PORT © 2024 CYC MOTOR LTD... -
Page 11: Features
6x M5*6 Round hex screws All parts listed are included in the package with every purchase. Should you be missing a part, kindly contact CYC Motor Ltd or an authorised reseller immediately along with your order number as reference. © 2024 CYC MOTOR LTD... -
Page 12: Installation
6. Using the battery LIPO connector, plug the battery into the motor’s designated battery plug. 7. To ensure your battery is charged, pull down the right-side cover, and press the power button down. The LED indicators will illuminate with the batteries current charge indication. © 2024 CYC MOTOR LTD... -
Page 13: Under The Downtube
3. Stick the adhesive beneath the frame and tighten the hose clamps or zip ties depending on which ones are used. 4. Gently place the battery into the battery mounting plate. Then firmly press the battery down, locking it in place. © 2024 CYC MOTOR LTD... -
Page 14: Inside The Triangle
If the battery doesn’t move, it’s now locked. 4. You may use the provided velcro strips, zipties or hose clamps under the battery mounting rail to further before securing the battery into the battery mounting plate. © 2024 CYC MOTOR LTD... -
Page 15: Wiring & Connection
Refrain from charging the battery packs outdoors. • Unplug the battery pack after it’s fully charged do not leave it connected to the charger for a long period of time. • Do not interfere with the wires or connectors while charging. © 2024 CYC MOTOR LTD... -
Page 16: General Maintenance
Register for warranty by scanning the QR code below and submitting the form. By registering this product for warranty, you agree to the terms and conditions specified in this user guide. Scan this code for warranty registration © 2024 CYC MOTOR LTD... -
Page 17: Warranty Terms And Conditions
If your battery is stolen or misplaced • We do not warrant batteries used with other controllers outside CYC Motor Ltd unless it is clear the battery is at fault. We will facilitate repairs if a battery has been damaged from another controller or motor. - Page 18 Where Products are already faulty or damaged upon delivery, photographic evidence of the damage must be submitted to the supplier of the battery and in turn to CYC Motor Ltd via email before the battery will be repaired or replaced in accordance with these terms.
- Page 19 Product, except to assist in restoring the Product to its factory default settings. To the full extent permitted by law: CYC Motor Ltd will not be liable for any loss, damage or alterations to third party hardware, software, programs, data and/or information stored on any media or any part of the Product, no matter how occurring;...
-
Page 20: Certifications
Warranty Terms and Conditions are governed by and must be construed according to the law of Hong Kong. All warranties are voided if any of our products sold through CYC Motor Ltd are modified or rebuilt or opened. CERTIFICATIONS This product complies with UN38.3, IEC62133, RoHS,...
