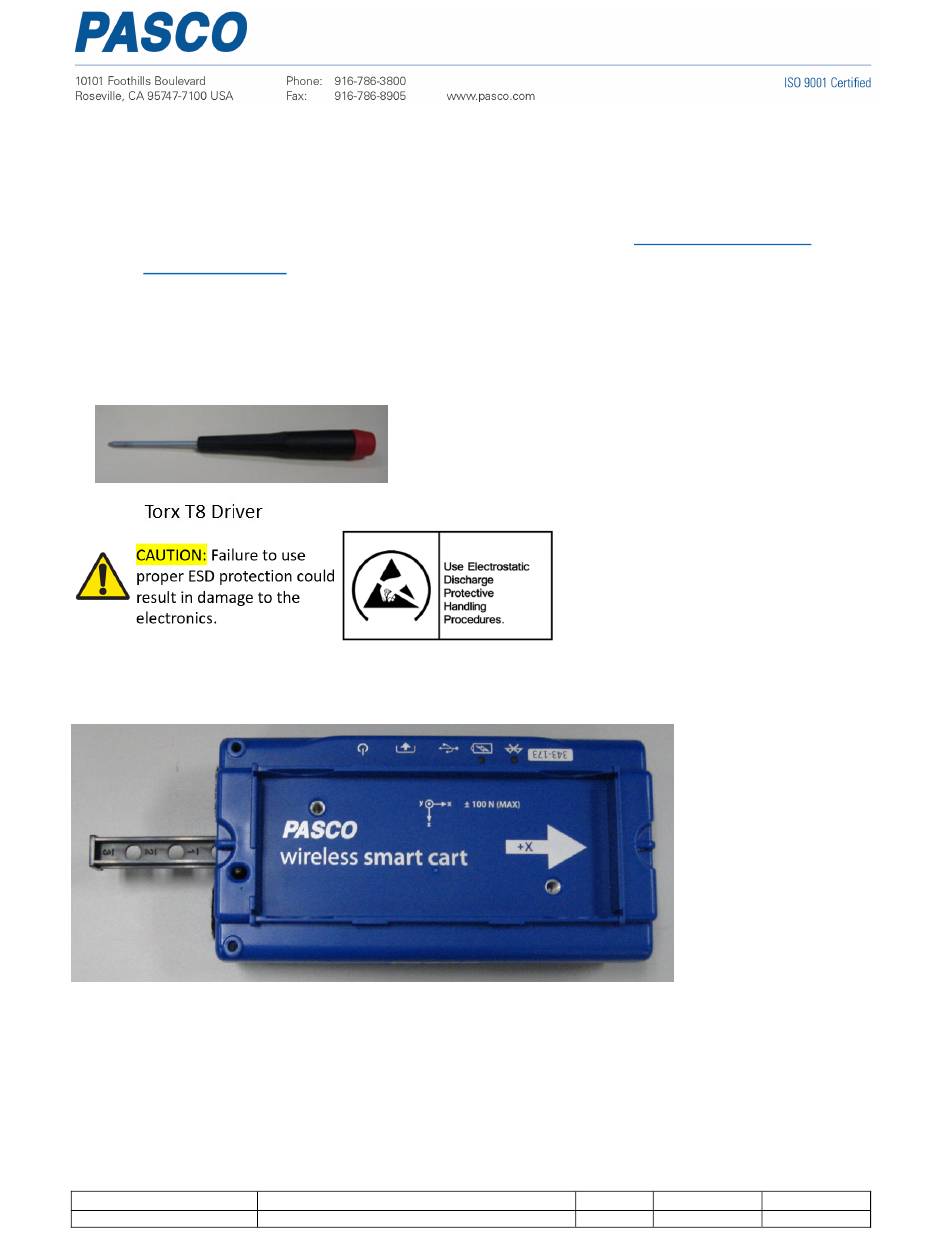

ME‐1240/ME‐1241; Wireless Smart Cart Spare Wheel Kit ME‐1250
Replacement Instructions.
If you need further assistance, please contact Technical Support at support@pasco.com or
through www.pasco.com on chat. To access chat through your browser, please enable all
cookies on our website.
Recommended Equipment: (PS‐3299; Battery Replacement Tool Set contains a precision T8
Driver). This is the only Tool Required.
Wireless Smart Cart
PASCO Form Number
Description
Date
Revision
013-17339
ME-124X Spare Wheel Kit Replacement
05-16-22
Page 1 of 6
