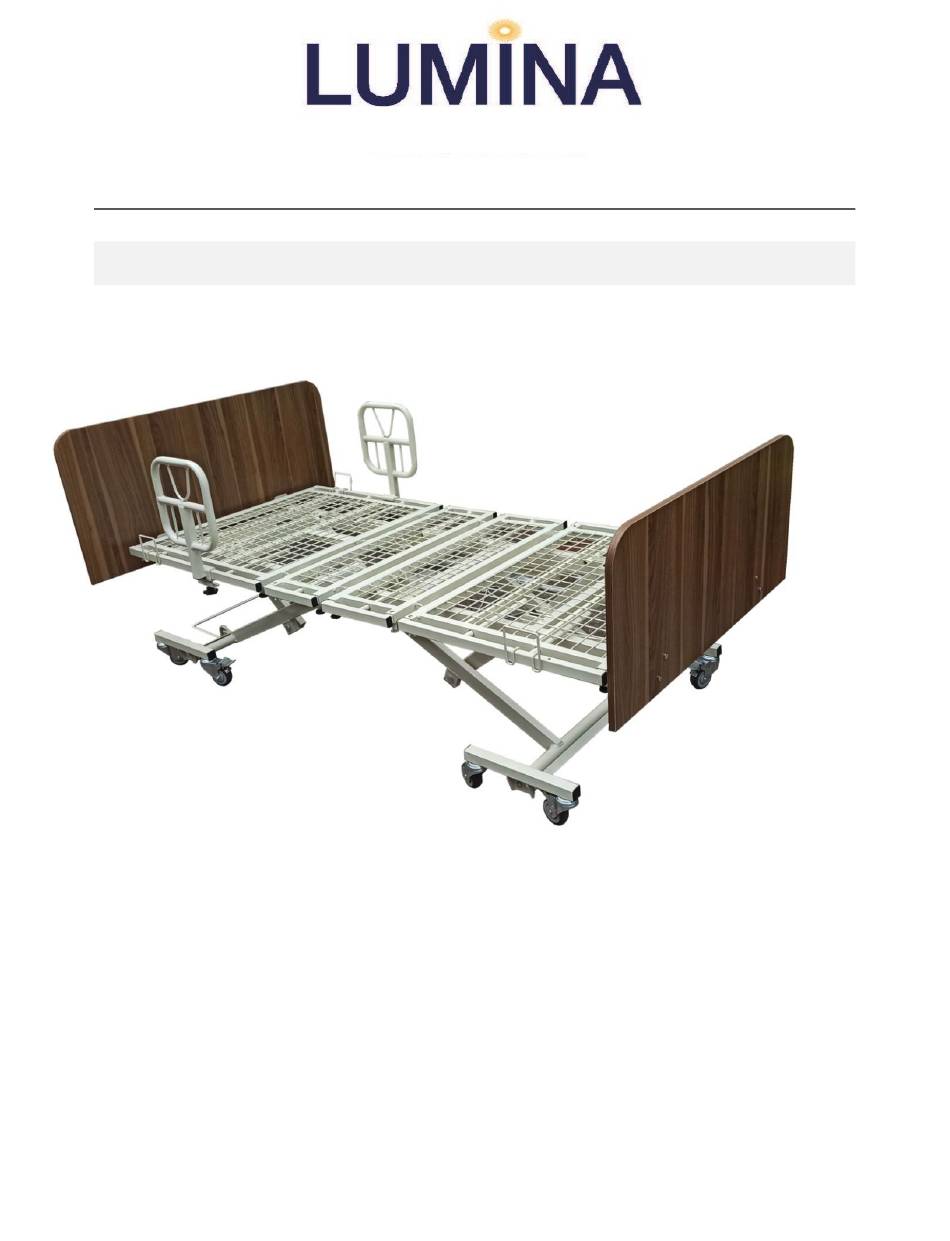

- Page 1 U SER MANUA L LUM-HOFF650 5 FUNCTION ELECTRIC BED MODEL # LUM-HOFF650 (WIDTH EXPANDS FROM 36” – 42” LENGTH EXPANDS 80”- 88” WEIGHT CAPACITY: 650 LBS ）...
- Page 2 info@luminadirectmedical.com TABLE OF CONTENTS PAGE 2 INTRODUCTION & PRODUCT FEATURES PAGE 3 PARTS LIST AND DESCRIPTION INSTALLING THE LENGTH EXTENSION FRAME PAGE 4 PAGE 5-6 INSTALLING BED BOARDS PAGE 7 CASTERS PAGE 7-8 BED WIDTH EXTENSION PAGE 8 BED LENGTH EXTENSION MATTRESS RETAINER PAGE9 PAGE9...

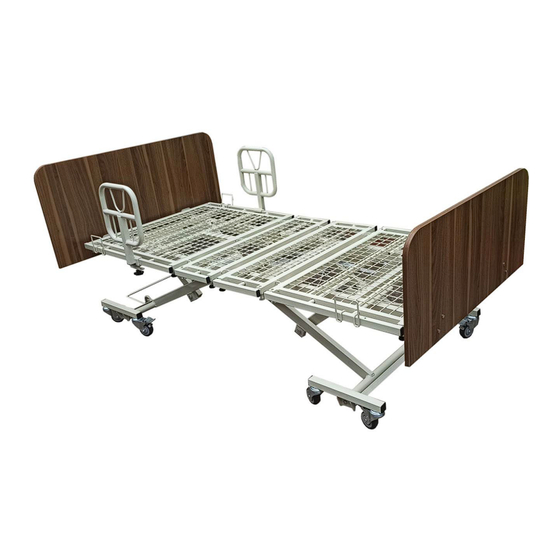

- Page 3 info@luminadirectmedical.com The Expandable Bed is a fully electric, versatile and multi-functional bed for Long Term Care, Hospital & Home Care settings. It expands in both the width (from 36” to 42”, and length (from 80” to 88”) which makes it ideal for standard, bariatric and tall patients.
- Page 4 info@luminadirectmedical.com PARTS LIST & DESCRIPTION IMPORTANT: Read this manual completely before setting up or operating this system and keep in a safe place for future reference. To avoid injury and for maximum safety, this system should only be installed by an authorized technician or dealer representative. Electric bed installation parts listed below as per Figure # 1 Bed frame board...
- Page 5 info@luminadirectmedical.com Installing the length extension frame 1.1. Insert extension frame (left) & extension frame (right) into the 60 x 30 mm rectangular bed frame tube. See Figure # 2 The extension frame tubes should face upward. Insert the extension frame, tighten the bolt to lock the extension frame, and then fix the plastic head bolt.
- Page 6 info@luminadirectmedical.com 2. Installing the bed boards 2.1 Raise the bed to a suitable height, then raise the back deck and foot deck. Match the bed board with the bed frame installation holes. Fasten by M8 bolt with φ 8 flat washer, as per Figure # 4. Install M8X40 (Tighten the screw.) Figure # 4 P a g e...
- Page 7 info@luminadirectmedical.com 2.2 Install the bed head board to the bed head frame, and bed foot board to the bed foot frame, as per Figure # 5. Figure # 5 2.3 Foldable bed head board installation as noted figure #6 Unfolded Status P a g e...
- Page 8 info@luminadirectmedical.com Folded Status Figure # 6 3. Casters There are 4 pcs. locking casters and 4 pcs. swivel casters per set. Step on the locking pedal (lower) to activate the locking position and step on the unlocking pedal (upper) to deactivate the locking system. See Figure # 7 & 8. Step on the pedal to lock Step on the pedal to the caster in place...
- Page 9 info@luminadirectmedical.com 4. Operation for bed surface extension frame 4.1 First, loosen the “Locking Bolt”. Then, pull the “Pulling Button” with one hand and pull out the extension frame until it clicks into your desired location hole (see 4.2 below). Tighten the “Locking Bolt”...
- Page 10 info@luminadirectmedical.com Figure # 10 5. Bed foot length extension frame Loosen the screw on the bed frame, and pull out the extension frame. Tighten the screw until the ideal length is selected, as per Figure # 11. Screw Figure # 11 6.
- Page 11 info@luminadirectmedical.com Figure # 12 7. Bumper Bar Installation Insert the two ends of the bumper bar into the two holes on the tube (see figures 13 and 14) Figure 13 Figure 14 10 | P a g e...
