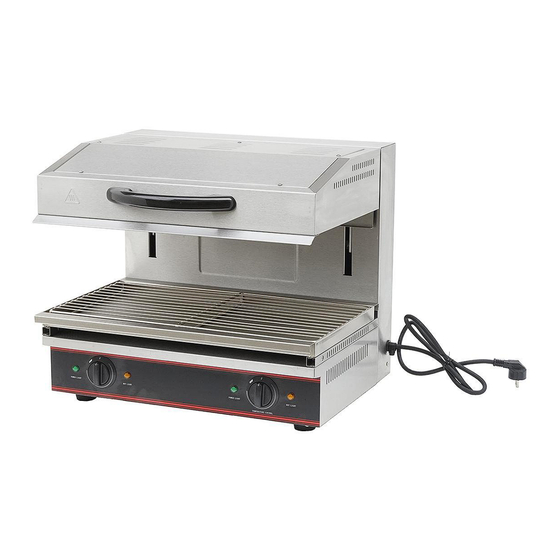

- Page 1 Salamander Grill Instruction Manual Model: ES-2800L/ES-4000L Please read this instruction manual carefully before operating this equipment...
- Page 2 FOR YOUR SAFETY This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.
-
Page 3: Circuit Diagram
STRUCTURE ES-2800L/ES4000L ES-5600L 1. BOTTOM TRUNK 2. HEATING INDICATOR 3. TEMPERATURE CONTROLLER 4. POWER INDICATOR 5. OIL RECEIVE TRAY 6. STAINLESS DROP PLATE 7. ELEVATING HANDLE 8. TOP TRUNK 9. TOP PLATE 10. BACK TRUNK 11. BACK BOARD 12. POWER CORD 13. - Page 4 Solid disassemble diagram for Maintenance 1. Bottom trunk 2. Bottom board 3. Ceramic base 4. Rubber foot 5. Screw M4×8 ES-2800L 6. Heating indicator 7. Screw M4×6 8. Temperature controller 9. Power indicator 10. Oil receive tray 11. Stainless drop plate 12.
- Page 5 Solid disassemble diagram List ES-2800L...
- Page 6 Solid disassemble diagram List ES-2800L...
- Page 7 Solid disassemble diagram List ES-4000L...
- Page 8 Solid disassemble diagram List ES-4000L...
- Page 9 Solid disassemble diagram List ES-5600L...
- Page 10 ▪ It is made of stainless steel and the drop plate can be pulled out and is easy to clean. ▪ ES-2800L has a temperature controller and a heating area; EB-600 and ES- 5600L have two temperature controllers and two independent heating areas.
- Page 11 ▪ It is made of stainless steel and the drop plate can be pulled out and is easy to clean. ▪ ES-2800L has a temperature controller and a heating area; EB-600 and ES- 5600L have two temperature controllers and two independent heating areas.
- Page 12 This product should be handled carefully and should not be placed upside down to avoid damage both outside and inside during transportation. The packaged machine should be put in a ventilated warehouse without caustic gas. If it needs to be stored in open air temporarily, prevention measures against rain is needed. 1.
- Page 13 ▪ Do not use any other power supply which is not supplied with the product. ▪ Do not use any main switches not coordinated with safety standards. F. Instructions: 1. Before using, check whether the power installation is correct to assure the supplied voltage is coordinated with the normal voltage.
-
Page 14: Troubleshooting
WARNING! Any refitting, incorrect installation, adjustment and maintenance may cause damage or personal injury. Please contact the supplier if you need to adjust or modify, this should be done by trained engineers. For your safety, do not put or store any flammable liquid, gas or other objects around the product. -
Page 15: Warranty Claims
Hamoki Ltd and upon proper installation and start-up in accordance with the instruction packet supplied with each unit) a one year parts warranty. Hamoki Ltd’s obligation under this warranty is limited to a period of one (1) year from the date of original installation. WARRANTY CLAIMS: All claims for parts must be made directly through the retailer in the first instance.
