Install Manual

Read before installing

The ecolink Gateway Provides remote access to ecolink Adapter through the internet and Ecoer Smart

Service (ESS) Pro

Must be installed by a trained, experienced technician. Read these instructions carefully. Failure to follow

these instructions can damage the Product or cause a hazardous condition.

Specifications

Model: ELG02

Operating Ambient Temperature: -13℉ to 167℉ (-25℃ to 75℃)

Operating Relative Humidity: 5% to 95% (non-condensing)

Power Adapter Rated Input Voltage: 100 VAC ~ 240 VAC @ 50 Hz/60 Hz

Power Adapter Output Voltage Range: 4.80 VDC ~ 5.20 VDC

Max Output Current: 2000mA

Maximum Number of Units: 5 per ecolink Gateway

A "Unit" is:

ecolink Adapter that is wired to the heating/cooling equipment.

ecolink Zone Panel wired by thermostats.

Need help

For more information about this Product please

visit www.ecoer.com

or call +1 (703) 348-2538 for technical support.

INSTALL MANUAL

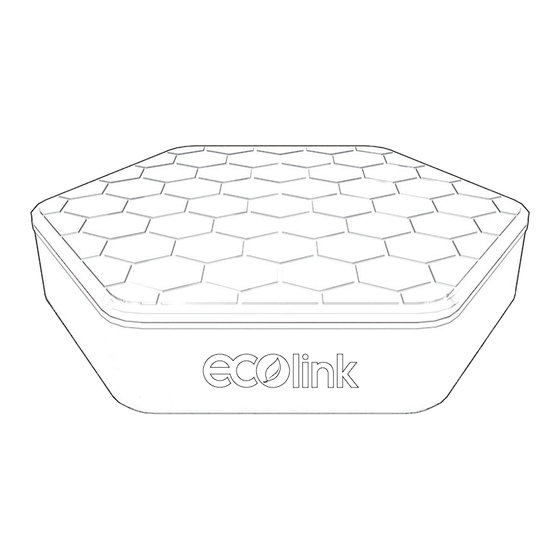

ecolink Gateway

Android

www.ecoer.com

IOS

Download the ESS Pro

Need help?

Do you have a question about the ecolink ELG02 and is the answer not in the manual?

Page 1 INSTALL MANUAL ecolink Gateway Read before installing The ecolink Gateway Provides remote access to ecolink Adapter through the internet and Ecoer Smart Service (ESS) Pro Must be installed by a trained, experienced technician. Read these instructions carefully. Failure to follow these instructions can damage the Product or cause a hazardous condition.
Page 2 LED BEHAVIOR Solid Blue: The Gateway starts to up. Blinking Blue: The Gateway is connected to Ecoer server and exchanging data with Adapter. Blinking Red: Connecting to Internet and logging in Ecoer server. Solid Red: The Gateway fail to connect to the...
Page 3 FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 8 inches during normal operation. Warning: Changes or modifications not expressly approved by ECOER INC could void the user's authority to operate the equipment.
Page 4 MAKING YOUR HOME GREEN & SMART Model: ELG02 Addr.: 43671 Trade Center Place, Suite 100 Dulles, VA 20166 Tel: (703) 348-2538 Website: www.ecoer.com...
