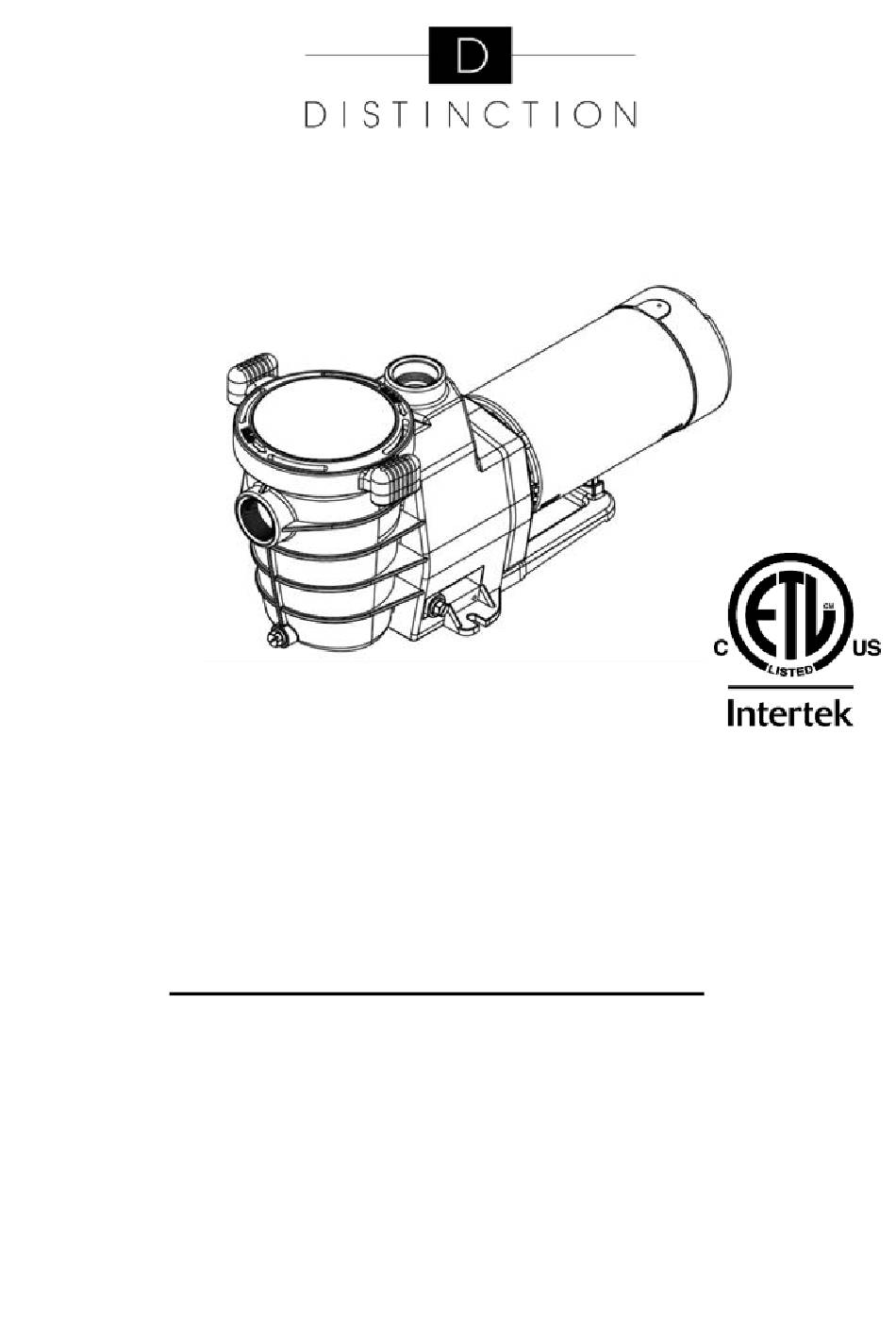

OWNER'S MANUAL
FPP-72767
MANUFACTURED BY:
NINGBO SPLASH POOL APPLICANCE CO., LTD
To prevent potential injury and to avoid unnecessary service calls, read this manual
carefully and completely.
SAVE THIS INSTRUCTION MANUAL
Use of appointed replacement parts voids warranty.
ATTENTION INSTALLER – THIS MANUAL CONTAINS IMPORTANT INFORMATION ABOUT THE
INSTALLATION, OPERATION, AND SAFE USE OF THIS PUMP THAT MUST BE FURNISHED TO THE END
USER OF THIS PRODUCT. FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS COULD RESULT IN
SERIOUS INJURIES.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Distinction FPP-72767 and is the answer not in the manual?

Questions and answers

Related Manuals for Ningbo Distinction FPP-72767

Summary of Contents for Ningbo Distinction FPP-72767

  • Page 1 OWNER’S MANUAL FPP-72767 MANUFACTURED BY: NINGBO SPLASH POOL APPLICANCE CO., LTD To prevent potential injury and to avoid unnecessary service calls, read this manual carefully and completely. SAVE THIS INSTRUCTION MANUAL Use of appointed replacement parts voids warranty. ATTENTION INSTALLER – THIS MANUAL CONTAINS IMPORTANT INFORMATION ABOUT THE INSTALLATION, OPERATION, AND SAFE USE OF THIS PUMP THAT MUST BE FURNISHED TO THE END USER OF THIS PRODUCT.

  • Page 2: Chapter One: Important Safety Instuctions

    Symbol means: will DANGER This symbol indicates that in case of failure it is a potential hazard: It cause severe personal injury or death or property damage. could WARNING This symbol indicates that in case of failure it is a potential hazard: It result in severe personal injury or death or property damage.

  • Page 3: Chapter Two: Installation Instructions

    WARNING Suction Entrapment Hazard. 11. Suction in a suction inlet and/or suction inlet cover, which are damaged, broken, cracked, missing, or unsecured cause severe injury and/or death due to the following entrapment hazards: Hair Entrapment- Hair can become entangled in suction inlet cover. Limb Entrapment- A limb inserted into an opening of a suction inlet or in a suction inlet cover that is damaged, broken, cracked, missing, or not securely attached can result in a mechanical bind or swelling of the limb.

  • Page 4: Chapter Three: Electrical

    WARNING This product should be installed and serviced only by a qualified professional. Pump Location DO NOT install pump in a damp or non-ventilated location. Keep motor clean. Pump motor requires free circulation of air for cooling. Pump Mounting Install pump on a firm, level base or pad to meet all local and national codes. Fasten pump to base or pad with screws or bolts to further reduce vibration and stress on pipe or hose joints.

  • Page 5: Chapter Four: Start-Up & Operation

    5. Match supply voltage to motor nameplate voltage. Insure that the electrical supply available agrees with the motor’s voltage, phase, and cycle, and that the wire size is adequate for the H.P. (KW) rating and distance from the power source. NOTE - All electrical wiring MUST be performed by a licensed electrician, and MUST conform to local codes and NEC regulations.

  • Page 6: Chapter Five: Maintenance

    WITHOUT WATER. Water acts as a coolant and lubricant for the mechanical shaft seal. WARNING If pump is being pressure tested (40 PSI MAXIMUM PRESSURE), be sure pressure has been released, using the filter manual air relief valve (not available on sand filter, only for cartridge filter), before removing strainer cover.

  • Page 7: Chapter Seven: Troubleshooting

    Storing Pump For Winterization WARNING To avoid dangerous or fatal electrical shock hazard, turn OFF power to motor before draining pump. Failure to disconnect power may result in serious personal injury or death. 1. Drain water level below all inlets to the pool. 2.

  • Page 8: Chapter Eight: Warranty

    Solution: Contact a qualified repair professional. a. If pump develops a vacuum, check for blocked suction line or dirty strainer basket. An air leak in the suction piping may be the cause. b. If pump does not develop a vacuum and pump has sufficient “priming water”: - Re-check strainer housing cover and all threaded connections for suction leaks.

  • Page 9: Chapter Nine: Pump Structure & Parts

    LIMITED WARRANTY To original purchasers of Distinction pumps and filters, the manufacturer warrants his products to be free from defects in materials and workmanship for a period of TWO (2) years from the date of purchase. Parts which fail or become defective during the warranty period, except as a result of freezing, negligence, improper installation, use, or care, shall be repaired or replaced at our option, without charge, within 90 days of the receipt of defective product, barring unforeseen delays.
  • Page 10 Pump models: FPP-72767 Ref. Part No. Description 647276571 Cover 65431042080 O-ring 647252704 Basket 647276501 Pump housing 65432040080 O-ring 648910604080 Diffuser 89106201 Impeller 65028026000 Seal assembly 65431121080 O-ring 648910602080 Pump cover 5225007000 Screw 3/8-16UNC*25.4mm 65244015000 Gasket M10 648910603080 Over cover 65023077000 1.5hp motor 5225008000 Screw 3/8-16UNC*50.8mm...
