SAS DRIVER ID LED Setup Manual

S
Information and Setup
SAS-Technologies RIVER D ED (DIL) is controlled by CAN and visually shows the driver´s ID D
during driving in varius colour´s outside on the car.
SETUP:
Setup begins by powering the DIL system, sending a Driver ID and using the magnetic rod
The WHITE marked area is a
The setup procedure is done for each Driver ID
Example: To set Driver ID 1

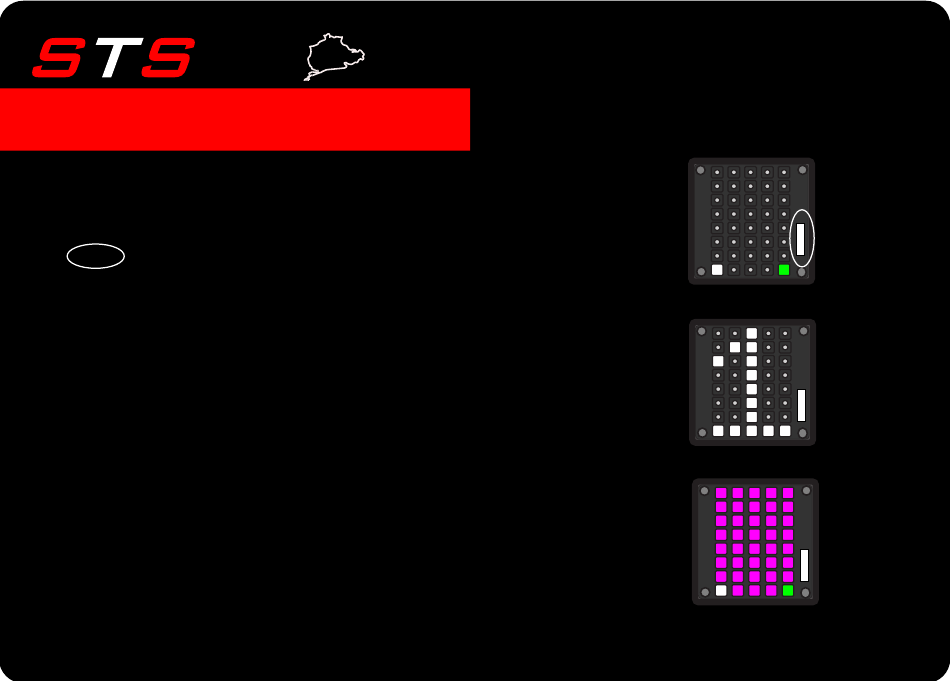

1. Select on the X2 Driver Switch, the Driver ID to setup, in this example, Driver ID 1
2. Hold the magnetic rod on the yellow marked area to the
The GREEN LED will light directly
3. Continue holding for 5 seconds
The WHITE LED will light
4. Now wave the magnetic rod over the white marked area to select a color
5. Once purple is selected, hold the magnetic rod on the white marked aera
to save this setup for Driver ID 1
the WHITE LED After removing the magnetic rod, the DIL will show the ID 1 and blink
6. Change the Driver ID to the next ID and repeat this procedure as needed
Colour´s are available order: BLUE / RED / GREEN / LIME / PURPLE / PETROL / WHITE / YELLOW and BLANK
