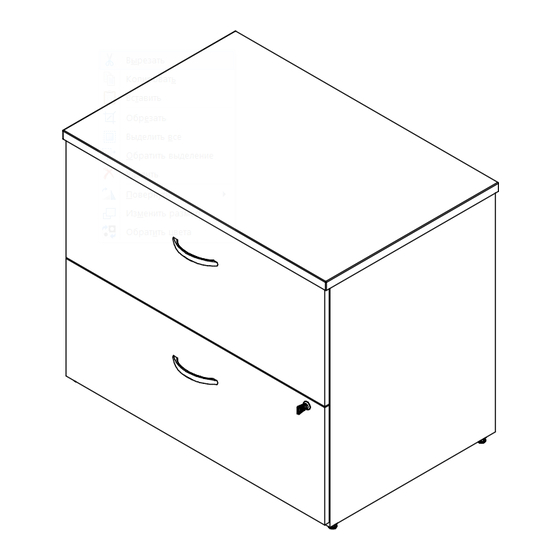

  • Page 1 Lateral File Lot Code # Part Number A176345E Keep manual for future reference.
  • Page 2 Get Ready to Assemble A176345E...

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION PLEASE READ WARNINGS Improper use can cause safety hazards, or damage to your furniture and household items. Warning Don't Why it's important Serious injury • • • Assemble following all instructions Do not load with a television Improper may occur.
  • Page 4 IMPORTANT SAFETY INFORMATION PLEASE READ WARNINGS Improper use can cause safety hazards, or damage to your furniture and household items. Por qué es Advertencia Hacer importante Se pueden • • • Ensamble siguiendo todas las No cargue con un televisor El ensamblaje, producir instrucciones utilizando todas...
  • Page 5 IMPORTANT SAFETY INFORMATION PLEASE READ WARNINGS Improper use can cause safety hazards, or damage to your furniture and household items. Pourquoi c'est Avertissement Faire Ne le fais pas important Des blessures • • • Assemblez en suivant toutes les Ne chargez pas avec un Un assemblage, graves instructions en utilisant toutes...
  • Page 6 Get to know your Boards A176345E Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 7 Get to know your Fasteners A176345E Fasteners are shown actual size. [ 14 ] H181468US [ 14 ] H72988 KD Bolt KD Cam3000 [ 24 ] H38169 [ 8 ] H150333 #8 x 1-1/2" Wood Dowel 8 x 30 [ 32 ] H192100 [ 12 ] H146988...
  • Page 8 Get to know your Hardware A176345E Hardware not to scale. [ 2 ] H128158 [ 4 ] H209601 Handle Leveler [ 1 ] H184145 [ 4 ] H146990 Anti Tip Mechanism Drawer Bracket [ 2 ] H184144 H94928 [ 4 ] File Extrusion Anti Tip Wedge 12"...
  • Page 9 Get to know your Hardware A176345E Hardware not to scale. [ 1 ] Z82396 Cam Lock Assy [ 1 ] Z169029 DWR Bracket [ 1 ] Z102069 Lock Arm [ 1 ] Z122278 DWR Bracket Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 10 STEP Preprare Panels A176345E [ 12 ] H146988 Euro 13/14mm H146987 [ 2 ] Front File Extrusion [ 6 ] H192100 " (834mm) #8 x 1/2" [ 4 ] H146990 Drawer Bracket H192100 H192100 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 11 STEP Prepare Panel A176345E [ 2 ] [ 1 ] Z122278 H192100 #8 x 1/2" DWR Bracket Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 12 STEP Assemble Drawers A176345E H128624 [ 8 ] (Black) #8 x .5" Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 13 STEP Assemble Drawers A176345E [ 8 ] H150333 #8 x 1-1/2" Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 14 STEP Attach Hardware A176345E [ 4 ] [ 2 ] H192100 H173172 #8 x 1/2" Drawer Support " (338mm) Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 15 STEP Separate Slides A176345E Slides Must Be Separated Before Assembly. After Separated, Set Aside Until Needed for Assembly. Las diapositivas deben separarse antes del montaje. Después de la separación, déjelo a un lado hasta que sea necesario. Les glissières doivent être séparées avant l'assemblage. Après la séparation, mettez de côté...
  • Page 16 STEP Attach Hardware A176345E [ 12 ] H192100 14" Slide Runner #8 x 1/2" Q214908 [ 4 ] Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 17 STEP Attach Hardware A176345E [ 4 ] [ 2 ] H108982 H128158 [ 1 ] Z82396 M4 x 20mm Handle Cam Lock Assy [ 1 ] Z102069 Lock Arm Unlock Abra Deverouillage Lock Cierre con llave Verouillage Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 18 STEP Attach Hardware A176345E [ 2 ] H95736 H94928 [ 4 ] File Extrusion File Extrusion " (830mm) 12" (304mm) [ 4 ] H89793 File Bar 12-1/2" (318mm) Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 19 STEP Prepare Panel A176345E [ 2 ] [ 4 ] H72988 H192100 [ 4 ] H38169 #8 x 1/2" KD Bolt Wood Dowel 8 x 30 [ 1 ] H184145 [ 2 ] H209601 Anti Tip Mechanism Leveler H192100 Orientation Orientación L’orientation Safety glasses...
  • Page 20 STEP Prepare Panel A176345E [ 6 ] H195734 M6.3 X 13MM 14" Slide Mount Q214908 [ 2 ] Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 21 STEP Prepare Panel A176345E [ 1 ] Z169029 [ 2 ] H192100 [ 4 ] H38169 #8 x 1/2" Wood Dowel 8 x 30 DWR Bracket [ 2 ] [ 4 ] H209601 H72988 KD Bolt Leveler H192100 Safety glasses Gafas de seguridad Lunettes de protection Orientation...
  • Page 22 STEP Prepare Panel A176345E [ 6 ] H195734 M6.3 X 13MM 14" Slide Mount Q214908 [ 2 ] Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 23 STEP Prepare Panels A176345E [ 16 ] H38169 Wood Dowel 8 x 30 Safety glasses Gafas de seguridad Lunettes de protection Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 24 STEP Assemble Panels A176345E Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 25 STEP Assemble Panels A176345E [ 4 ] H181468US KD Cam3000 190° Minimum Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 26 STEP Assemble Panels A176345E [ 4 ] H181468US KD Cam3000 190° Minimum Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 27 STEP Prepare Panel A176345E [ 6 ] H72988 KD Bolt Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 28 STEP Assemble Panels A176345E [ 6 ] H181468US KD Cam3000 190° Minimum Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 29 STEP Install Lower Drawer A176345E Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 30 STEP Attach Hardware A176345E [ 2 ] H192100 #8 x 1/2" [ 1 ] H184144 Anti Tip Wedge Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 31 STEP Install Upper Drawer A176345E Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 32 STEP Attach Hardware A176345E [ 2 ] H192100 #8 x 1/2" [ 1 ] H184144 Anti Tip Wedge Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 33 STEP Drawer Adjustment A176345E DRAWER FRONT VIEW REQUIRED TOOL: PHILLIPS SCREWDRIVER HERRAMIENTA REQUERIDA: DESTORNILLADOR PHILLIPS OUTIL REQUIS: TOURNEVIS CRUCIFORME 1. LOOSEN SCREWS. 2. ADJUST DRAWER FRONTS. 3. TIGHTEN SCREWS. 1. Afloje los tornillos 2. Ajustar frentes de cajón 3. Apriete los tornillos 1.
  • Page 34 STEP Cleaning and Maximum Loading A176345E Gently clean surfaces with a damp sponge eraser. File drawers hold letter, legal or A4 size files. Las gavetas para archivador reciben archivos de tamaño carta, legal o A4. Les tiroirs a dossiers peuvent accueillir des dossiers de format lettre, grand format ou A4.
  • Page 35 PARTS LIST A176345E WC48554C WC12954C WC24454C A [1] W182135 A [1] W182073 A [1] W182081 B [1] W195647 B [1] W195645 B [1] W195647 C [1] W195648 C [1] W195646 C [1] W195648 D [1] W182076 D [1] W182076 D [1] W182076 E [1] W182123 E [1] W182077 E [1] W182123...

  • Page 36: Maintenance

    Maintenance A176345E Maintenance Tip It may be necessary to periodically open each drawer to its full extension. This will reset the drawer slides and allow for continued smooth operation. Información de Mantenimiento Puede ser necesario el abrir cada gaveta a su máxima extención periodicamente. Este procedimiento ayuda a recomponer las correderas de las gavetas, asegurando una operación libre.

  • Page 37: Drawer Removal

    Drawer Removal A176345E Drawer Removal (if required) Quitado de Gaveta (si es necesario) retrait du tiroir (si necessaire) Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 38 Drawer Removal A176345E Drawer Removal (if required) Quitado de Gaveta (si es necesario) retrait du tiroir (si necessaire) Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.

This manual is also suitable for:

Wc12954cWc24454cWc48554c
