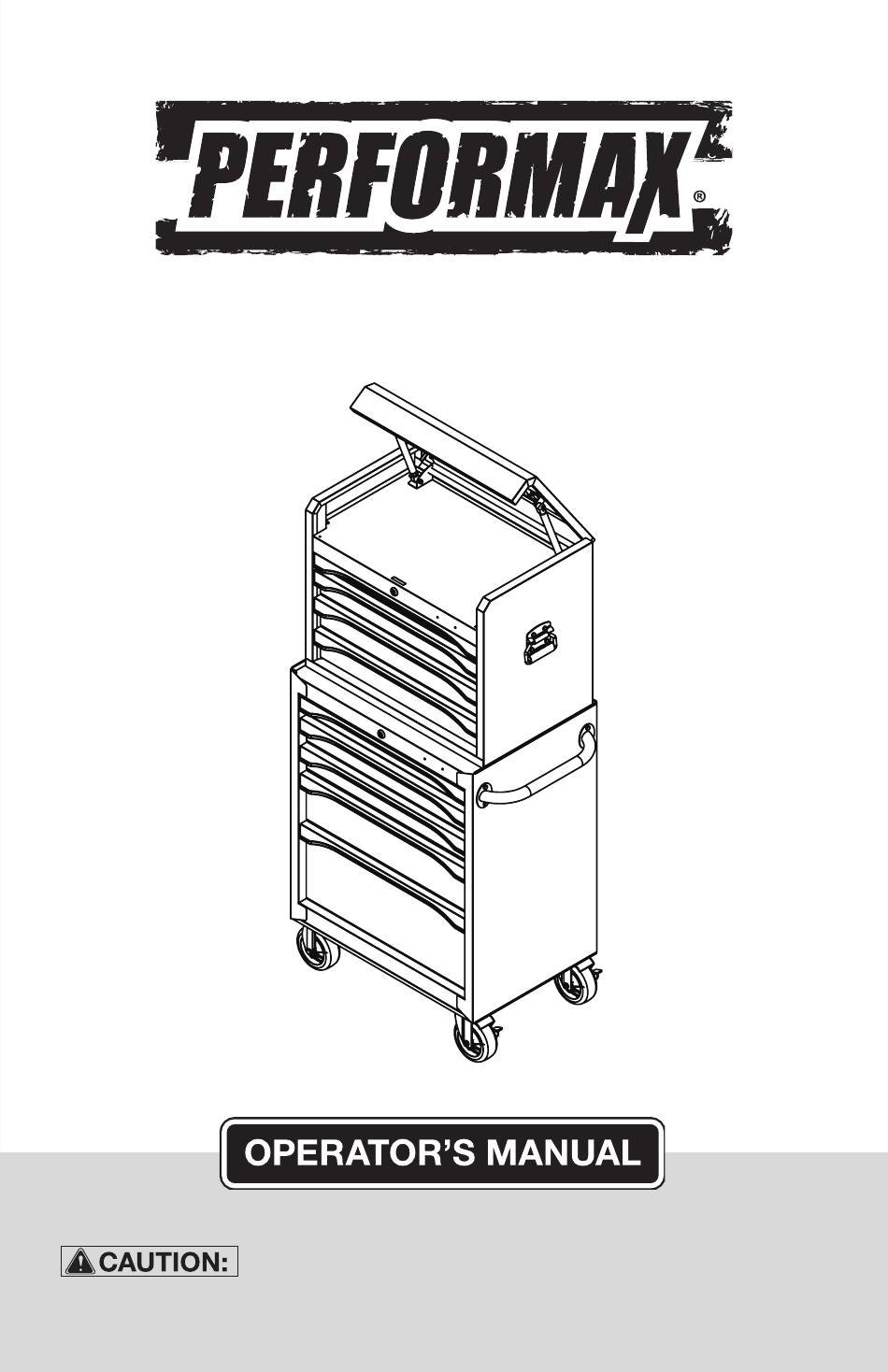

- Page 1 26" x 16" 4-Drawer Tool Chest and 26" x 18" 5-Drawer Tool Cabinet SKU# 245-2170/245-2171 To Reduce The Risk Of Injury, User Must Read And Understand Operator’s Manual. Save These Instructions For Future Reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Symbols ................. 3 Safety Instructions ..............4 Parts List ................... 5 Assembly ................... 6 Operation ................... 7 Maintenance and Safety ............8 WARNING Cancer and Reproductive Harm – www.P65Warnings.ca.gov Page 2... -
Page 3: Safety Symbols
SAFETY SYMBOLS Model #: _______________________________ CAUTION: Place of purchase: ______________________ 1. Read and follow all safety and assembly instructions before using this product for the first time. Date of purchase: _______________________ 2. Fill in the following information and retain the manual for future reference: Receipt # of purchase: __________________ Do not open more than one drawer at a time. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and the explanations with them, deserve your careful attention and understanding. The symbol warnings do not by themselves eliminate any danger. The instructions and warnings they give are no substitute for proper accident prevention measures. -
Page 5: Parts List
PARTS LIST For service regarding parts, assembly or warranty information, please call: 1-800-459-4409. The keys are taped to bottom The keys are taped to the top of the drawer of the chest. caster carton, which is placed in the bottom drawer of the cabinet. Ref# Description Part# Ref# Description... -
Page 6: Assembly
ASSEMBLY INSTALL THE CASTERS NECESSARY TOOLS REQUIRED FOR ASSEMBLY NOTE: Two or more people may be required • 10 mm socket to complete this step. • 14 mm socket Carefully lay the bottom cabinet on its • Extension ratchet back using a soft mat under the back for protection. -
Page 7: Operation
OPERATION TO REMOVE DRAWERS TO REPLACE DRAWERS Pull the drawer out so it is almost fully Extend the drawer slides from the tool extended. PUSH UP on the black release chest or cabinet. Insert the brackets on lever on one side, while PULLING DOWN each side of the drawer into the slots in on the black release lever on the other side. -
Page 8: Maintenance And Safety
MAINTENANCE AND SAFETY MAINTENANCE SAFETY Lubricate the casters with high quality bearing grease once a year. WARNING: Close the cover Lubricate the slides twice a year with and lock the drawers before moving a product like WD40 or other quality this product. - Page 9 MAINTENANCE AND SAFETY WARNING: DO NOT tow with power equipment. The product could tip, which may cause personal injury or product damage. WARNING: DO NOT alter this product in any manner. For example, do not weld external lockbars or attach electrical equipment.
- Page 10 NOTES Page 10...
- Page 11 26" Tool Chest & Cabinet LIMITED 5 YEAR WARRANTY PERFORMAX Tool Cabinets and Chests have been manufactured to the highest ® standards of quality and workmanship and are warranted to be free from defects in materials and workmanship under normal use for 5 years. If any part of the product is found to be defective during normal use, the defective product or part will be replaced at our discretion.
- Page 12 ©2020 Menard, Inc., Eau Claire, WI 54703 12/2020...
