- Page 1 User Manual, Operating Instructions and Specifications SOU250 Manual Squeeze Off Tool Pipe Range: 180 – 250mm PE PIPE SQUEEZE OFF • • • • INNOVATION DESIGN MANUFACTURE SUPPLY...
-
Page 2: Product Description
PRODUCT DESCRIPTION The Hy-Ram SOU250 Squeeze Off Unit has the facility to enable four simultaneous Squeeze points to be executed. The ‘A’ Frame assembly provides the hydraulic power to squeeze the pipe to the optimum compression, (squeeze gap set by pipe stop), then the Top and Bottom Beams are very simply mechanically locked together. -
Page 3: Health And Safety Notes
Explains additional or helpful information. DESCRIPTION This Hy-Ram SOU250 Squeeze Off Unit has the facility to enable four simultaneous Squeeze points to be executed. The ‘A’ Frame assembly provides the hydraulic power to squeeze the pipe to the optimum compression, (squeeze gap set by pipe stop), then the Top and Bottom Beams are very simply mechanically locked together. -
Page 4: Assembly And Usage
ASSEMBLY AND USAGE SOU 250 SQUEEZE OFF UNIT Component List: 1 x Hydraulic Hand Pump 1 x ‘A’ Frame Assembly comprising Hydraulic Cylinder and Hoses 1 x Top Beam 1 x Bottom Beam 1 x Pair of stops diameter/SDR to suit pipe to be squeezed Dependant on specified requirements, the equipment kit may contain up to 6 x top beams, 6 x bottom beams and 6 x pairs of stops. - Page 5 Mechanically lock the Top Beam to the Bottom Beam by tightening the Cap Head Screws provided (C1) through the stops into the Bottom Beam. The Beams are now mechanically locked together. (Figure 5.0). Note: The correct Bolt length should be use with the relevant stop sizes! Thread engagement should be a MINIMUM of 1.5 times the Bolt Diameter in the Bottom Beam.
- Page 6 Figure 1.0 – Install Top Beam Then Lower Figure 2.0 – Install Bottom Beam Onto Pipe Figure 3.0 – Hydraulic Connection Figure 4.0 – Hydraulic Squeeze Off Figure 5.0 – Mechanically Lock Top Beam Figure 6.0 – Expand ‘A’ Frame & Remove To Bottom Beam From Beam Assembly Figure 7.0 –...
-
Page 7: Maintenance
There are no internal wearing parts for the user to change. Faults or problems should be reported to Hy-Ram Engineering Co Ltd stating the Serial Number and the size of the machine. Any alteration will leave the guarantee null and void... -
Page 8: Ec Declaration Of Conformity
Machine description: Squeeze Off Unit Make: Hy-Ram Type: SOU 250 Serial number: ______________ Year of construction: _____________ Manufactured by: Hy-Ram Engineering Co Ltd. Pelham Street Mansfield Nottinghamshire NG18 2EY This machinery has been designed and manufactured in accordance with the following transposed harmonised European standards. - Page 9 Warranty Information. Extent of Warranty. Hy-Ram Engineering Co Ltd warrants to the end-user customer that its products will be free from defects in materials and workmanship, for six months after the date of purchase by the end-user customer, subject to providing proof of purchase.
- Page 10 Hy-Ram Engineering Co Ltd’ warranty covers only those defects which arise as a result of normal use of the product, and this warranty shall only apply in the following circumstances: (a) All the instructions contained in the operating manual have been complied with (b) And none of the following apply: Improper or inadequate maintenance;...
- Page 11 ................... Name & address ................... Of purchaser ..................................Type of tool ................... Serial number ................... For Service and repair please contact: Hy-Ram Mansfield Pelham Street Mansfield Nottinghamshire NG18 2EY Tel: 01623 422982 Fax: 01623 661022 Page 11 of 11...

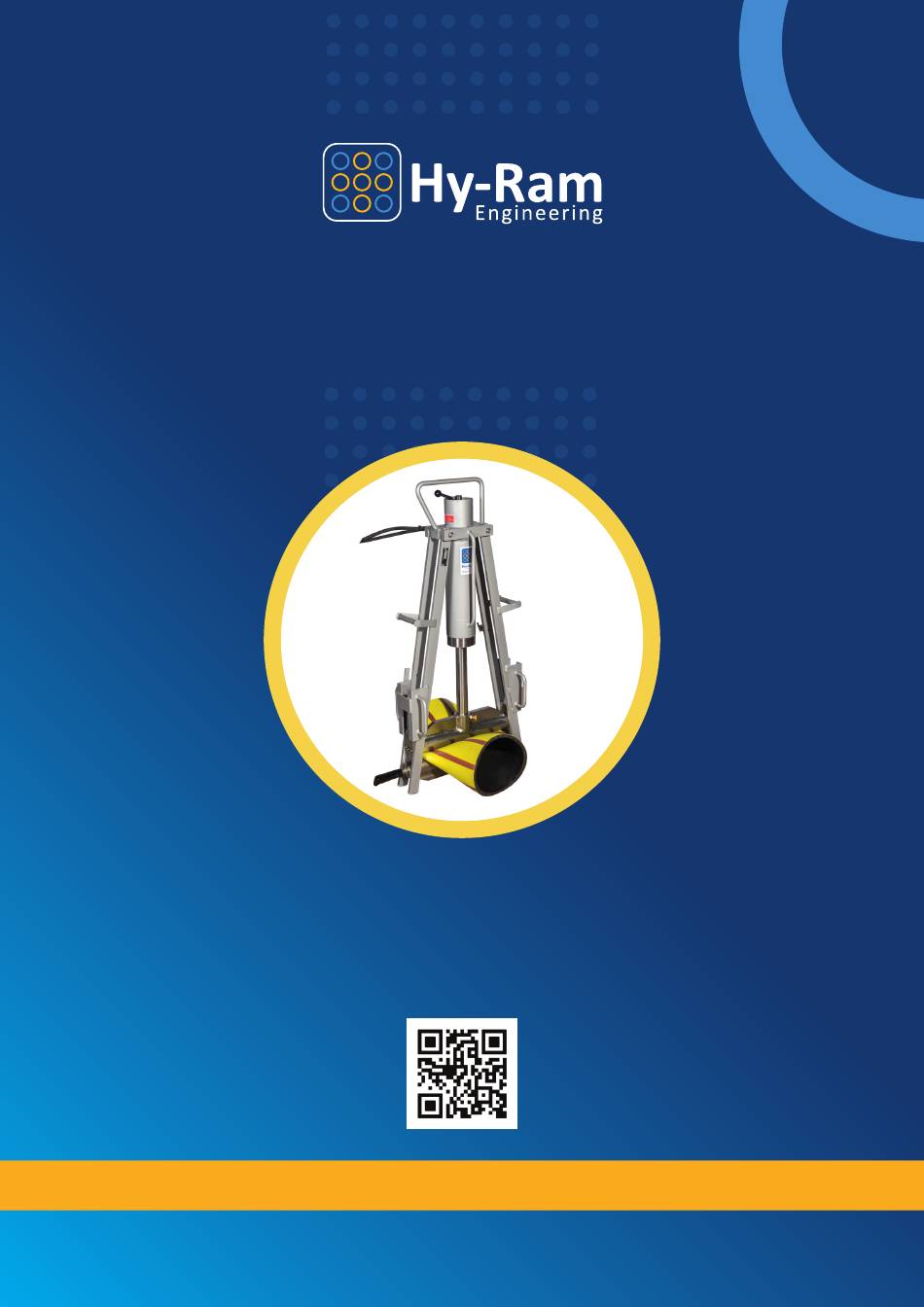

- Page 12 For Sales, Hire and Repair support contact our admin team or scan the QR code for further details www.hyram.com +44 (0) 1623 422982 enquiries@hyram.com Head Office Mansfield (Hire & Repair) Bury (Hire & Repair) Enfield (Hire & Repair) Pelham Street Unit 5 Unit 18 Unit 2...
