JBL A.I.M. ACOUSTICS | 7CH MIXER WITH EFFECTS | POWERFUL APP CONTROL
PRX ONE INSTALL ADAPTER BRACKET KIT
INST ALL ADAPTER BRACKET KIT
Assembly & Bracket Installation Guide
ASSEMBL Y & BRACKET INST ALLA TION GUIDE

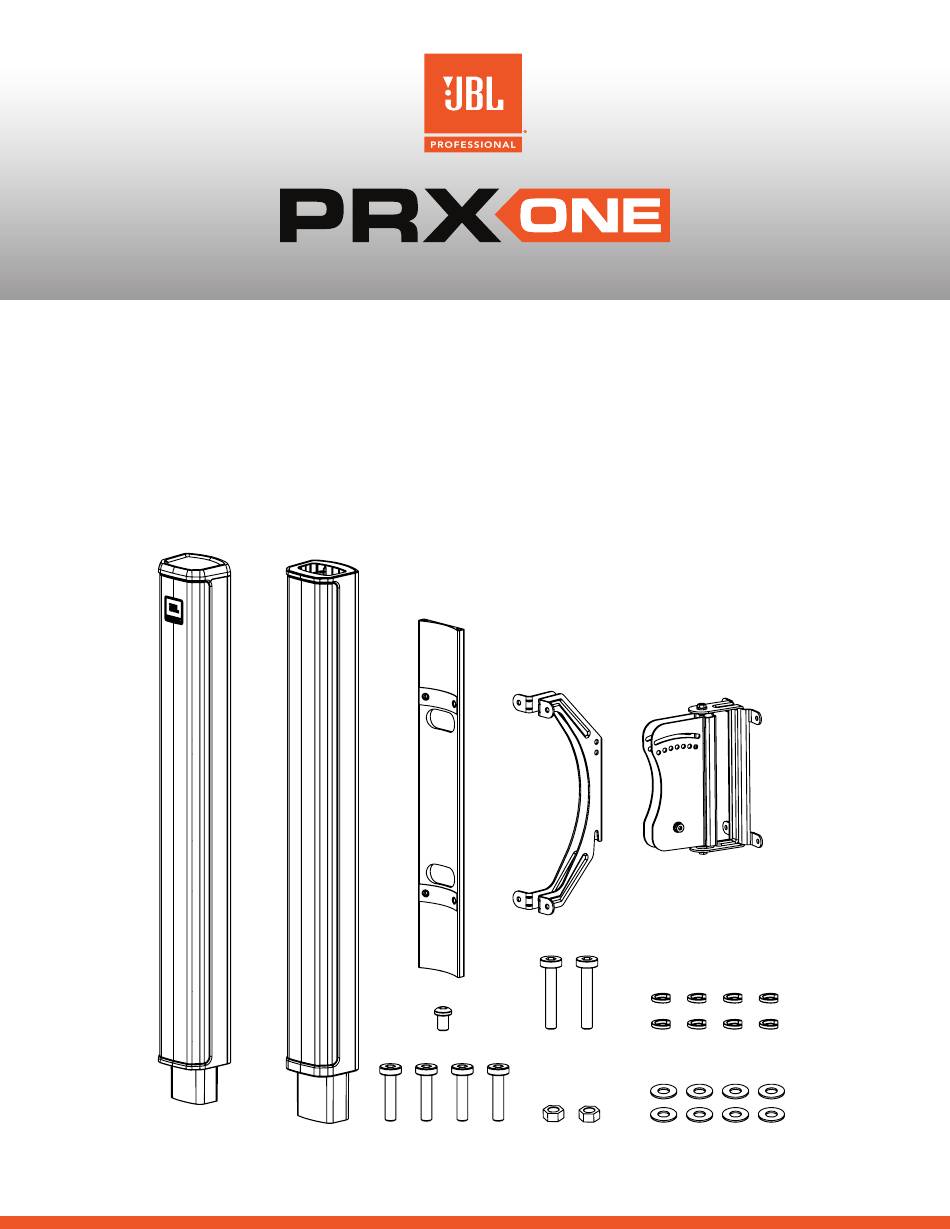

INCLUDED:
Top
Array
INCLUDED:
Bottom
Array
Connection
Plate
M6-L9
M6-L27
Array
Swivel-Tilt
Bracket
Wall Bracket
M6-L36
Lockwashers
Flatwashers
Nuts-M6
Advertisement
Related Manuals for JBL PRX ONE
Summary of Contents for JBL PRX ONE
- Page 1 JBL A.I.M. ACOUSTICS | 7CH MIXER WITH EFFECTS | POWERFUL APP CONTROL PRX ONE INSTALL ADAPTER BRACKET KIT INST ALL ADAPTER BRACKET KIT Assembly & Bracket Installation Guide ASSEMBL Y & BRACKET INST ALLA TION GUIDE INCLUDED: INCLUDED: Bottom Array...
-
Page 2: Wall Surface Mounting
PRX ONE-Install Adapter Bracket Kit Assembly & Bracket Installation Guide – Page 2 WALL SURFACE MOUNTING Note that the BRACKET ASSEMBLY consists of an ARRAY BRACKET and a WALL BRACKET. 1) RUN WIRING -- Run the wiring from the power amplifier to the location desired for mounting the JBL PRX ONE Array speaker system. - Page 3 PRX ONE-Install Adapter Bracket Kit Assembly & Bracket Installation Guide – Page 3 3) ORIENTING TOP & BOTTOM ARRAY This drawing shows the proper orientation of the two speaker modules, where the connection plate attaches and where the wall bracket attaches (onto the connection plate).
- Page 4 PRX ONE-Install Adapter Bracket Kit Assembly & Bracket Installation Guide – Page 4 4) CONNECT SPEAKER MODULES (Array) TOGETHER VIA CONNECTION PLATE Attach CONNECTION PLATE to the TOP AND BOTTOM ARRAY , as shown together Attach Array Bracket to the 4 indicated threaded points on the TOP AND BOTTOM ARRAY 's rear cabinet, using the included M6-27L (6 mm diameter, 27 mm long) bolts, with lock and flat washers.
- Page 5 PRX ONE-Install Adapter Bracket Kit Assembly & Bracket Installation Guide – Page 5 6) SLIDE ARRAY WITH ARRAY BRACKET ONTO WALL BRACKET Once the wall mount has been attached to the wall and Array mount has been attached to the Array, loosely install the M6-L36 PIVOT BOLT (bolt, lock washer and flat washer on one side and flat washer, lock washer &...
- Page 6 Maximum Swivel Angles before Wall Interference – The bracket swivels a full 90 degrees from side-to-side. However, when mounting the PRX ONE onto a wall, the side-to-side swivel is limited by the end of the speaker encountering the wall. The maximum swivel angle depends on the up/ down tilt angle setting.
- Page 7 PRX ONE-Install Adapter Bracket kit Assembly & Bracket Installation Guide – Page 7 8) Install Adapter to Array Insert Array adapter to the Bottom array. Once you hear a click, this indicates a secure installation Top Array For safty cable...
- Page 8 PRX ONE-Install Adapter Bracket Kit Assembly & Bracket Installation Guide – Page 8 Final installation diagram Wall +15° 0° -15°...
