Panasonic MS-DP1-F Series Instruction Manual

INSTRUCTION
MANUAL
Flat Attachment For DP-100-M Type
MJE-MSDP1F No.0101-61V
Thank you very much for purchasing Panasonic
products. Read this Instruction Manual carefully
and thoroughly for the correct and optimum use of
this product. Kindly keep this manual in a conve-
nient place for quick reference.

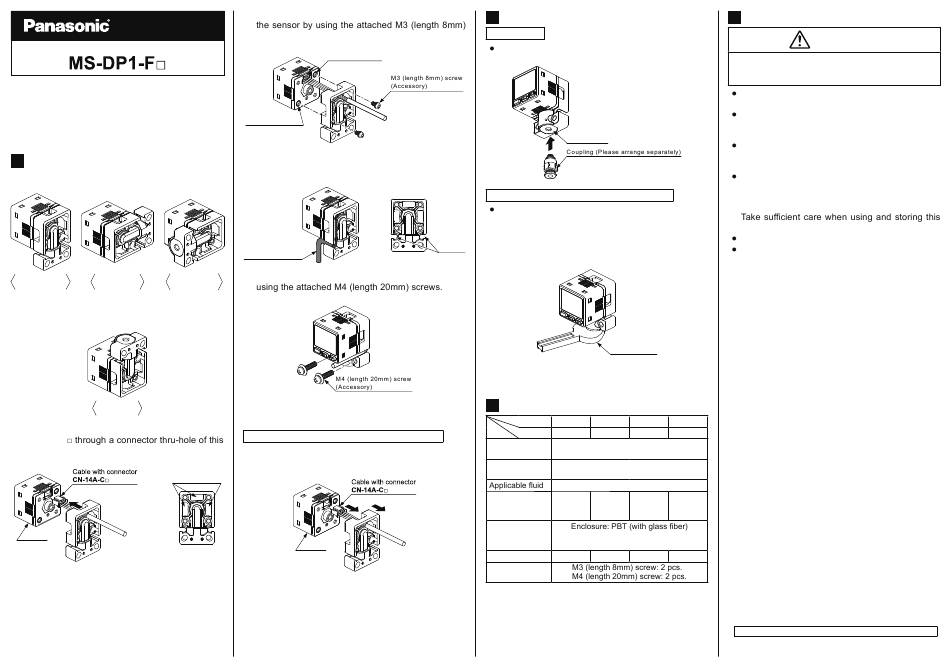

1 MOUNTING
1. Decide the direction of this product to mount with
the sensor.
Pressure port Pressure port Pressure port
faces leftward faces rightward
faces downward
Note: It is not possible to mount this product such that the
pressure port faces upward.
Incorrect
Pressure port
faces upward
2. Lead the connector of cable with connector
CN-14A-C
product, and plug it into the connector area of
the sensor.
Connector thru-holes
Sensor
3. Mount this product with the M3 female threads of
screws.
The tightening torque should be 0.5N·m or less.
M3 female thread
M3 female thread
4. Decide the direction to pull out the cable with con-
nector, and fit the cable in a side groove of this
product.
Cable with connector
5. Mount this product with the mounting surface by
The tightening torque should be 1.2N·m or less.
Note: Take care that if the cable with connector is sticking out of
the side groove of this product when mounting, the cable
may disconnected.
When dismounting the cable with connector
1. Dismount this product from the sensor.
2. Pull out the connector while holding the release le-
ver of cable with connector.
1
2
Sensor
Note: Take care that if the cable with connector is dismounted by
force, the cable may disconnected or the connector may
break.
PIPING
2
MS-DP1-FM
The tightening torque should be 1N·m or less
when connecting a coupling to the pressure port.
Pressure port
MS-DP1-FR, MS-DP1-FE, and MS-DP1-FN
When connecting the coupling to the pressure port,
hold the pressure port with a 14mm spanner and
make sure that the tightening torque is 9.8N·m or
less.
Grooves
In addition, in order to prevent any leakage, wind a
sealing tape on the coupling when connecting.
14mm spanner
Note: Do not tighten the pressure port by holding the product with
the spanner.
It may cause the product breakage.
3 SPECIFICATIONS
Type M5 Rc 1 /
8
Item Model No. MS-DP1-FM MS-DP1-FR MS-DP1-FE MS-DP1-FN
Rated pressure
–0.1 to +1.0MPa
range
Pressure
1.5MPa
withstandability
Non-corrosive gas
M5
Pressure port female Rc 1 /
8
screw
Material Pressure port: SUS303
O-ring: H-NBR
Weight Approx. 15g Approx. 25g Approx. 25g Approx. 25g
Accessories
CAUTIONS
4
WARNING
This product is designed for use with non-corro-
sive gas. It cannot be used for liquid or corrosive
gas.
This product has been developed / produced for
industrial use.
Make sure to mount this product with the sensor
properly. If it is not mounted properly, air leak-
age may occur.
Take care that the excessive mounting and dis-
mounting of this product may cause deterioration
of the O-ring.
If you touch the O-ring of this product, or any
scratch or dust, etc. is attached to it, air leakage
may occur and the sensing performance may
deteriorate.
product.
Avoid dust, dirt, and steam.
Take care that the sensor does not come in con-
tact with water, oil, grease, or organic solvents,
such as, thinner, etc.
G 1 / NPT 1 /
8 8
G 1 / NPT 1 /
8 8
female female
screw screw
Panasonic Industry Co., Ltd.
1006, Oaza Kadoma, Kadoma-shi, Osaka 571-8506, Japan
https://industry.panasonic.com/
Please visit our website for inquiries and about our sales network.
Panasonic Industry Co., Ltd. 2024
April, 2024 PRINTED IN JAPAN
