Pandora BT-02 Quick Start Manual

Peripheral devices, designed to expand the functional of the Pandora security system or to work separately
with the direct control by the mobile application Pandora Relay (iOS/Android).
Available functions of the system: LIN - digital control of the engine heaters, IN BT1 / IN BT2 - programmable
inputs, CH BLE R1 - programmable built-in relay.
Available functions of the application: CH BLE R1 - constant or timed (1 - 60 sec) control of the built-in relay.
DO NOT SHIELD!
Antenna 2,4 GHz
4
9 10 11
SPECIFICATION
Nominal voltage: +12V
Current consupmtion of the relay: <1mA
Switching current of the built-in relay:
min 10mA, nom 1A, max 2A
2,4 GHz radio protocol: Bluetooth 4.2 Low Energy
Degree of protection: IP64
Operating temperatures: from -40°C to +85°C
Dimensions: 39x16x13
PROGRAMMING
1. Enter the programming level
or use the «Pairing» function in the Pandora Specialist mobile app (go to «Advanced mounting»->
«Bluetooth»-> «Pairing, unpairing devices»).
2. Connect the wire 1 (red) to a reliable +12V power supply.
3. Connect the wire 7 (black) with the wire
of a vehicle.
4. The successfull pairing will be con rmed by the sound signal of the Siren/Beeper, or by a request to pair
the device in the mobile app Pandora Relay.
5. Disconnect the wire
!
THE RADIO RELAY COULD BE PAIRED WITH ONLY ONE SECURITY SYSTEM OR A SMARTPHONE.
1
red
2
brown
3
white
4
green/black
5
green/red
5 6
6
green
7
black
8
green/yellow
9
blue/black
10
blue/red
11
blue
10.6 (see «Programming table» section of the system manual)
8 (green/yellow), insulate all unused wires.
COMPATIBILITY
The BT-02 is fully compatible with Pandora
security systems with Bluetooth modem
rmware v4.11 and higher: Pandora Elite
v.2, Pandora Smart Pro v.3.
8 (green/yellow). Connect them to the grounded spot

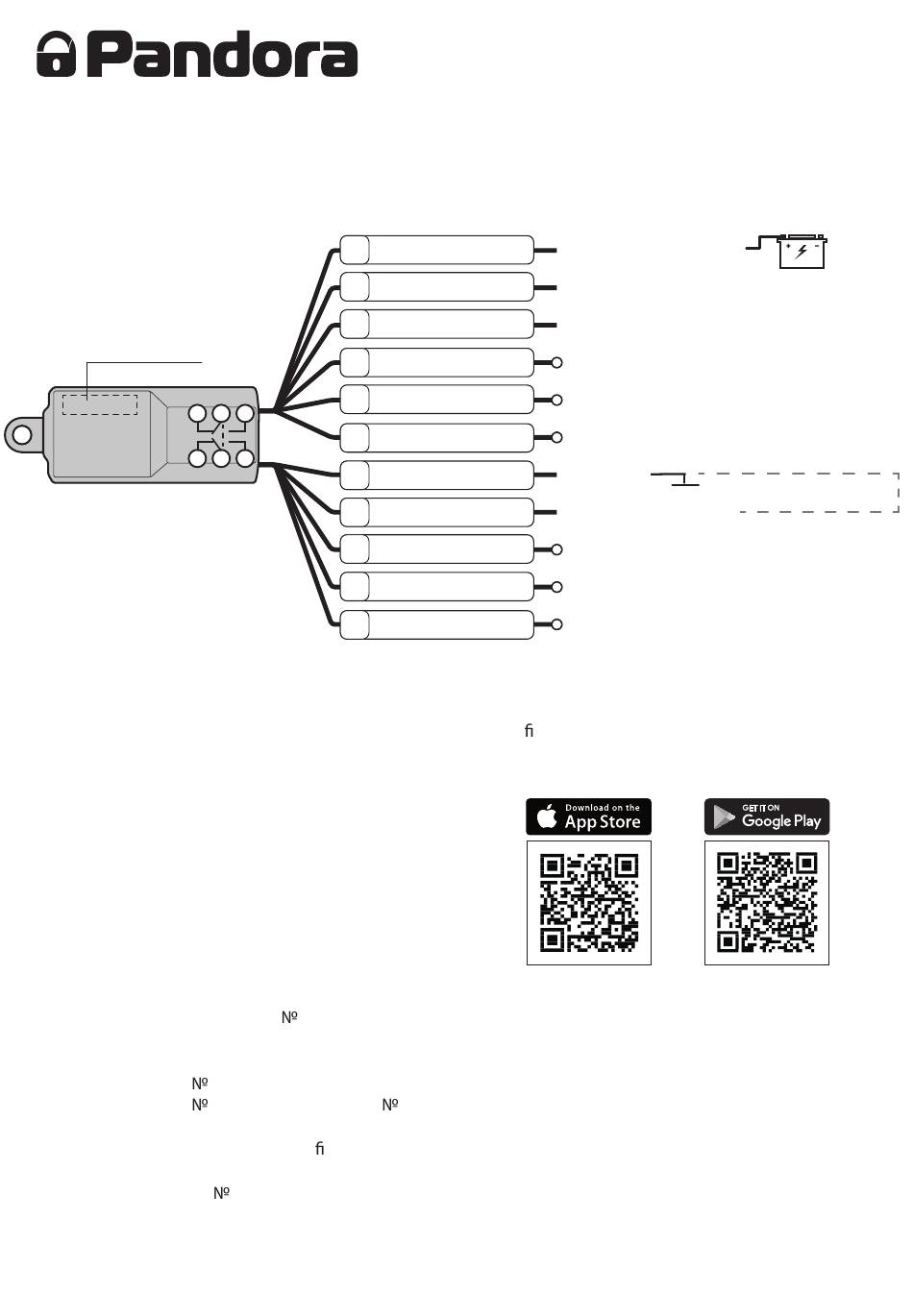

Radio relay BT-02
POWER SUPPLY +12V
IN BT1 (-)
IN BT2 (-)
}
CH BLE R1 – NC2
CH BLE R1 – COM2
CH BLE R1 – NO2
Connect
for programming
GROUND
LIN/PROGRAMMING
}
CH BLE R1 – NC1
CH BLE R1 – COM1
CH BLE R1 – NO1
nom 1A
max 2A
nom 1A
max 2A
