Summary of Contents for Dyna Winco PSS8

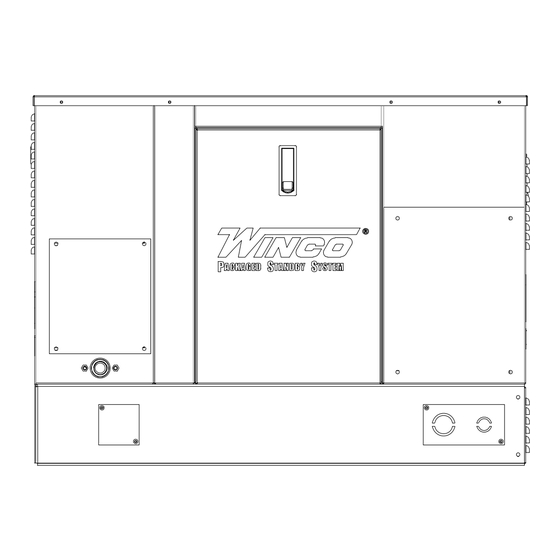

- Page 1 PACKAGED STANDBY SYSTEM INSTALLATION AND OPERATORS MANUAL ULPSS8B4W/E 11045-00 60706-210...
- Page 2 SAVE THESE INSTRUCTIONS PROPER USE AND This manual contains important instructions that INSTALLATION should be followed during installation and main- tenance of the generator and battery. Read and You must be sure your new engine generator set is: understand all instructions in the manual before * Properly serviced before starting.
- Page 3 SAFETY INFORMATION 2. FIRE HAZARD Natural gas and L.P. present a hazard of possible explosion and/or fi re. This engine generator set has been designed and a. Do not refuel when the engine is running or manufactured to allow safe, reliable performance. hot.
- Page 4 e. Always avoid hot muffl ers, exhaust manifolds, These packaged standby systems consist ot two and engine parts. They can cause severe major components: burns instantly. f. Installing a generator set is not a “Do-it-your- 1) AUTOMATIC TRANSFER SWITCH self” project. Consult a qualifi ed, licensed elec- trician or contractor.
- Page 5 SPECIFICATIONS “Concealed Damage” is understood to mean dam- age to the contents of a package which is not evi- dent at the time of delivery by the carrier, but wheich GENERATOR is discovered later. The carrier or carriers are responsible for merchandise lost or damaged in tran- MODEL WATTS* VOLTS...
- Page 6 ENGINE GENERATOR SET MOUNTING critical; failure to provide the proper pressure can cause many problems ranging from a unit that will not start to causing damage to the fuel system. WARNING - Personal Injury These units are normally tested on Natural Gas and The enclosures on these units can become very will have a tag hanging on the fuel hose indicating hot adjacent to the exhaust areas.
- Page 7 NATURAL GAS or LP VAPOR PIPE SIZE Size of pipe nomally required for generators operat- ing on NATURAL GAS or LP VAPOR. FEET SIZE OF PIPE up to 25 FT* 3/4 “ Pipe 25 - 100 FT* 1” Pipe over 100 FT* Use a two regulator system.
- Page 8 Natural Gas A customer supplied twelve-volt battery is required to complete the installation. Installation of the high- est CCA rated battery, within the correct BCI group REF # (size), will increase cold weather starting perfor- UNIT OFF LINE PSI 7-11 IN 7-11 IN mance.
- Page 9 * Where electrolyte contacts the skin, wash off im assembly. All connections must be clean and tight. mediately with water. Check the electrolyte (fl uid) in the battery periodi- * If electrolyte contacts the eyes, fl ush thoroughly cally to be sure it is above the plates. Never allow and immediately with water and seek immediate the battery to remain in a discharged condition.
- Page 10 11045-00 60706-210...
- Page 11 must not be larger than 100 amps. If you have a generator and the ATS. Two hot leads, a neutral 125, 150, 200 amp or larger system and want to use and a ground lead. You will then need to run both a a 100 amp transfer switch, you will not be able to neutral and ground lead in addition to the two power transfer the complete electrical system.
- Page 12 Because of the many different types of service, is numbered 1 through 9. These terminals will feeder, and distribution equipment, no specifi c wiring accept # 22 - # 14 AWG stranded wire. It is recom- instructions can be provided. It is, however, recom- mended that you use # 16 AWG for distances up to mended that copper wire be used.
- Page 13 The following is an optional way to interconnect the Fuel line protected and a moisture trap in Generator and the Transfer Switch. The wires termi- stalled (may be required for NG). nate on TB7 as follows: LP/NG pressure OK. 4-6 oz. (7-11 in. WC). Battery connections clean and tight.
- Page 14 ** NOTICE ** 2. Turn on the preferred source (utility) circuit breaker. The utility source acceptable light should If for any reason during the check out procedures now come on as well as the transfer switch on utility the voltage and frequency are not correct, move the light.
- Page 15 In order to set and test the exercise circuit the PREVENTIVE left hand toggle switch on the generator control MAINTENANCE panel must be in the ON position. SETTING THE EXERCISER CIRCUIT Reasonable care in preventive maintenance will insure high reliability and a long life for the engine Press and release the Automatic Generator Exer- generator set and Automatic Transfer Switch.
- Page 16 ENGINE CRANKS BUT WILL NOT START TROUBLESHOOTING TABLES 1. Improper fuel pressure being delivered to unit. 2. Fuel supply shut off. 3. Fuel supply empty. ******************** 4. Defective spark plug. ****** WARNING ****** 5. Defective engine ignition module. ******************** 6. Dirty air cleaner fi lter. 7.
- Page 17 11045-00 60706-210...
- Page 18 WINCO UL ATS Complete installation instructions for WINCO UL Automatic Transfer Switches are contained in the operators manual with each switch. Read the complete instructions before installing. CUSTOMER CONNECTION POINT All control wires (18-14 AWG) must be torqued to 19 in. lbs. 11045-00 60706-210...
- Page 19 ENGINE GENERATOR SET LAYOUT ULPSS8B4W/E 11045-00 60706-210...
- Page 20 11045-00 60706-210...
- Page 21 GENERATOR WINDING SPECIFICATIONS RESISTANCES: ROTOR 5.67 Ohms STATOR 0.145 Ohms CAPACITOR LEADS 1.31 Ohms 11045-00 60706-210...
- Page 22 12 MONTH LIMITED WARRANTY WINCO, Incorporated warrants to the original purchaser for 12 months or 1000 hours which ever occurs fi rst, that goods manufactured or supplied by it will be free from de- fects in workmanship and material, provided such goods are installed, operated and maintained in accordance with WINCO written instructions.
- Page 23 MAINTENANCE LOG DATE ITEM WORK PERFORMED HOURS 11045-00 60706-210...
- Page 24 225 S. CORDOVA AVE. LECENTER, MN 56057 507-357-6821 SERVICE DEPT. 507-357-6831 11045-00 60706-210...
