INSTALLATION
TECHNICAL INFORMATION FOR THE INSTALLER
Use protective gloves for handling, preparing, and installing the product.
This product can be embedded in a worktop 20 ÷ 60 mm thick.
If there is no oven beneath the hob, insert a separator panel with a surface at least equal to the opening in the work surface. This panel must be
positioned at a maximum distance of 150 mm below the upper surface of the work surface but, in no case, less than 70 mm from the bottom of the
hob. If you intend to install an oven beneath the hob, make sure that it is equipped with a cooling system.
Where the rating plate is obscured by cabinetry when the cooktop is in the installed position, place the duplicate rating plate (provided together with
the literature) on a surface of the cabinetry adjacent to the cooktop.
NOTE: An
may extinguish the burner
cabinet door or drawer.
An authorized person must install this appliance in accordance with this instruction manual:
AS/NZS 5601.1 - Gas installations (installation and pipe sizing)
Local electrical regulations
Building Code of Australia and any other government authority.
Ventilation must be in accordance with AS/NZS 5601 - Gas Installation. In general, the appliance should have adequate ventilation for
complete combustion of gas, proper ueing and to maintain temperature of immediate surroundings within safe limits. The wall and bench
surfaces must be capable of sustaining temperatures of 75 °C. All laminates, xing adhesive and surfacing materials should be suitable for
this temperature.

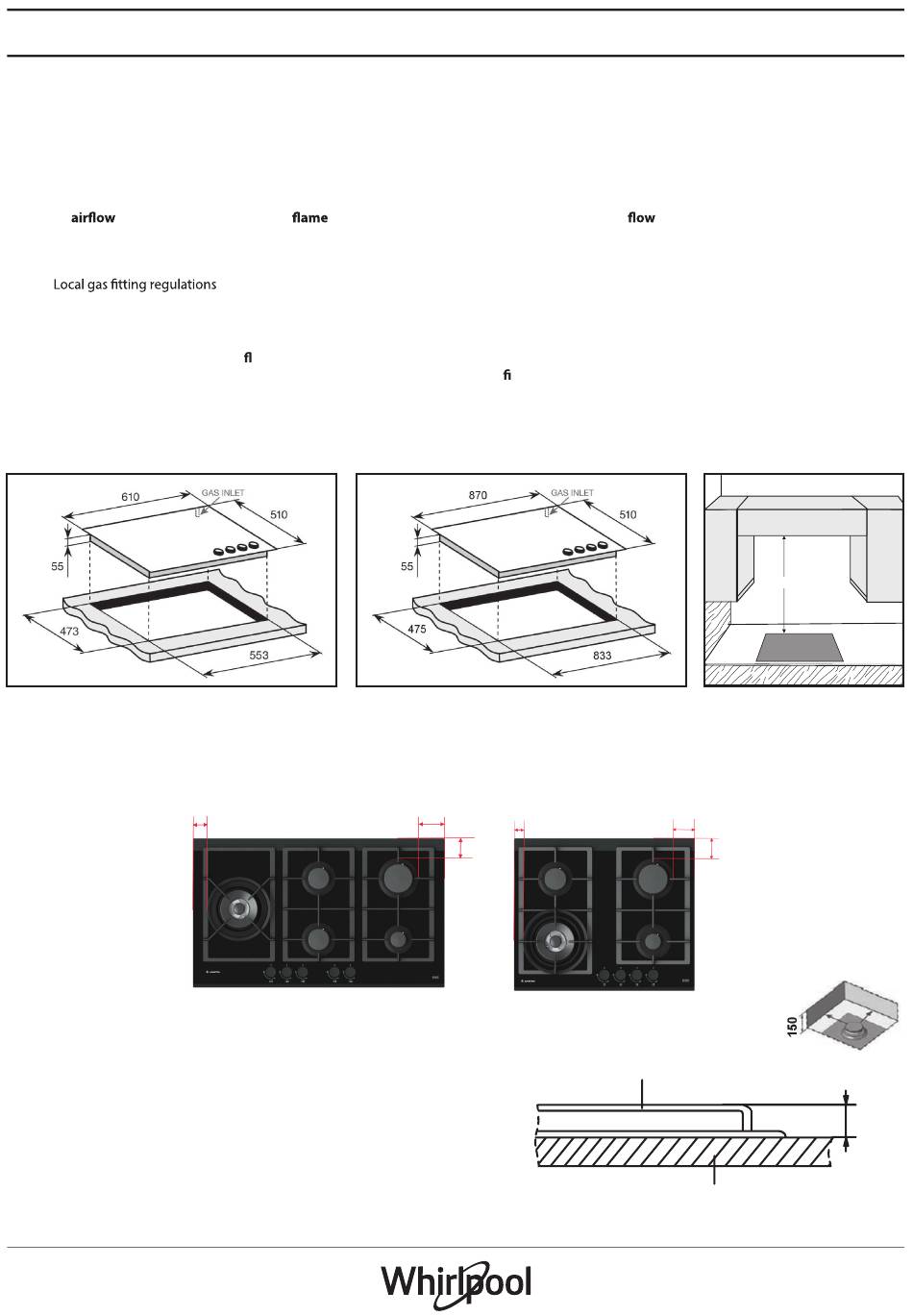

DIMENSIONS AND DISTANCES TO BE MAINTAINED
Mod.: GGW610NBAUS
The appliance belongs to class 3 and is therefore subject to al l the provisions established by the provisions governing such appliances.
NOTE: In case of installation of a hood above the cooktop please refer to the range hood instructions for the correct distance. Clearance A,
between the highest part of the highest burner of the gas cooking appliance and a range hood or exhaust fan (overhead clearance), shall be no
less than 600 mm for a range hood, and no less than 750 mm for an exhaust fan. The minimum clearance from a combustible surface shall be
a 200 mm horizontal distance from the periphery of any gas burner (AS/NZS 5601.1).
If that horizontal clearance is less than 200 mm, that vertical surface must be protected by a non combustible material for
150 mm above the cooktop surface across the entire length (depth, width).
The shown area indicates the protected surface, which may be ceramic tiles or other approved material.
The high from the worktop surface to the top of the pan support is 51 mm.
CAUTION:
The installer shall test the appliance before leaving. Test the safety operation of the ignition system on all burners individually and combined.
if the removable panel is not installed. The air
Mod.: GGW870NBAUS
94
110
74
87
may occur when you open or close the
90
87
Pan support
Worktop surface
A
51 mm
