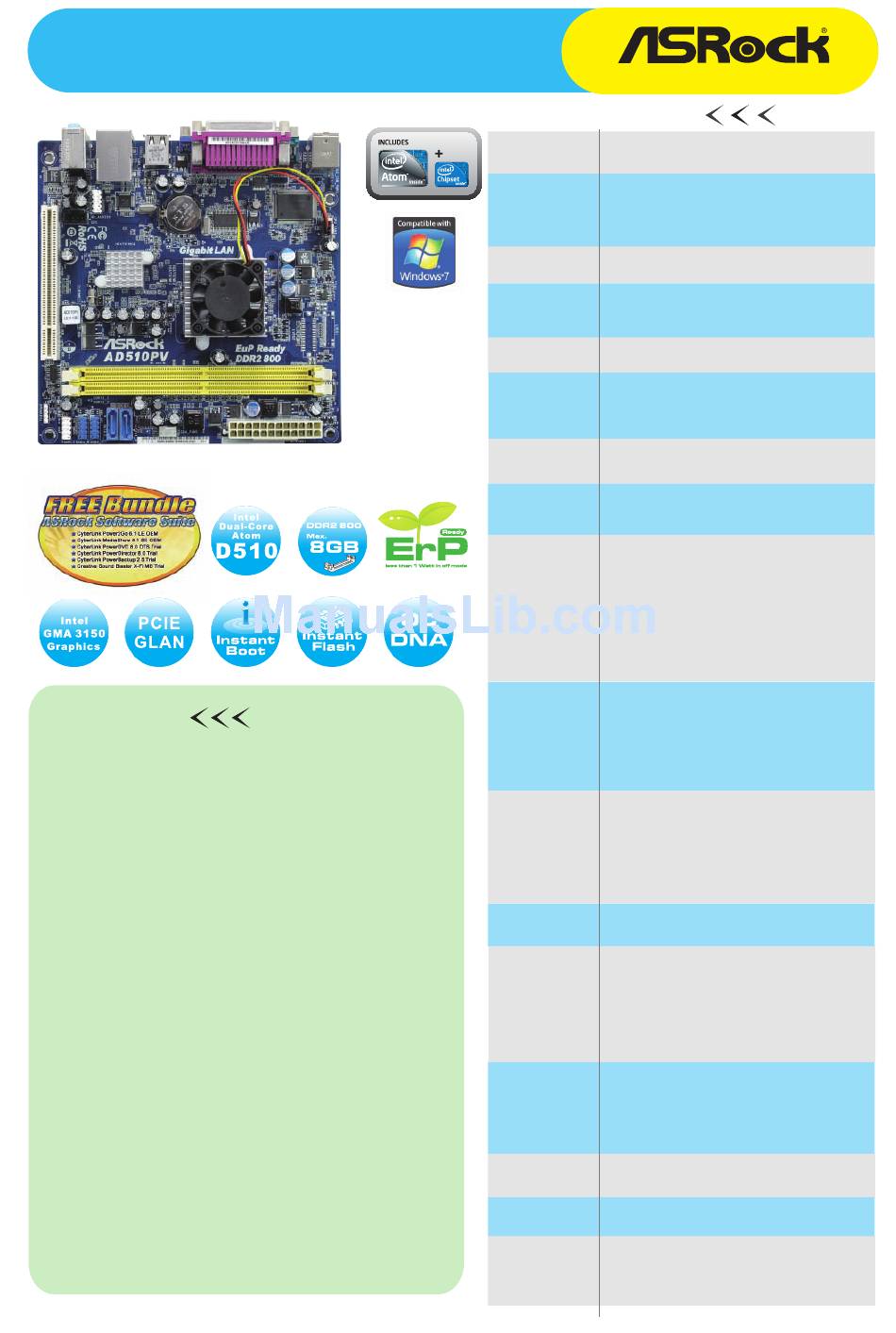

AD510PV
Intel
NM10 Express Chipset
®
Product Brief
- Intel
Dual-Core Atom™ Processor D510 (1.6 GHz)
®
- Solid Capacitor for CPU power
- Supports DDR2 800/667, Max. capacity up to 8GB
- Intel
Graphics Media Accelerator 3150, DirectX
®
9.0 and Max. shared memory 384MB
- PCIE Gigabit LAN
- Supports ASRock Instant Boot, Instant Flash,
OC Tuner, OC DNA
- ErP/EuP Ready
- Free Software : CyberLink DVD Suite - OEM and
Trial; Creative Sound Blaster X-Fi MB - Trial
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
ww w.a s ro ck. c o m
Detail Specification
Platform
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- Solid Capacitor for CPU power
CPU
- Intel
Dual-Core Atom
®
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
Chipset
- Southbridge: Intel
- 2 x DDR2 DIMM slots
Memory
- Supports DDR2 800/667 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB
- 1 x PCI slot
Expansion Slot
- Intel
®
Graphics Media Accelerator 3150
Graphics
- Pixel Shader 2.0, DirectX 9.0
- Max. shared memory 384MB
- Supports D-Sub with max. resolution up to 2048x1536
@ 60Hz
Audio
- 5.1 CH HD Audio (VIA
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111DL
- Supports Wake-On-LAN
Rear Panel I/O
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Parallel Port (ECP/EPP Support)
- 1 x Serial Port: COM1
- 1 x VGA Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
Connector
- 2 x SATAII 3.0 Gb/s connectors, support NCQ, AHCI and
Hot Plug functions
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
BIOS Feature
- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- VCCM, SB Voltage Multi-adjustment
- Drivers, Utilities, AntiVirus Software (Trial Version)
Support CD
ASRock Software Suite (CyberLink DVD Suite - OEM
and Trial; Creative Sound Blaster X-Fi MB - Trial)
Unique Feature
- ASRock OC Tuner
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS
- Microsoft
Windows
®
XP / XP 64-bit compliant
Certifications
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 1 x Bundled Intel
- 2 x SATA Data Cables (Optional)
Processor D510 (1.6 GHz)
TM
NM10 Express
®
V1705 Audio Codec)
®
7 / 7 64-bit / Vista
/ Vista
64-bit /
®
TM
TM
Dual-Core Atom
Processor D510
®
TM
Advertisement
Table of Contents
Related Manuals for ASROCK AD510PV
Summary of Contents for ASROCK AD510PV
- Page 1 Dual-Core Atom Processor D510 ® - 2 x SATA Data Cables (Optional) The specification is subject to change without notice. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
- Page 2 European Union decided to establish an effective strategy to solve the energy consumption problem. That is, according to ErP/EuP, the total AC power of the completed system shall be under 1.00W in off mode condition. ASRock, Worldwide First ErP/EuP Ready Motherboard Manufacturer! To meet ErP/EuP standard, the ErP/EuP ready motherboard and the ErP/EuP ready power supply are required.
- Page 3 “Load” to load the “CPU_OC3.8GHz” profile in OC DNA. load the “CPU_OC3.8GHz” profile as his BIOS OC settings. AD510PV Now, you have successfully share your OC setting profile with your friends. *The OC DNA works only when users use the same motherboard and BIOS version.
- Page 4 Once executing ASRock Instant Flash, the utility will automatically detect all devices such as USB, hard disk or even floppy drive to find the exact BIOS for your system. Instead of giving you all BIOS in your devices, the Instant Flash just list BIOS versions that apply to your motherboard model only. For example, if you have many different BIOS of different motherboards saved in your devices, but you just need to flash your P45 motherboard, the Instant Flash will just list the P45 BIOS versions for you.
- Page 5 NM10 Express Chipset ® CyberLink Power2Go 6.1 LE OEM Power2Go 6 lets you burn and backup videos, photos, music and data onto Blu-ray Discs and DVDs. CyberLink MediaShow 4.1 SE OEM Photo and video management software MediaShow edits videos and photos instantly, creates slideshow, and allows publishing directly to YouTube and Flickr.
