Nidec TR2-21-L Series Quick Start Manual
Nidec TR2-21-L Series Quick Start Manual

Nidec TR2-21-L Series Quick Start Manual

Ultra-miniature illuminated pushbutton switches

Advertisement

Quick Links

TM

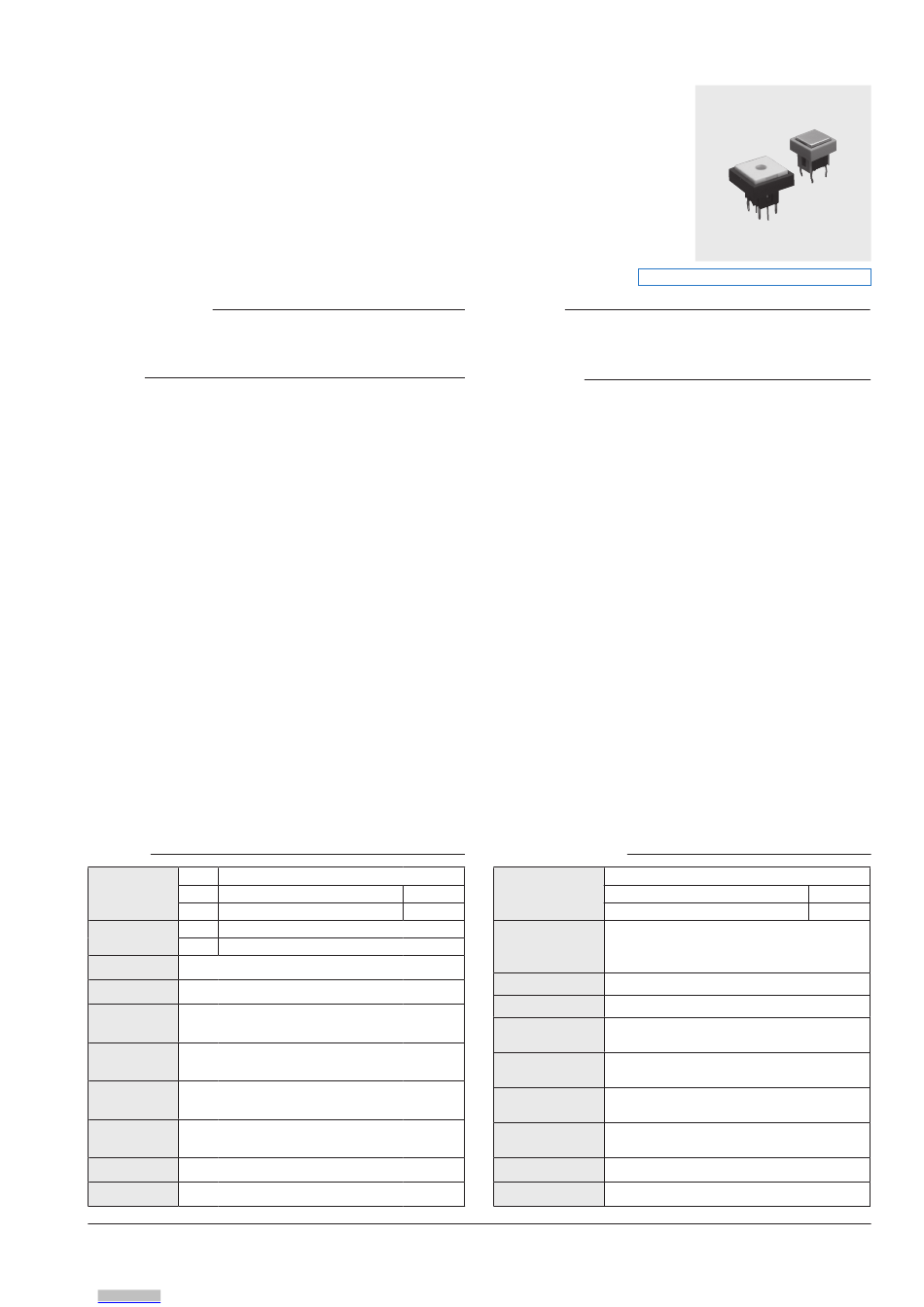

超小形照光式押ボタンスイッチ
Ultra-Miniature Illuminated Pushbutton Switches
■シリーズ構成
ラバーコンタクト(TRタイプ)
メタルコンタクト(TMタイプ)
■特長
1. フリーチョイス
同一パネル面上に取付可能な、ソフトなクリック感触を有するラ
バーコンタクトと、シャープな感触のメタルコンタクトの2種類
を用意しました。用途によっていずれかをお選びください。
2. プリント基板専用
端子ピッチはすべてインチサイズ(2.54の倍数)です。独自の
端子形状により、はんだディップ時のプリント基板面からの浮き
上がりがありません。
3. はんだ耐熱性の向上
端子構造の改善により、はんだ熱による接点の接触障害を防止
し信頼性を向上させ、かつ同極に2本ずつ端子を配置して端子に
ジャンパ一線としての機能を付加しました。
4. LED付き
コンパクトな外形にもLED照光が可能です。
5. アクセサリー
カラーボタン、取付枠、LED照光など付属部品を豊富にそろえま
した。
6. 鉛フリーはんだ付け対応品
ユーザーサイドで鉛フリーはんだが使えるよう、高耐熱樹脂を採
用しました。 (TMシリーズのみ)
■ 仕様
初期接触抵抗
圧 AC250V 1 分間
絶 縁 抵 抗
電 気 的 寿 命
バ ウ ン シ ン グ
ス ト ロ ー ク
( ピ ー ク 荷 重 )
使用温度範囲
保存温度範囲
Arrow.com.
Downloaded from
TR
&
TR
DC12V 10mA Max. 10μA Min
TM
1VA Max. ( DC48V Max.50mA Max. ) 0.5mA Min.
TMG 1VA Max. ( DC48V Max.50mA Max. ) 10 μ A Min.
TR
500 Ω以下 ( DC2V 1mA 1.47N { 150gf } 荷重時)
TM
100m Ω以下 ( AC200μV1.5mA 1.96N { 200gf } 荷重時)
100M Ω以上           ( DC100V )
TR : 10 万回
TM : 30 万回
TR : 3 msec. 以下(初期値)
TM : 10 msec. 以下(初期値)
TR : 1 mm
TM : 0.25 mm
TR : 0.98 ± 0.39 N
TM : 1.37 ± 0.39 N
−25 〜+ 70 ℃
−40 〜+ 70 ℃
RoHS 指令対応  RoHS Compliant
■ Series
Conductive Rubber Contact ( TR type )
Metal Contact ( TM type )
■ Features
1. Two Types of Contacts
TR series: Conductive rubber contact for soft tactile feel.
TM series: Metal contact for sharp tactile feel.
2. PC Board Mount
Terminal pitch is in inches (multiples of 2.54 mm) for all
models.
The unique terminal shape prevents the terminal pins from
coming loose from the PC board during dip soldering.
3. Enhanced Resistance to Soldering Heat
Improved terminal structure protects the contacts from
soldering heat.
In addition, each pole has two terminals which can be used
as a jumper wire.
4. Ultra-Miniature Switch with LED
LED is built into miniature housing.
5. Wide Variety of Accessories
A wide variety of accessories are available, including color
buttons and mounting frames.
6. Compatible With Lead-Free Soldering (TM Series)
Heat-resistant resin for lead-free soldering.
■ Specifications
TR : 10mA 12VDC max. 10μA Min.
TM : 1VA max. ( 50mA max.48VDC max ) 0.5mA min.
Rating
TMG : 1VA Max. ( 50mA max.48VDC max. ) 10 μ A min.
TR : 500 Ω max. ( 1mA 2VDC at 1.47N { 150gf } )
Initial contact
TM : 100m Ω max
resistance
( 1.5mA 200μVAC at 1.96N { 200gf } )
Dielectric strength
250VAC 1 minute
100M Ω min
Insulation resistance
TR : 100,000 operations
Electrical life
TM : 300,000 operations
TR : 3 msec. max. ( Initial value )
Contact Bounce
TM : 10 msec. max. ( Initial value )
TR : 1 mm
Travel
TM : 0.25 mm
TR : 0.98 ± 0.39N
Operating force
( at peak force )
TM : 1.37 ± 0.39N
−25 〜+ 70 ℃
Operating
temperature range
Storage
−40 〜+ 70 ℃
temperature range
         ( 100VDC )

Advertisement

loading
Need help?

Need help?

Do you have a question about the TR2-21-L Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Nidec TR2-21-L Series

  • Page 1 & 超小形照光式押ボタンスイッチ Ultra-Miniature Illuminated Pushbutton Switches RoHS 指令対応  RoHS Compliant ■シリーズ構成 ■ Series Conductive Rubber Contact ( TR type ) ラバーコンタクト(TRタイプ) メタルコンタクト(TMタイプ) Metal Contact ( TM type ) ■特長 ■ Features 1. フリーチョイス 1. Two Types of Contacts 同一パネル面上に取付可能な、ソフトなクリック感触を有するラ TR series: Conductive rubber contact for soft tactile feel. バーコンタクトと、シャープな感触のメタルコンタクトの2種類...
  • Page 2 TM ・ TR ■ ■ 形名の説明 荷重特性 /Part Numbering Operating Force vs. Stroke Characteristics T M G 2 — 21 — L2 シリーズ記号. 接点メ ッキ LED輝度 Series code Contact plating LED luminance 接触機構. 構造 LED色調 ・ 表示箇所 LED color ・ LED location Type of contact Structure ■...
  • Page 3 (ラバ ーコンタクト ) /Conductive Rubber Contact 単極単投 /SPST スイッチ特性 回路図 Switching function Circuit diagrams 形名 Part No. ( ON ) TR1-01 接続端子 Connecting — terminals ボックスには端子番号を表示していません。 Terminal numbers are not shown on the switch. 単極単投 /SPST スイッチ特性 回路図 形名 Switching function Circuit diagrams Part No.
  • Page 4 TM ・ TR ■ 取付寸法 /Mounting Dimension   TR1 ・ TM1 ・ TMG1   TR1 ・ TM1 ・ TMG1   TR1 ・ TM1 ・ TMG1   TR2 ・ TM2 ・ TMG2 形名 □   TR2 ・ TM2 ・ TMG2 □ □...
  • Page 5 TM ・ TR ■ スイッチ操作について /Switch Operation ⑴ 操作部強度は、9.8Nのため、それ以上の力で操作部を押さないでください。 ⑵ はんだ付け直後のスイッチ操作は、避けてください。 ⑶ 操作部に荷重が加わった状態で、はんだ付け作業を行なわないでください。 ⑴ Operating force should be 9.8 N or less. ⑵ Do not operate the switch right after soldering. ⑶ Do not solder the switch with the actuator pressed down. ■...
  • Page 6 TM ・ TR ■ 取扱注意事項 /Handling Precautions LEDに流す電流はご使用になるスイッチのLED仕様欄に記載の順電流IF以下になるよう抵抗値Rを下記の計算式 からお求めください。 計算例  LED回路 Calculation Example : E = 5 V = 2.0mA Current to be applied to the LED must be lower than the forward current (IF) E−V 5−2.0 indicated in the LED Specifications of =150 Ω...
