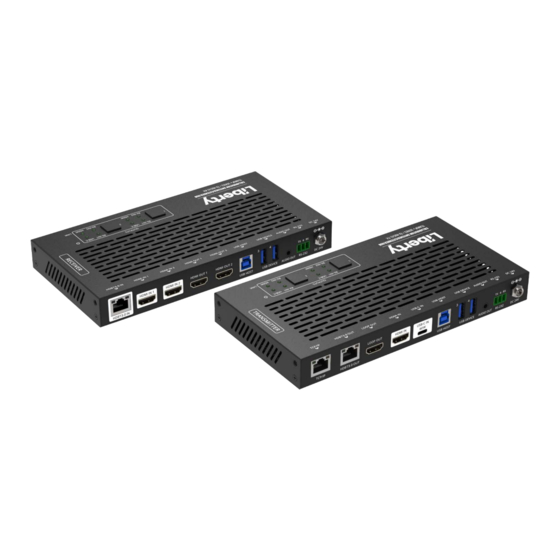

- Page 1 TU-HUC42-TX/RX Owner's Manual TeamUp+ Series 18G BYOM Collaboration Switcher / Extender / Hub with uncompressed 4K60 over HDBaseT www.libav.com 800.530.8998...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction This is a 2x1+1 (TX only) or 4x2 (TX/RX kit) multi-format A/V matrix with HDBaseT 3.0 extension that supports uncompressed video resolutions up to 4K@60Hz 4:4:4 8bit deep color. It is HDCP 2.2 / 2.3 compliant and has a built in USB 3.0 switching hub with 8 total USB 3.0 client ports and 3 USB host ports for control and integration of USB devices such as USB cameras/mic. -
Page 4: Package Contents
• RX: HDBaseT and 2 local HDMI inputs, 3x2 matrix outputs with one USB 3.0 host and four USB 3.0 clients • 1x8 USB 3.0 hub with 8 USB 3.0 clients, each client output power can be on/off control independently •... -
Page 5: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 Video Bandwidth 18Gbps Video Resolution Up to 4K@60Hz 4:4:4 USB Bandwidth Up to 300Mbps Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 Color Depth 8/10/12bit HDR, HDR10, HDR10+, Dolby Vision, HLG HDMI/USB-C Pass-through: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, Audio Formats... - Page 6 Mechanical Housing Metal Enclosure Color Black Transmitter / Receiver: 208mm [W] x 107mm [D] x 27mm [H] Dimensions Weight Transmitter: 616g, Receiver: 585g Input: AC 100 - 240V 50/60Hz Power Supply Output: TX: DC 24V/3.75A; RX: DC 24V/2.7A (US/EU standard, CE/FCC/UL certified) TX: 97.6W (60W USB-C charging and full power supply to 4x Power Consumption USB devices)
-
Page 7: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Transmitter Top Panel Name Function Description Input source selection button for the HDMI OUT 1/2 port of the Receiver. OUTPUTS Note: There is a linkage relation between the HDMI IN and USC-C 1/2 selection IN port, when one of them is selected as the input channel for HDMI button OUT 1/2. -
Page 8: Transmitter Front & Rear Panel
5.2 Transmitter Front & Rear Panel Name Function Description Firmware upgrade port, which can be used to upgrade the MCU (default) or Valens firmware through API commands switching. F/W port Note: The RS module requires approximately 40s~50s to start, and the MCU version number can only be read after startup. - Page 9 Name Function Description ▪ Illuminating: Transmitter and Receiver have good connection status. Link Signal ▪ Flashing: Transmitter and Receiver have poor connection status. Indicator ▪ Dark: Transmitter and Receiver are not connected. (Green) HDMI signal loopout port, connected to HDMI display device, such as TV or monitor.
-
Page 10: Receiver Top Panel
5.3 Receiver Top Panel Name Function Description Input source selection button for the HDMI OUT 1/2 port of the Receiver. OUTPUTS Note: There is a linkage relation between the HDMI IN and USC-C 1/2 selection IN port, when one of them is selected as the input channel for HDMI button OUT 1/2. -
Page 11: Receiver Front & Rear Panel
5.4 Receiver Front & Rear Panel Name Function Description Firmware upgrade port, which can be used to upgrade the MCU F/W port (default) or Valens firmware through API commands switching. Four USB extension ports, connected to mouse, keyboard, USB camera or other USB devices. DEVICES Note: The local end supports USB 3.0 transfer rate, but the remote end only supports USB 2.0 transfer rate. -
Page 12: Web Gui Operation Guide
Name Function Description Analog audio output port, which is used for audio de-embedding AUDIO OUT output. port RS-232 serial port with follcwing two functions: (1) Pass through external serial port commands to the RS-232 port of the HDBaseT Transmitter. 10 RS-232 port (2) Send API commands to control external devices (when the Transmitter and Receiver is used together). - Page 13 Step 3: Input the current IP address of extender into your browser on the PC to enter Web GUI interface. http://192.168.0.178 After entering the Web GUI page, there will be a visitor interface, as shown below. Click “Get Started” or wait for 3 seconds to enter the operation interface, as shown below.
- Page 14 ② RX HDMI OUT 1: Click to select the signal source for the output of receiver’s HDMI OUT 1 port. ③ RX HDMI OUT 2: Click to select the signal source for the output of receiver’s HDMI OUT 2 port. ④...
- Page 15 System Settings ① Room Name: You can modify the name. ② Logo: Click “IMG” to import an image to the welcome interface. ③ Welcome Message: You can modify the slogan of the welcome interface. ④ Device Status: System status, displaying each port’s connection status. Time Settings ①...
- Page 16 ■ Device Configuration Page USB Host ① Follow Video: You can set the Host port to follow video mode for each input channel. ② Manual Switch: You can manually select the Host port. ③ Auto Switch: When “Auto Switch” is selected, the system will detect the connection status of the Host port, and select the Host port automatically.
- Page 17 RX HDMI OUT1(if TX no inputs): Configure the signal source for RX OUT 1. When there is no signal input for TX, RX OUT 1 will automatically output the input signal from RX. RX HDMI OUT2(if TX no inputs): Configure the signal source for RX OUT 2. When there is no signal input for TX, RX OUT 2 will automatically output the input signal from RX.
- Page 18 ■ Manage Events Interface Up to 6 events management are supported, and each event can be edited separately, as shown in the figure below. Event Details ① Button Label*: You can change the button label. ② Description: You can add description. ③...
- Page 19 After setting action commands, click “TEST” to send commands. After setting up, you can click “Save” to save the settings, or click “Back” to go back to the previous level. ■ Schedule Interface After turning off the function of “Set time automatically” on the System Settings interface, you can set the system time in 12-hour or 24-hour hours on this interface.
-
Page 20: Api Commands
7. API Commands The product also supports API commands for control. Connect the RS-232 port of the product to a PC with a 3-pin phoenix connector cable. Then, open a Serial Command tool on PC to send ASCII commands to control the product. - Page 21 Command Code Function Description Command & Feedback Example Set TX LOOP follow HDBT SetTxLoopFollow >SetTxLoopFollowHdbt ON source Hdbt Param <TxLoopFollowHdbt ON Param = ON, OFF >GetTxLoopFollowHdbt GetTxLoopFollow Get TX LOOP follow HDBT <ON Hdbt source Enable/Disable TX SetTxAutoSwitchOn >SetTxAutoSwitchOn ON auto-switching mode Param <TxAutoSwitchOn ON...
- Page 22 Command Code Function Description Command & Feedback Example Set the EDID mode Param1 = USBC, HDMI, RXHDMI1, RXHDMI2 Param2 = 00 - 1920x1080@60 8bit Stereo (default) 01 - WUXGA 1920x1200 02 - 1920x1080@60 8bit High Definition Audio 03 - 3840x2160@60Hz 4:2:0 Deep Color Stereo Audio 04 - 3840x2160@60Hz Deep Color Stereo Audio...
- Page 23 Command Code Function Description Command & Feedback Example Set USB switch mode Param = AUTO: USB 5V detection SetUsbSwitchMode >SetUsbSwitchMode AUTO then switch Param <UsbSwitchMode AUTO MANUAL: manual switch FOLLOW: follow video switch >GetUsbSwitchMode Get USB switch mode GetUsbSwitchMode <AUTO >GetUsbSwitchStatus GetUsbSwitchStatus Get USB switch status <USB-C...
- Page 24 Command Code Function Description Command & Feedback Example Set Schedule time Param1 = 0 ~ 23(hour) (Param1= 8 or 8AM, 20 or 8PM) Param2 = 0 ~ 59(min) SetSchedule <Param Param3 = 0 ~ 23(hour) 1,Param2,Param3, (Param3 = 8 or 8AM, 20 or >SetSchedule <8,0,10,0,0,1,1,1,1,1,1>...
- Page 25 Command Code Function Description Command & Feedback Example Set Daylight Time Param1 = 1 ~ 12(start month) Param2 = 1 ~ 6(start week) Param3 = 0 ~ 6(start day) Param4 = 0 ~ 23(start hour) SetDaylightTime (Param4=8 or 8AM, 20 or <Param1,Param2, 8PM) >SetDaylightTime <8,1,1,10,0,12,1,1,10,0,1,0>...
- Page 26 Command Code Function Description Command & Feedback Example Send CEC OFF command to >SetCecSrcOff SetCecSrcOff TX HDMI source device <CecSrcOff Send CEC STOP command >SetCecSrcStop SetCecSrcStop to TX HDMI source device <CecSrcStop Send CEC PLAY command >SetCecSrcPlay SetCecSrcPlay to TX HDMI source device <CecSrcPlay Send CEC PAUSE command >SetCecSrcPause...
-
Page 27: Application Example
8. Application Example Camera TV 1 Router HDMI Matrix with Local RS-232 function Computer CAT 6A/7 cable Laptop Local Computer Camera TV 2 TV 3 Speakers Power Supply Mouse Keyboard 25 / 25...
