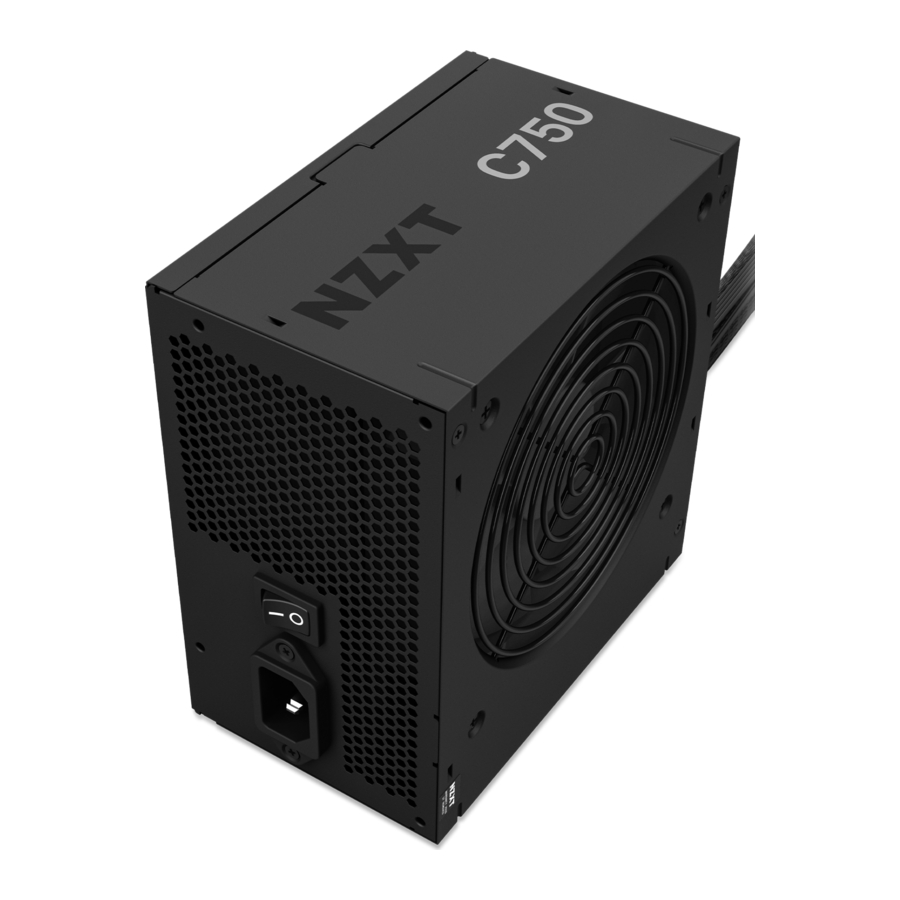

NZXT C750 Bronze - Non-Modular ATX PSU Manual

COMPONENT LIST

INSTALLATION

STEP 1
Install the power supply into the case using the provided screws.
INSTALLATION - STEP 1

STEP 2
Connect the 20+4-pin power to the motherboard.
INSTALLATION - STEP 2

STEP 3
Connect the 4+4-pin CPU power.

STEP 4
Connect the PCI-E power to your graphics card as required.
INSTALLATION - STEP 3

STEP 5
Connect the SATA and peripheral power as needed.
INSTALLATION - STEP 4

STEP 6
Connect the AC power cord to the wall and turn on the power switch.
INSTALLATION - STEP 5

SPECIFICATIONS

C750 Bronze
Model Number	PA-7B2BB/PS-2202
Dimensions	150 x 140 x 86mm
Material(s)	Steel, PCB and plastic
Compliance Standard	ATX12V v2.53 / EPS12V v2.92
PF Correction	Active @ 0.96
AC Input Rating	100V-240Vac 10A-5A 50Hz-60Hz
DC Output Rating
DC Output	+3.3V	+5V	+12V	-12V	5Vsb
Max Load	20A	20A	62.5A	0.3A	2.5A
Max Output Power	120W		750W	3.6W	12.5W
Total Power	750W
Fan Spec
Dimensions	120 x 120 x 25 mm
Rated Speed	2400 ± 10% RPM
Airflow	64.4 CFM (Tpy.)
Noise Value	39.92 dBA max
Bearing	Fluid Dynamic Bearing (FDB)
Regulation & Certification	FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS
Hazardous Materials	Taiwan and China RoHS Table, CP65
Protections	OVP (Over Voltage Protection), UVP (Under Voltage Protection), SCP (Short Circuit Protection), OTP (Over Temp Protection), OPP (Over Power Protection), OCP (Over Current Protection)
Operation Temperature	0 to 40°C
Energy Efficiency	80 Plus Bronze
	10% loading: 86.2% @115Vac
	20% loading: 88.97% @115Vac
	50% loading: 88.7% @115Vac
	100% loading: 83.2% @115Vac
MTBF	100,000 hours
Included Cables	24-pin ATX power: 600mm, Nylon sleeving
	4+4-pin CPU power: 700mm, Nylon sleeving
	6+2-pin PCIe power: 650 + 150mm, Nylon sleeving
	SATA power: 500 + 150 mm
	Peripherals: 500 + 150 mm

IMPORTANT SAFETY INFORMATION

ELECTRIC SHOCK HAZARD!

Install in accordance with all manufacturer instructions and safety warnings. Failure to do so may result in damage to your power supply or system, and may causes serious injury or death.
High voltages are present in the power supply. Do not open the power supply case or attempt to repair the power supply; there are no user-serviceable components.
This product is designed for indoor use only.
Do not use the power supply near water, or in high temperature or high humidity environments.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat.
Do not insert any objects into the open ventilation or fan grill area of the power supply.
Do not modify the cables and/or connectors included with this power supply.
If this power supply uses modular cables, use only manufacturer supplied cables.
The 24-pin main power connector has a detachable 4-pin connector. This 4-pin connector is not a P4 or ATX 12V connector. Do not force this cable in the P4 or ATX +12V socket on motherboard.
Failure to comply with any manufacturer instructions and/or any of these safety instructions will immediately void all warranties and guarantees.

SUPPORT AND SERVICE

If you have any questions or problems with the NZXT product you purchased, please don't hesitate to contact us using our support system.
service@nzxt.com
www.support.nzxt.com.

Please include a detailed explanation of your problem and your proof of purchase. For comments and suggestions, you can e-mail our design team, designer@nzxt.com.

Lastly we would like to thank you for your support by purchasing this product. For more information about NZXT, please visit us online.
NZXT Website: NZXT.com
