DMP-8124 Installation Quick Guide
Required Parts
Wi-Fi Installation
•
DMP-8124
•
Power Supply (with power cord)
•
Antenna @ 2
•
Mounting Bracket (attached)
•
HDMI Adapters @ 4
•
HDMI Cable (ordered through Daktronics or provided by customer)
•
Serial Cable (ordered through Daktronics or provided by customer)
Note: A USB keyboard and mouse are required for Wi-Fi configuration
Hard-wired Installation
•
DMP-8124
•
Power Supply (with power cord)
•
Mounting Bracket
•
HDMI Adaptors @ 4
•
HDMI Cable (ordered through Daktronics or provided by customer)
•
Ethernet Cable (ordered through Daktronics or provided by customer)
•
Serial Cable (ordered through Daktronics or provided by customer)

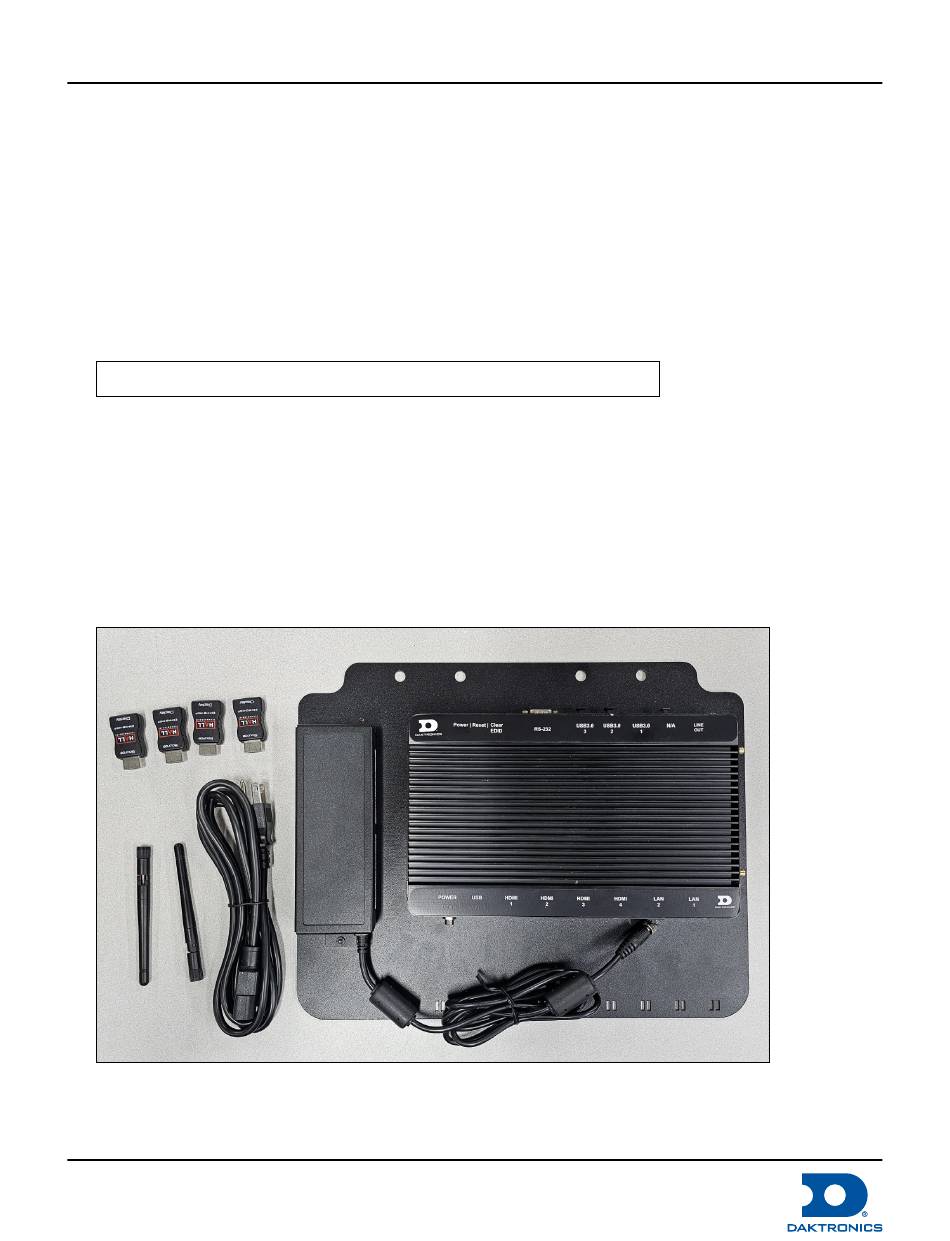

Figure 1: DMP-8124 Unboxed Components
DD5322500
Rev 02
02 May 2024
201 Daktronics Drive Brookings, SD 57006
www.daktronics.com/support
800.325.8766
Page 1 of 14
Advertisement
Related Manuals for Daktronics DMP-8124
Summary of Contents for Daktronics DMP-8124
- Page 1 Mounting Bracket (attached) • HDMI Adapters @ 4 • HDMI Cable (ordered through Daktronics or provided by customer) • Serial Cable (ordered through Daktronics or provided by customer) Note: A USB keyboard and mouse are required for Wi-Fi configuration Hard-wired Installation •...
-
Page 2: Standard Installation
Standard Installation DMP-8124 Mounting The DMP-8124 can be attached to the VESA bracket or the rack shelf. The VESA bracket can be mounted to different surfaces via direct screw holes, while the rack shelf attaches to a standard rack. VESA Bracket Mounting 1. - Page 3 • HDMI 4 - Right Display 4. Plug the HDMI cable into HDMI adapter in port 1 on the DMP-8124. Refer to Figure 4. 5. Plug the other end into an available HDMI port on the display. 6. Plug the second, third, and fourth HDMI cables into the HDMI adapters in ports 2, 3, and 4 on the DMP-8124 based on the desired orientation.
- Page 4 System Riser Drawings & General Diagrams for detail of displays connected in series. 11. Plug the power supply cable into the power port on the DMP-8124. Refer to Figure 4. 12. Connect Ethernet cable to the Ethernet port, if performing a hardwire installation.
-
Page 5: Configuration And Troubleshooting
Note: The Download Mask button downloads a file that can be used for content creation that shows where the created gap appears in the content. This is for the gap making new content for the display. DD5322500 201 Daktronics Drive Brookings, SD 57006 Rev 02 www.daktronics.com/support 02 May 2024... - Page 6 1. Restart the player and press the Delete key on the keyboard to open the bios. 2. Navigate to the Advanced tab. 3. Open DSP Configuration. Refer to Figure 10. Figure 10: DSP Configuration DD5322500 201 Daktronics Drive Brookings, SD 57006 Rev 02 www.daktronics.com/support 02 May 2024 800.325.8766...
- Page 7 Figure 11: EDID Auto Emulate 6. Press the F4 key on the keyboard and select Yes to save configuration and exit. Refer to Figure 12. Figure 12: Save Config and Exit DD5322500 201 Daktronics Drive Brookings, SD 57006 Rev 02 www.daktronics.com/support 02 May 2024...
- Page 8 Note: The combined display will become Display 3. Refer to Figure 13 and Figure 14. Figure 13: Combine 1 and 2 6. Click Apply to verify changes. 7. Click the ellipsis in Display 3. DD5322500 201 Daktronics Drive Brookings, SD 57006 Rev 02 www.daktronics.com/support 02 May 2024 800.325.8766...
- Page 9 11. Click Combine Displays and go to Display 1 (shown as Monitor 3). Select Horizontal. Note: The display will now show as one display. Refer to Figure 15 and Figure 16. Figure 15: Combine 2 and 1 DD5322500 201 Daktronics Drive Brookings, SD 57006 Rev 02 www.daktronics.com/support 02 May 2024...
- Page 10 13. Open the Settings App from the Start Menu and accept any license agreements. Refer to Figure 17. 14. Select System. Figure 17: Windows Settings App 15. Navigate to Display. Refer to Figure 18. Figure 18: Display Settings DD5322500 201 Daktronics Drive Brookings, SD 57006 Rev 02 www.daktronics.com/support 02 May 2024 800.325.8766...
- Page 11 4. Update the account information in the User Information and Additional Information sections. Log In - Hosted Server 1. Navigate to https://venus.daktronics.com. 2. Follow Steps 2-4 in Log In - Local Server (p.11). DD5322500 201 Daktronics Drive Brookings, SD 57006 Rev 02 www.daktronics.com/support 02 May 2024 800.325.8766...
-
Page 12: Connecting A Display
7. Enter the six digit registration code. Refer to Figure 23. 8. Click 9. Confirm the changes. Figure 21: Display Configuration Figure 22: Add a Device Figure 23: Enter Registration Code DD5322500 201 Daktronics Drive Brookings, SD 57006 Rev 02 www.daktronics.com/support 02 May 2024 800.325.8766... - Page 13 DMP-8124 Installation Quick Guide Daktronics Network Configuration For a digital display system to communicate with Daktronics cloud-based service and support offerings, system firewalls must be configured to allow traffic from the below-listed IP addresses and ports. IP Addresses and Ports Necessary to Communicate with the Venus Control Suite ®...
-
Page 14: Supplementary Documentation
Display Control App Quick Guide - Display Control App Quick Guide (DD4948224) Riser Diagrams - LCD Networks: Shop and Layout Drawings Daktronics LCD Networks Resources Page - Use QR code below DD5322500 201 Daktronics Drive Brookings, SD 57006 Rev 02 www.daktronics.com/support...
