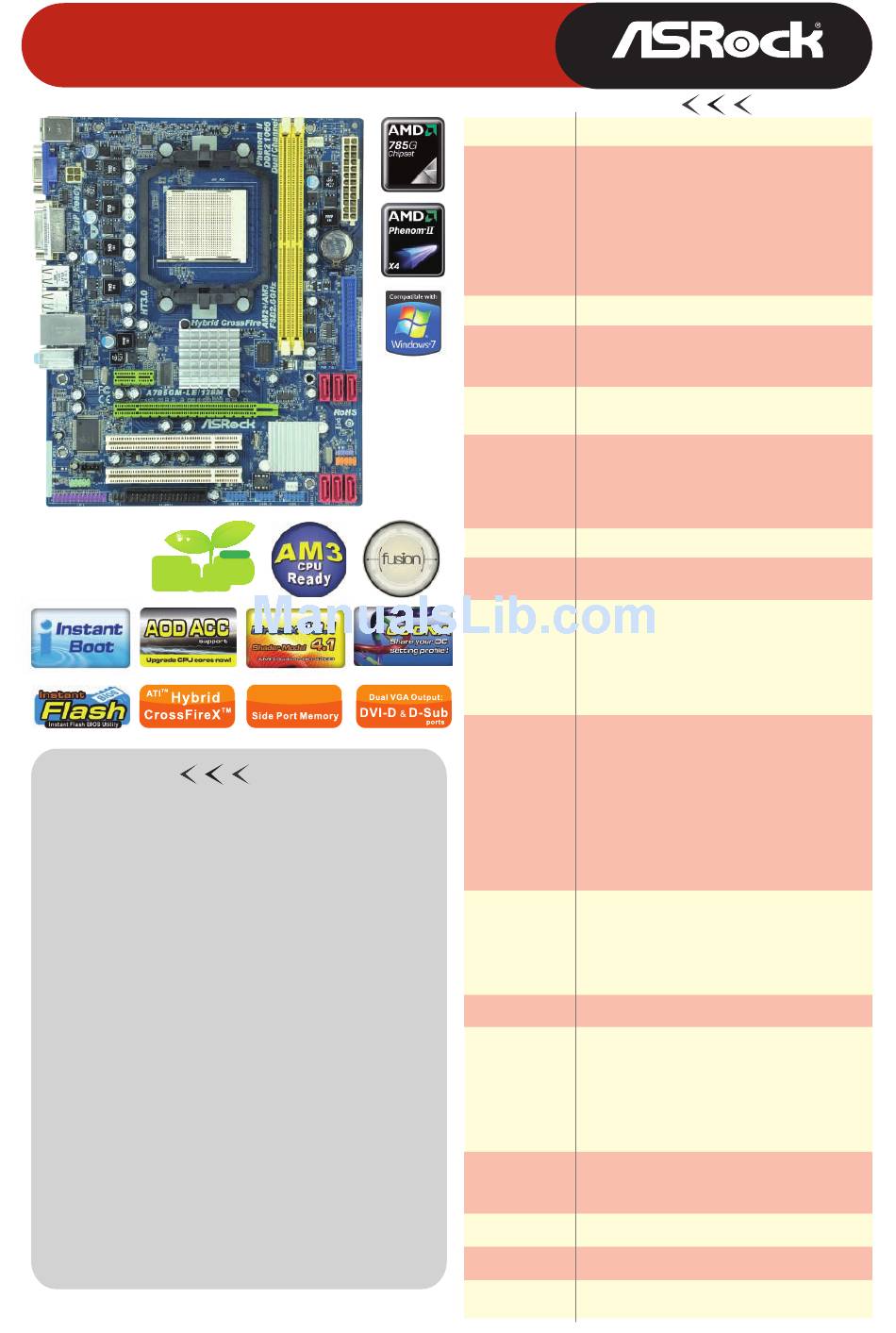

ASROCK A785GM-LE/128M Brochure

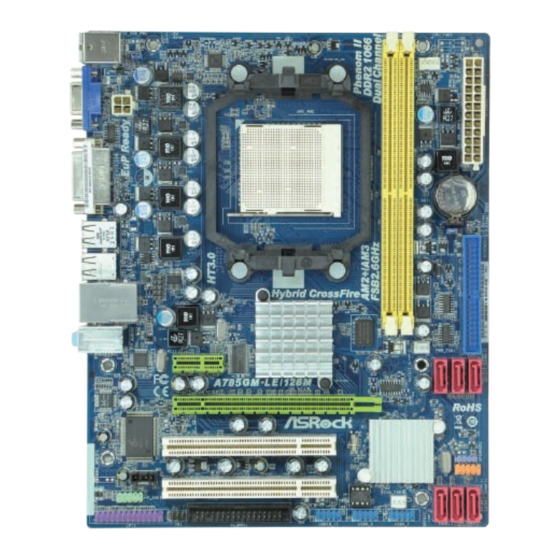

A785GM-LE/128M
AMD 785G + SB710 Chipsets
EuP EuP
Product Brief
- Supports AMD OverDrive™ with ACC feature
(Advanced Clock Calibration)
- Integrated AMD Radeon HD 4200 graphics,
DX10.1 class iGPU, Shader Model 4.1,
Max. shared memory 512MB
- Supports ATI™ Hybrid CrossFireX™, Built-in
128MB SidePort Memory
- Dual VGA Output: D-Sub, DVI-D
- EuP Ready
- Supports ASRock Instant Boot, Instant Flash,
Smart BIOS, ASRock OC Tuner,
Intelligent Energy Saver, OC DNA
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
Ready
128MB
ww w.a s ro ck. c o m
Detail Specification
Platform - Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm
CPU
- Support for Socket AM2+ / AM2 processors: AMD Phenom
FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon
X2 Dual-Core / Athlon 64 / Sempron processor
- Support for AM3 processors: AMD Phenom
and Athlon II X4 / X3 / X2 processors
- Supports AMD OverDrive™ with ACC feature (Advanced
Clock Calibration)
- Supports AMD's Cool 'n' Quiet Technology
- FSB 2600 MHz (5.2 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport 3.0 (HT 3.0) Technology
Chipset
- Northbridge: AMD 785G
- Southbridge: AMD SB710
- Dual Channel DDR2 memory technology
Memory
- 2 x DDR2 DIMM slots
- Supports DDR2 1066/800/667/533 non-ECC, un-buffered
memory
- Max. capacity of system memory: 8GB
- 1 x PCI Express 2.0 x16 slot (green @ x16 mode)
Expansion Slot
- 1 x PCI Express 2.0 x1 slot
- 2 x PCI slots
- Supports ATI
- Integrated AMD Radeon HD 4200 graphics
Graphics
- DX10.1 class iGPU, Shader Model 4.1
- Max. shared memory 512MB
- Integrated 128MB side port memory for iGPU
- Dual VGA Output: support DVI-D and D-Sub ports by
independent display controllers
- Supports HDCP function with DVI-D port
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback
Audio
- 5.1 CH Windows
(ALC662 Audio Codec)
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111DL
- Supports Wake-On-LAN
Rear Panel I/O I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
Connector
- 6 x Serial ATAII 3.0 Gb/s connectors, support RAID (RAID 0,
RAID 1, RAID 10 and JBOD), NCQ, AHCI and "Hot Plug"
functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x Print port header
- 1 x COM port header
- CPU/Chassis/Power FAN connector
- 24 pin ATX Power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
BIOS Feature
- 8Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- VCCM, NB Voltage Multi-adjustment
- Supports Smart BIOS
- Drivers, Utilities, AntiVirus Software (Trial Version), AMD
Support CD
OverDrive
TM
- ASRock OC Tuner
Unique Feature
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- ASRock AM2 Boost: ASRock Patented Technology to
boost memory performance up to 12.5%
Hardware Monitor - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
OS
- Microsoft Windows
®
Vista / Vista
TM
Certifications
- FCC, CE, WHQL
- EuP Ready (EuP ready power supply is required)
- Quick Installation Guide, Support CD, I/O Shield
Accessories
- ATA 133 cable
- 1 x SATA data cable (optional)
II X4 / X3 / X2
TM
Hybrid CrossFireX
TM TM
Vista™ Premium Level HD Audio
®
Utility, AMD Live! Explorer, AMD Fusion
XP / XP Media Center / XP 64-bit /
®
64-bit / Win7 compliant
TM
TM
