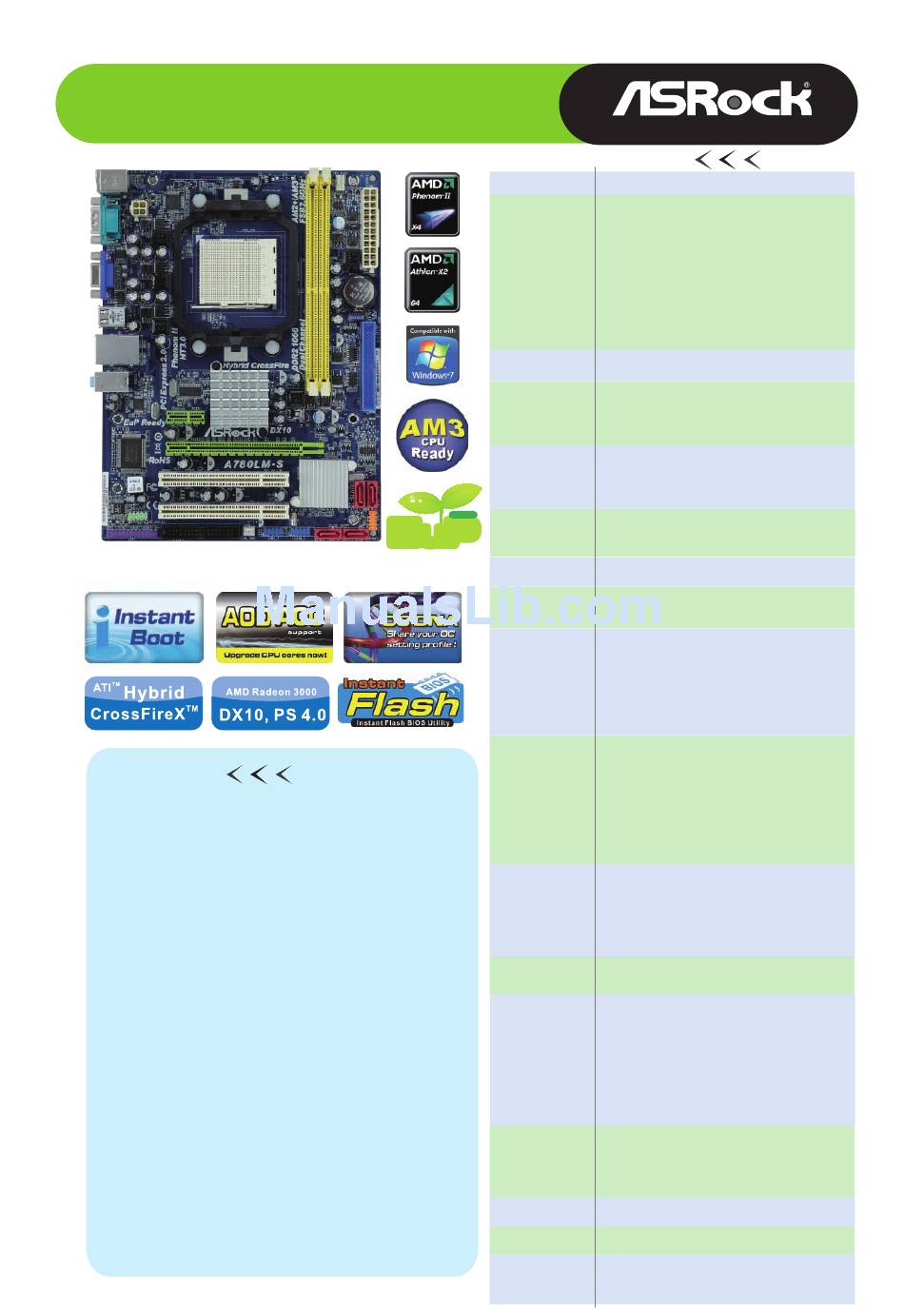

ASROCK A780LM-S Brochure

A780LM-S
AMD RS780L (760G) + SB710 Chipsets
Product Brief
- Supports AMD OverDrive™ with ACC feature
(Advanced Clock Calibration)
- Integrated AMD Radeon 3000 graphics,
DX10 class iGPU, Pixel Shader 4.0
- Supports ATI™ Hybrid CrossFireX™
- EuP Ready
- Supports ASRock Instant Boot, Instant Flash,
OC DNA, ASRock OC Tuner (Up to 145% CPU
frequency increase)
- Supports Smart BIOS, Intelligent Energy
Saver (Up to 114 % CPU Power Saving)
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
Detail Specification
Platform
CPU
Chipset
Memory
Expansion Slot
EuP EuP
Ready Graphics
Audio
LAN
Rear Panel I/O
Connector
BIOS Feature
Support CD
Unique Feature
Hardware Monitor
OS
Certifications
Accessories
www.as rock.com
- Micro ATX Form Factor: 9.6-in x 7.2-in, 24.4 cm x 18.3 cm
- Support for Socket AM2+ / AM2 processors: AMD
Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
TM
Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron
processor
- Support for AM3 processors: AMD Phenom
X2 and Athlon II X4 / X3 / X2 processors
- Supports AMD OverDrive™ with ACC feature (Advanced
Clock Calibration)
- AMD LIVE! Ready
TM
- Supports AMD's Cool 'n' Quiet Technology
- FSB 2600 MHz (5.2 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport 3.0 (HT 3.0) Technology
- Northbridge: AMD RS780L (760G)
- Southbridge: AMD SB710
- Dual Channel DDR2 memory technology
- 2 x DDR2 DIMM slots
- Supports DDR2 1200 (OC)/1066/800/667/533 non-ECC,
un-buffered memory
- Max. capacity of system memory: 8GB
- 1 x PCI Express 2.0 x16 slot (green @ x16 mode)
- 1 x PCI Express 2.0 x1 slot
- 2 x PCI slots
- Supports ATI Hybrid CrossFireX
TM TM
- Integrated AMD Radeon 3000 graphics
- DX10 class iGPU, Pixel Shader 4.0
- Max. shared memory 512MB
- 5.1 CH Windows ® Vista™ Premium Level HD Audio
(ALC662 Audio Codec)
- Realtek PCIEx1 LAN 8103EL / 8102EL
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x VGA Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
- 4 x Serial ATAII 3.0 Gb/s connectors, support RAID
(RAID 0, RAID 1 RAID 10 and JBOD), NCQ, AHCI and
"Hot Plug" functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x Print port header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- 8Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, VCCM, NB Voltage Multi-adjustment
- Supports Smart BIOS
- Drivers, Utilities, AntiVirus Software (Trial Version), AMD
OverDrive Utility
TM
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- ASRock AM2 Boost: ASRock Patented Technology
to boost memory performance up to 12.5%
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
- Microsoft Windows XP / XP Media Center / XP 64-bit /
® ®
Vista / Vista 64-bit / Win7 compliant
TM TM
- FCC, CE, WHQL
- EuP Ready (EuP ready power supply is required)
- Quick Installation Guide, Support CD, I/O Shield
- ATA 133 cable
- 1 x SATA data cable (optional)
II X4 / X3 /
