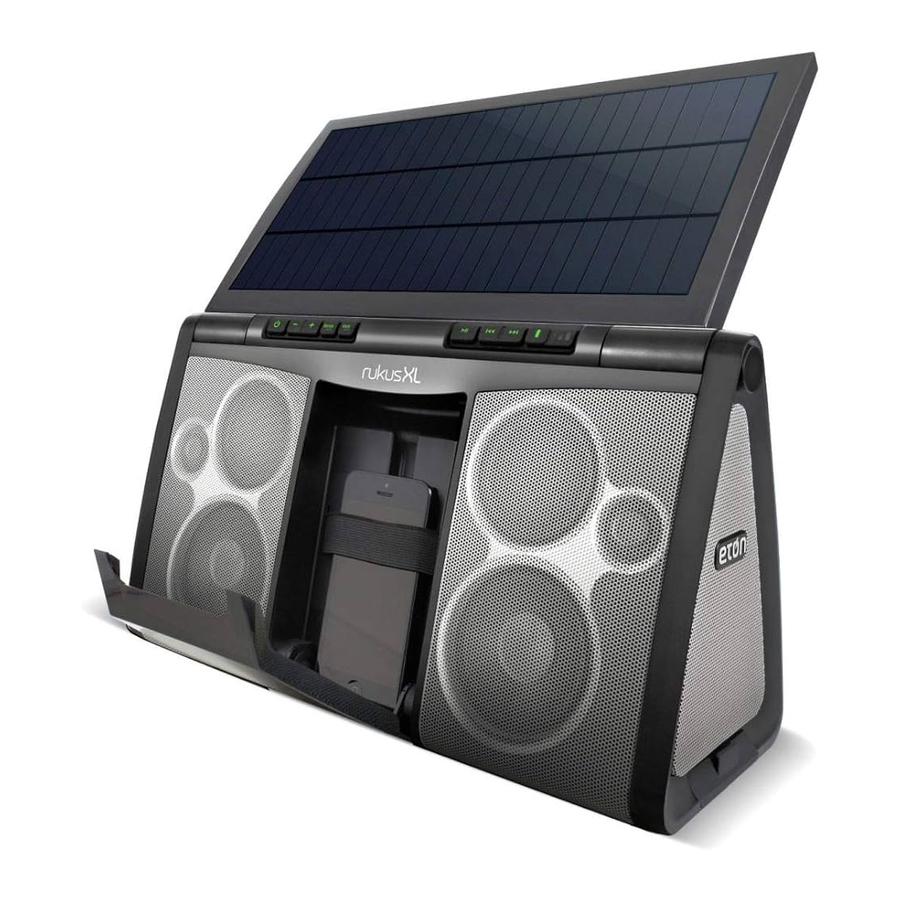

Eton rukus XL - Sound System Manual

The Rukus XL is powered from the rechargeable Li-ion battery charged by the solar panel or the AC adapter (included).

WHAT'S IN THE BOX

PRODUCT FUNCTIONS

Charge On/Off
Charge standby switch. Turn 'Off' when unit not in use to conserve the battery life of the device.

LET'S GET STARTED

1. Press the ON/OFF button

2. Icons will sequentially flash

3. Press and hold to view battery life


Pressing and holding the button shows the condition of the Li-ion battery. The Li-ion battery (SW9) starts charging once the AC adapter is plugged in or when the solar panel is in direct sunlight.

PLUGGING IN THE AC ADAPTER

The Rukus XL comes equipped with an AC adapter. Plug the AC adapter into the right socket labeled DC located under the rubber plug on the side of the Rukus XL. Plug the other end into an AC socket. With the AC adapter plugged in, the Rukus XL starts charging its Li-ion battery and is ready to play.

CONNECTING YOUR BLUETOOTH DEVICE

Press and HOLD the ON/OFF Power button for 3 seconds (until you hear the beep).

CHARGING A SMARTPHONE OR OTHER USB DEVICE THROUGH USB PORT

The smartphone or USB device starts charging once it is inserted into the USB port. When the Rukus XL's POWER is OFF it can still charge your device. Please be advised that leaving your device after it has received a full charge from the Rukus XL, if <charge> is still set 'ON', it will continue to drain the Rukus XL's internal battery.

ADJUSTING THE VOLUME

Press the volume buttons, , to increase or decrease volume levels or control it on your Bluetooth® device.

BASS BOOST FUNCTION

Press the button to turn on Bass Boost.

AUX

The button switches between Bluetooth¨ device and AUX-input if there is a signal from the AUX-In port. The Bluetooth signal takes priority if there is a Bluetooth signal and an audioin signal at the same time. If the audio-in signal is present, the switching function of the 'AUX' button is available. The AUX light turns on when auxiliary input is being used.

PLAY/PAUSE

Pressing the button switches from play to pause for the the Bluetooth device, or control it directly on your device.

FWD/REW

Pressing these buttons, , selects previous track/next track with a short press; hold down to scrub forward/reverse or control it directly on your Bluetooth device.

REPLACING THE LITHIUM-ION BATTERY

A new rechargeable battery can be purchased by contacting us at www.etoncorp.com or by calling (US) 1-800-872-2228 or (Worldwide) 650-903-3866.

WARRANTY REGISTRATION

To ensure full warranty coverage or product updates, registration of your product should be completed as soon as possible after purchase or receipt.
Please go to http://http://www.etoncorp.com/productregistration to register your product.

SERVICE FOR YOUR PRODUCT

To obtain service for your product, we recommend first contacting an Etón service representative at 800-872-2228 US, 800-637-1648 Canada or (650) 903-3866 for problem determination and trouble-shooting. If further service is required, the technical staff will instruct how to proceed based on whether the radio is still under warranty or needs non-warranty service.

DO YOU NEED HELP?

If you need help, please contact us, Monday-Friday, 8:00 a.m.- 4:30 p.m., North American Pacific Standard Time.

US:
1-800-872-2228

CANADA:
1-800-637-1648

WORLDWIDE:
650-903-3866

FAX:
650-903-3867

WARNING

• Do not expose this appliance to rain or moisture.
• Do not submerge or expose for extended period to water.
• Protect from high humidity and rain.
• Only operate within specified temperature range (0°C to 40°C).
• Unplug immediately if liquid has been spilled or any object has fallen into the apparatus.
• Clean only with a dry cloth.
• Do not use detergents or chemical solvents as this might damage the finish.
• Unplug and disconnect external antennas during lightning storms.
• Do not remove cover [or back].
• Refer servicing to qualified service personnel.
