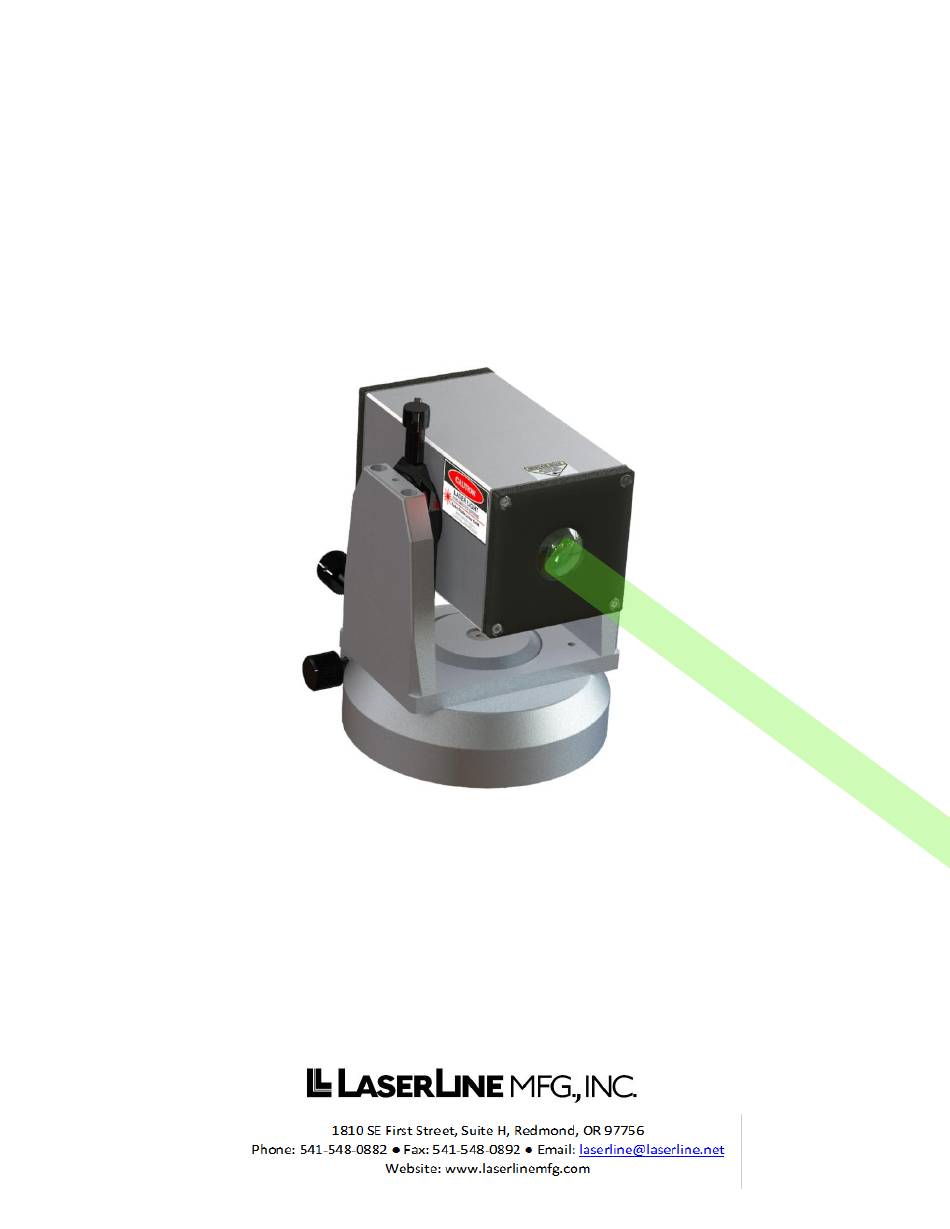

- Page 1 LaserLine Mfg., Inc. GL3000PMT-S Owner’s Manual Long Range Alignment Laser Rev. 4.2.24a...
-
Page 2: Product Description
The maximum power output of this laser is less than 4.75mW for U.S. compliance. A laser safety kit is supplied with the GL3000PMT-S laser. The kit contains operator qualification cards and a sign that should be posted near the laser whenever it is in use. - Page 3 50 years of global laser use. Maintenance The GL3000PMT-S requires no maintenance other than periodically cleaning the laser output lens. Use a soft cloth with Windex or alcohol. *NOTE: Laser must be turned OFF when cleaning the lens, so as not to create unwanted laser refraction.
- Page 4 GL3000PMT-S LABELS The labels required for this product are: Purge Valve Label Identification & Certification Label State of California Prop 65 Label Aperture Label Warning Label Hazard Symbol...
- Page 5 OSHA REQUIRED (USA ONLY) Precautions for Handling Instrument Carry the instrument in its case whenever transporting it between jobs. When carrying the instrument while on a tripod, do not carry it over the shoulder, but cradled in an underarm position. The instrument should never be lifted for carrying until a security check is made of all fasteners, especially the tripod head mounting bolt.
- Page 6 Quick Start Set up and Operation 1. Mount the GL3000PMT-S on any flat surface using a 5/8-11 bolt through a plate. Be sure the engagement length of the threads does not exceed 7/16”. 2. Start power up procedure by connecting the military power cord connector to the 3-pin connector on the rear laser panel.
- Page 7 Mechanical Features and Accessories ❷ ❻ 1. IP68 Rated-Waterproof-Purge valve filled w/ 7lbs of dry nitrogen ❶ 2. Military Spec ¼ turn 3-pin power connector 12Vdc ❼ 3. Instrument Mount 5/8-11 ❹ 4. Horizontal lock knob ❺ 5. Horizontal tangent fine adjustment knob ❸...
-
Page 8: Specifications
Specifications Laser • Laser Wavelength 515-520nm • Laser Power: 4.75mW • U.S.A: ‘Class IIIa’ in the U.S. under US FDA/CDRH 21 CFR, part I, Subchapter J, sections 1040.10 and 1040.11 • This product is ANSI Z136 compliant and should be operated under the terms of ANSI Z136.1 (Visit www.ANSI.org or www.lia.org for more in-depth information) •... -
Page 9: Out Of Warranty Repairs
1 year from the date of purchase, except as noted herein. LaserLine Mfg., Inc. liability under this warranty is limited to repairing or replacing any product returned to an authorized service center for that purpose. Any evidence of attempts to repair this unit by other than factory authorized personnel automatically voids the warranty. - Page 10 LaserLine Mfg., Inc. 1810 SE First Street Ste. H Redmond, OR 97756 Phone: 541-548-0882 Email: laserline@laserline.net Website: www.laserlinemfg.com...
