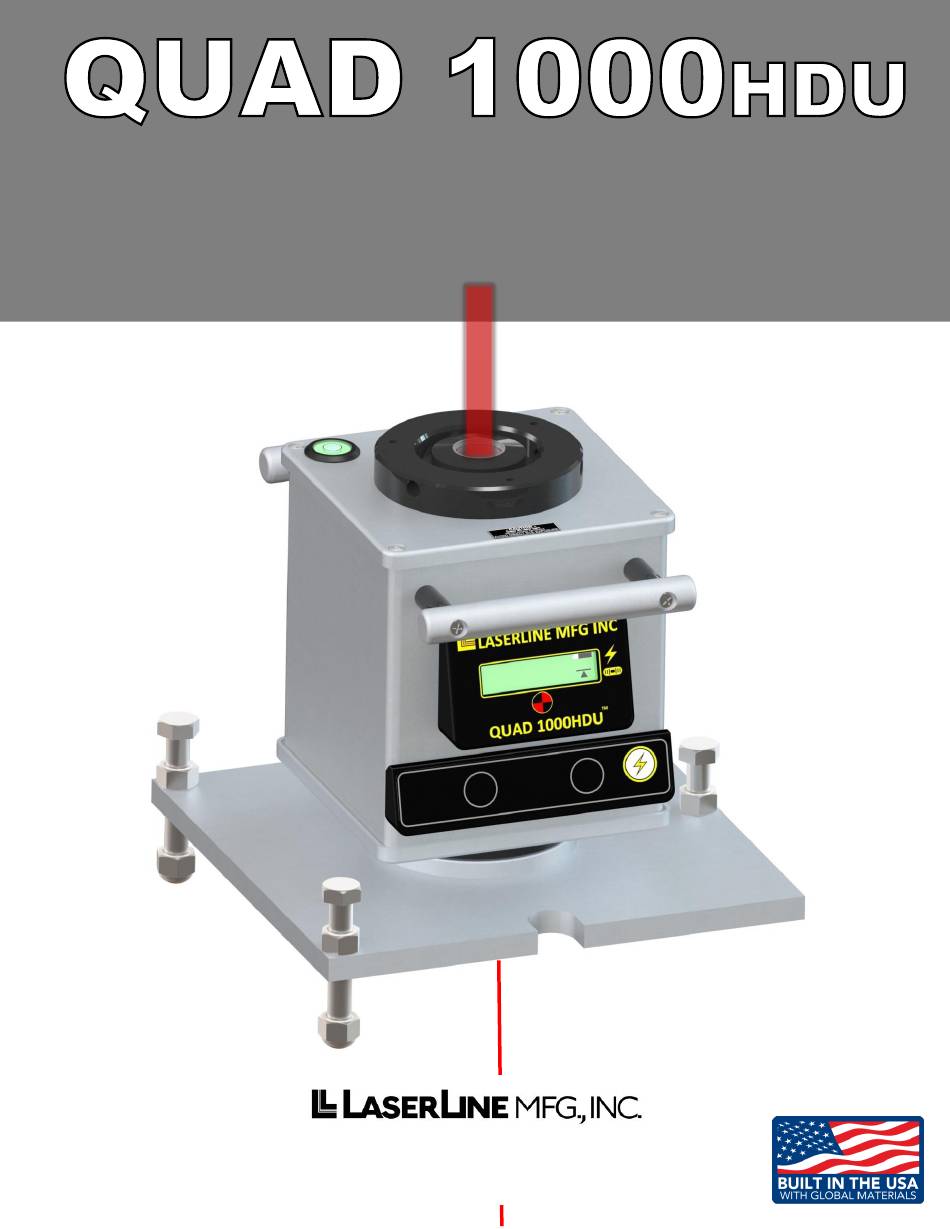

- Page 1 Rev: 2.28.19 Rev 3.11.19 VERTICAL CONTROL LASER OWNERS MANUAL P/N 3003-1041 1810 SE First Street, Suite H, Redmond, OR 97756 Phone: 541-548-0882 ● Fax: 541-548-0892 ● Email: laserline@laserline.net Website: www.laserlinemfg.com...

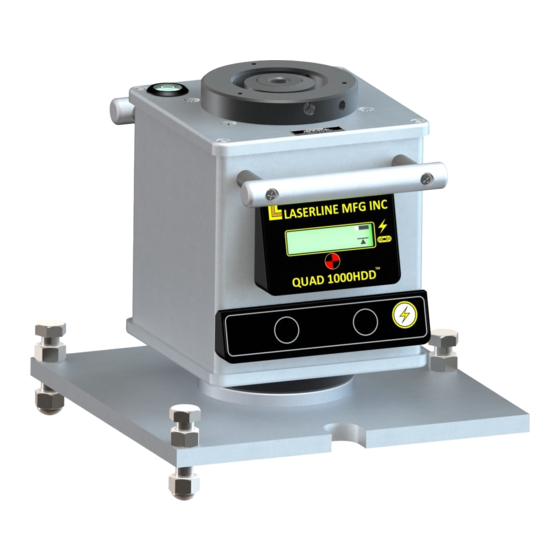

- Page 2 QUAD 1000HDU Laser Package Includes: QUAD 1000HDU Laser P/N 4003-0000-U 5 arc second zenith (Upward) laser featuring electronic servo self-leveling with variable temperature compensation for the most accurate and consistent readings. Features a downward shooting plumb laser for getting over your point. Upward zenith laser up to 2,000 feet (610m) and one button operation with bright backlit LCD display.
- Page 3 OVERVIEW The Quad 1000HDU projects a precise laser beam straight up (Zenith) to 2,000 feet/610m for the purpose of providing plumb control for your project. It also features a short range downward shooting laser beam that is used like a plumb-bob or optical tribrach to easily get directly over your point.
- Page 4 WHAT HAPPENS WHEN YOU POWER-UP? The Quad 1000HDU is activated and controlled by a single button. When you push the power button, the unit begins to self- level. Leveling status and battery power are displayed on the LCD screen. The downward shooting smaller beam (plumb-bob) is activated and will be blinking.
-
Page 5: Using A Tripod
SETTING UP Note: Always set the Quad 1000HDU on the ground floor or lowest floor possible and leave it in that location for the duration of the job. Do not move the Quad 1000HDU up from floor to floor as the building progresses. This can create compounding errors. - Page 6 ALIGNMENT / TEMPLATE TARGETS (2ea.) A) They can be used as a centering template for floor/deck marking as described above. (4 template notches) B) The targets are made of a translucent material allowing the laser spot to be read from the opposite side that the laser spot is impacting the target face.
-
Page 7: Maintenance
Quad 1000HDU. (At least 100 feet if possible) Secure the target so it will not move. 3. Rotate the Quad 1000HDU 180°; If using a tripod, make sure you are still positioned over your reference point. 4. Go back to the target and measure any change of the laser spot relative to the bulls-eye target. - Page 8 LABELS (Required for this product) Aperture Label (Top) Non-Interlocked Warning Label (Top) Explanatory and Warning Label-Hazard Symbol Identification and Certification Aperture Label (Bottom)
-
Page 9: Laser Specifications
LASER SPECIFICATIONS Self-leveling: Electronic servo with variable temperature compensation Plumb beam accuracy: ±5 arc seconds (± 1/32 inch per 100 feet) (.793mm per 30.48 meters) Range: Upward (Zenith) 2,000 feet (610 meters) Laser “Up” spot size: At Source = .87” (2.2cm) 1000 feet (305m) = 1.1”... -
Page 10: Warranty
This product is guaranteed against defects in materials and workmanship for both parts and labor, under normal working conditions for two years from the date of purchase, except as noted herein. LaserLine Mfg., Inc. liability under this warranty is limited to repairing or replacing any product returned to an authorized service center for that purpose. - Page 11 NOTES...
