Kogan KAPWDBIDETA User Manual

Kogan KAPWDBIDETA User Manual

Smart wash & dry electric bidet toilet seat
Hide thumbs Also See for KAPWDBIDETA:
Table of Contents

Advertisement

Quick Links

Download this manual
SMART WASH & DRY ELECTRIC
BIDET TOILET SEAT
KAPWDBIDETA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KAPWDBIDETA and is the answer not in the manual?

Questions and answers

Related Manuals for Kogan KAPWDBIDETA

Summary of Contents for Kogan KAPWDBIDETA

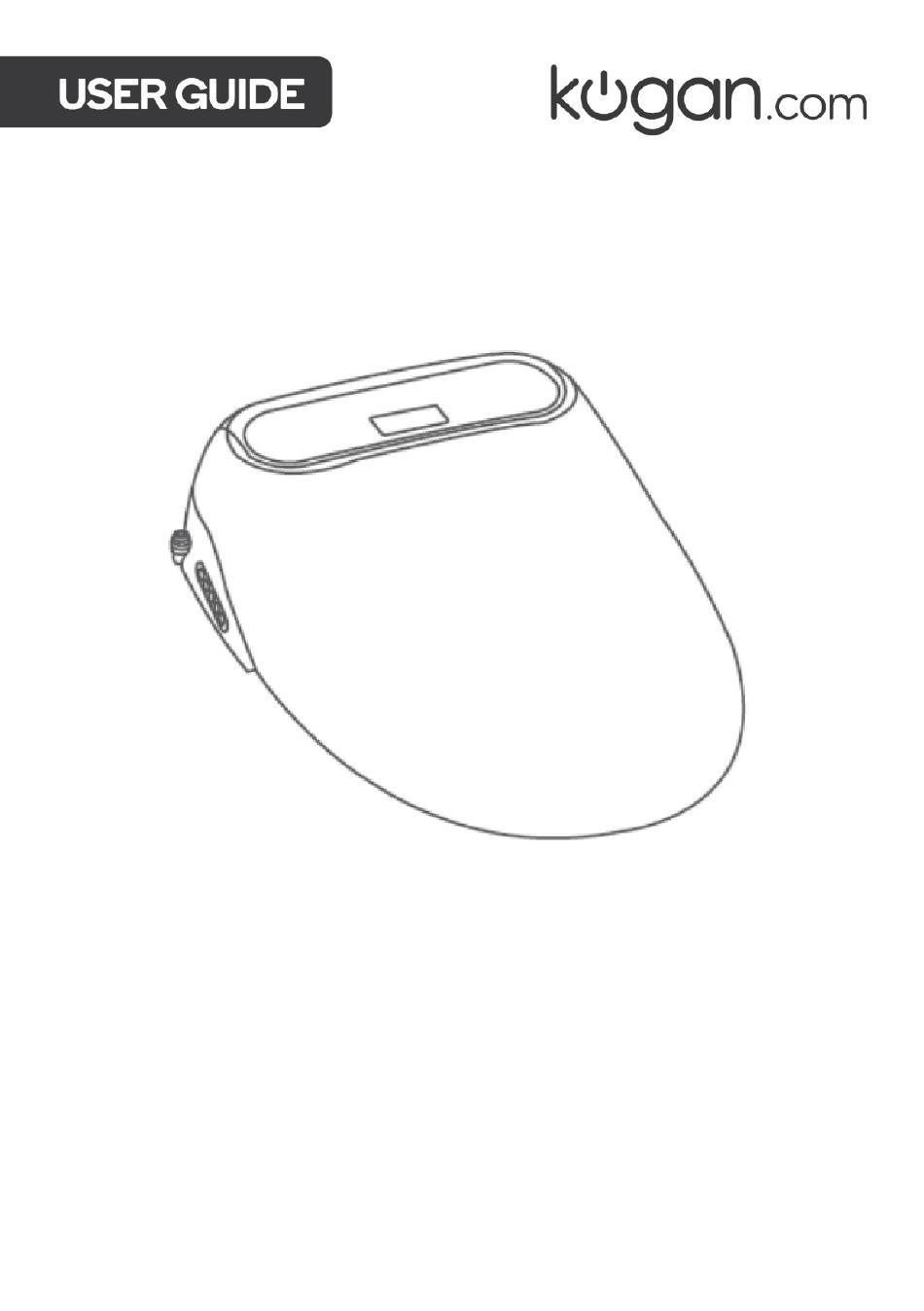

  • Page 1 SMART WASH & DRY ELECTRIC BIDET TOILET SEAT KAPWDBIDETA...

  • Page 2: Table Of Contents

    Safety & Warnings Dimensions Components Overview Installation Operation Cleaning & Care Specifications Troubleshooting...

  • Page 3: Safety & Warnings

    SAFETY & WARNINGS Read all instructions before use and retain this user guide for future reference. Read all following safety precautions carefully before use. All images within this user guide are for reference only, refer to the actual product. Symbols on the product and in this user guide: Warning: Failure to follow instructions with this symbol may WARNING! result in serious injury or death.
  • Page 4 Smoke Unusual heating Block Fall out of the cushion • The continued used of the product, by ignoring the above faults, may result in fire, electric shock, heat, short circuit, injury and indoor water seepage. • Do not use any type of water except tap water or drinkable well water (underground water).
  • Page 5 When removing the plug from wall outlet, remove by holding the plug. Do not pull on the cord. • If the power soft wire is broken, cease use immediately and contact Kogan.com for replacement or repair. • Turn off the power before doing any general maintenance or spot checks. Nozzle clean will require power to check.
  • Page 6 • To avoid sudden water leakage, do not remove the water inlet filter when angle valve is open. Refer to Cleaning & Care section of this user guide. • Do not crush or bend water inlet hose, as it may cause water leakage. •...

  • Page 7: Dimensions

    DIMENSIONS...

  • Page 8: Components

    COMPONENTS Ensure you have all of the components listed in this user guide before disposing of any packaging. Bidet User guide Stainless steel braided tube T-valve with filter Seat bracket Spanner Mounting bolts Rubber sleeves Metal gasket Rubber gasket (x2) (x2) (x2) Remote control...

  • Page 9: Overview

    OVERVIEW Cushion pad Toilet lid Damper Dryer Water inlet outlet Rear wash hole Control panel Front wash hole Seat Note: Ensure the screen protector is removed prior to first use.

  • Page 10: Installation

    INSTALLATION Precautions before Installation • Before installation, ensure toilet wall, floor tiles & ceramic toilet have all been completed. The bathroom should have water and power supply available nearby the toilet. • Water pressure should be between 0.06Mpa (flow) - 0.75MPa (Static), water temperature 5°C - 35°C.
  • Page 11 Remove original toilet seat: Bolt • Loosen bolts with the spanner. • Remove the nut and gasket. • Remove the toilet seat. Toilet seat Gasket Nuts Release • Before the installation, place the product on the toilet bowl to check for correct fitment.
  • Page 12 Installing the bidet: • Aim the bottom card slot of the seat to the edge Seat of seat bracket, slide in gently. You will hear a bracket • Ensure the bidet fits into the area before placing, Bidet then lift bidet to fit it in the correct position. •...
  • Page 13 • Ensure the installation area is thoroughly cleaned and dry before proceeding. • Apply the supplied double sided tape to the rear of the remote bracket. • Adhere the remote control bracket to the wall, pressing firmly. Allow the remote bracket to bond for 15 minutes before placing the remote control in it.

  • Page 14: Operation

    OPERATION Preparation for Water Supply and Test for Operation Insert the power plug into the power outlet. When the indicator light is on, water starts to flow into the inner water tank. The process will take approximately 11 seconds. Water then sprays out from the nozzle. All indicator lights will then turn off with a sound.
  • Page 15 If the power light on the product indicator panel is not lit, all functions will be unavailable. Press the power button on the control panel to activate. This product is controlled mainly using the remote control, with the control panel serving as a secondary measure.
  • Page 16 Remote Control...
  • Page 17 Rear wash/Oscillating: Press this button and the rear wash nozzle will extend for operation. Press again to change to rear oscillating cleansing. The #1 indicator will blink on the remote control, while the nozzle repeatedly swings back and forth. Press again to stop oscillating cleansing and switch back to rear wash.
  • Page 18 Standby mode means that the toilet seat is in an operational state. The toilet seat is not in the state of washing, drying, nozzle self-cleaning, etc. Water temperature adjustment: The water temperature can be adjusted between 4 different levels. Press th button to cycle through the preset temperatures.
  • Page 19 Lady care: begin operation. The nozzle extends out and the water temp is set to the highest level (39°C). Water temperature and pressure is not adjustable however the nozzle position can be adjusted to suit your needs. This operation automatic ends after 2 minutes or when the Child wash: front wash nozzle extends out with nozzle position at the front.
  • Page 20 When the power is on, the indicator turns on. If there is something wrong with the flushing components, the indicator light will blink. When the water is heating, the indicator light is on. If it is over heated, the indicator light will blink.

  • Page 21: Cleaning & Care

    CLEANING & CARE Toilet bowl cleaning • Ensure the power is switched off at the power outlet and plug removed prior to cleaning. • Use a damp, soft cloth to wipe the toilet shelf and seat. Dirt should be cleaned as soon as possible.
  • Page 22 When the water pressure becomes low or insufficient, the filter will need to be cleaned. Close the water inlet valve to stop the water supply. Do not remove the filter without closing the valve. Otherwise, water will spray out. Remove the T-valve filter. Unscrew the connector using a spanner and then remove the filter.
  • Page 23 Clean the filter. Remove the filter and clean it thoroughly. Rinse off dirt or clean the filter with a toothbrush. • Do not use any cleaning agents. Clean it with water only. • Do not use excessive force when cleaning, otherwise the filter will be deformed or damaged, affecting normal use.
  • Page 24 If the batteries are running low, the remote control can become unresponsive. You should replace the battery at this point. Remove the battery compartment cover and discard the old batteries. Insert x2 AAA alkaline batteries paying attention to the polarity symbols. Replace the battery compartment cover.

  • Page 25: Specifications

    SPECIFICATIONS Rated voltage AC 220-240V, 50Hz 1200W (When the inflow water is 15 degrees, set the Rated power consumption outflow temperature and strength to the maximum.) Power cord length 1.5m Dimensions 508 x 381 x 125mm Water pressure range 0.06MPa (dynamic)-0.75MPa (Static) Water pressure adjustment Adjustable in 4 levels Water temperature...

  • Page 26: Troubleshooting

    Fixed bolts are loose. Tighten the bolts. No response when Reboot or contact Key fault. pressing the key. Kogan.com for assistance. Check whether the water supply to bidet is normal. uzz three times The heater has entered Disconnect the power and and then turns off.
  • Page 27 NOTES...
