CPH-200
Control Panel Hub
BSH-200
Base Station Hub
Setup Manual
CPH-200/BSH-200 0512 VOL1 (E)





Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPH-200 and is the answer not in the manual?

Questions and answers

Related Manuals for Ikegami CPH-200

Summary of Contents for Ikegami CPH-200

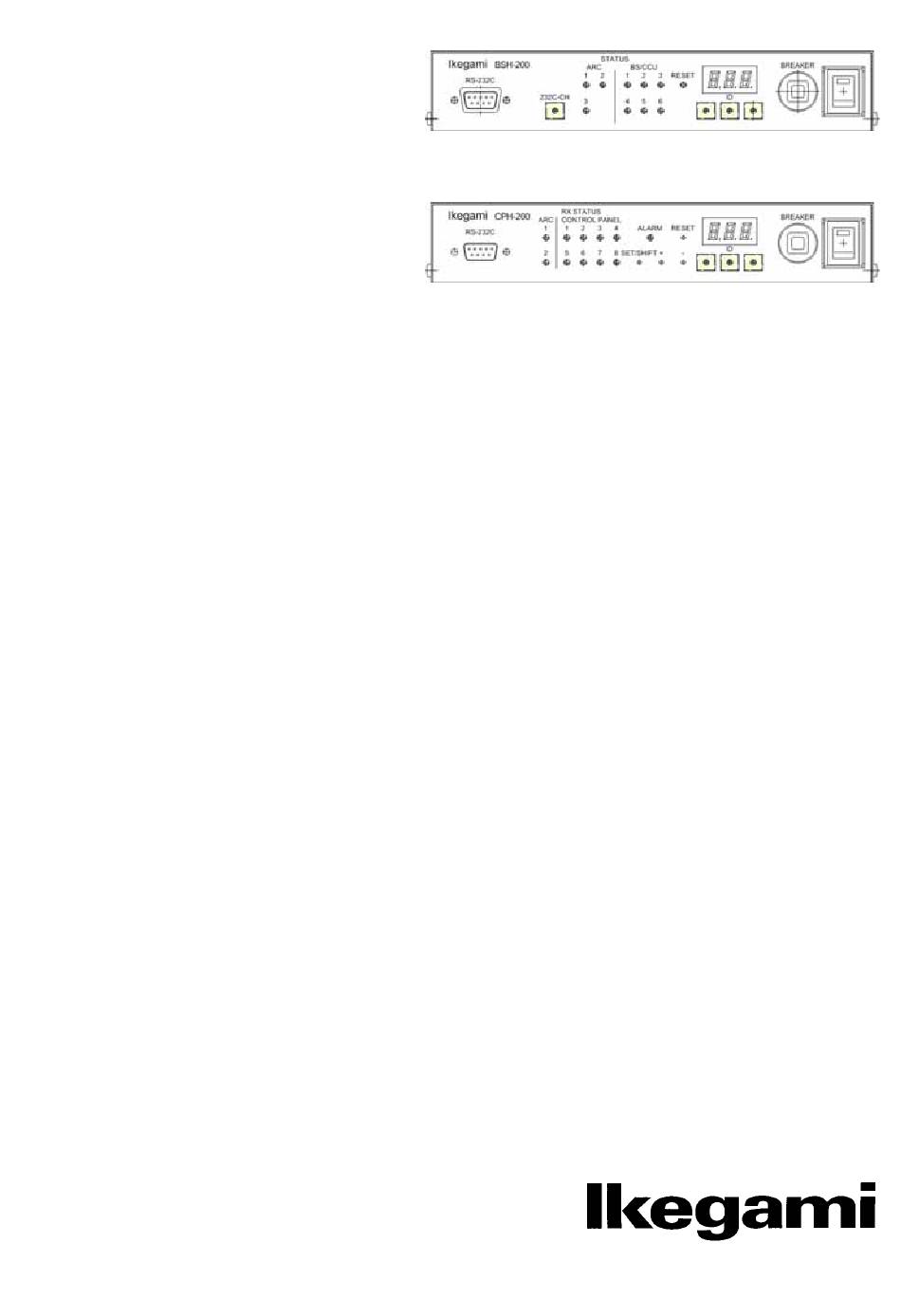

  • Page 1       CPH-200  Control Panel Hub  BSH-200   Base Station Hub    Setup Manual    CPH-200/BSH-200 0512 VOL1 (E)
  • Page 2   CPH-200/BSH-200 0512 VOL1 (E)

  • Page 3: Table Of Contents

    4) MCP-200 Setup……………………………………………………………………… 3-5 5) Example of Network ID Setup …………………………………………………… 3-6 4. Connection……………………………………………………………………………………… 4- 1 1) Connection between BSH-200 and BS/CCU……………………………………… 4-1 2) Connection between CPH-200 and network capable Control Panel………… 4-2 3) Connection between HUBs………………………………………………………… 4-3 CPH-200/BSH-200 0512 VOL1 (E)
  • Page 4   CPH-200/BSH-200 0512 VOL1 (E)

  • Page 5: Outline

    １．Outline   １．１  Outline  CPH-200 is designed as the HUB unit(CP HUB) for Ikegami’s network capable control system. And BSH-200 is designed as the HUB unit(BS HUB) of which employs command converter for Ikegami’s existing non-network capable BS/CCU to use under network control system.
  • Page 6   1-2  1. Outline 1.3 External Appearance  1)CPH-200 CPH-200/BSH-200 0512 VOL1 (E)
  • Page 7   1. Outline 1-3 2) BSH-200 CPH-200/BSH-200 0512 VOL1 (E)
  • Page 8   CPH-200/BSH-200 0512 VOL1 (E)
  • Page 9   2. Nomenclature and Functions 2-1 ２．Nomenclature and Functions Explanation shows on next double spread pages. CPH-200/BSH-200 0512 VOL1 (E)

  • Page 10: Cph-200

    3. CONTROL PANEL RX STARUS Indicator 4. ALARM Indicator 5. RESET Switch 6. Status Indicator 7. Circuit Breaker 8. Power Switch 9. Setup Switch 10. Network ID switch 11. AC Inlet 12. CP Connector 13. LAN Connector 14. Network Connector CPH-200/BSH-200 0512 VOL1 (E)
  • Page 11 Will light in case of something wrong with CP-HUB(CPH-200) or network. 5. RESET Switch This is the RESET switch for CP-HUB(CPH-200). If this unit is something wrong, it is possible to reset with this switch. Push this switch by thin tip of stick to reset.
  • Page 12 Refer Chapter 3.2 for detail setup. Left rotary switch is used for various setup. 11. AC Inlet This is AC Inlet connector for CP-HUB(CPH-200). AC100 to AC240V automatic sensing. 12. CP Connector Used for connection to network capable control panel.
  • Page 13   CPH-200/BSH-200 0512 VOL1 (E)

  • Page 14: Bsh-200

    3. ARC RX STATUS Indicator 4. BS/CCU STATUS Indicator 5. RESET Switch 6. Status Indicator 7. Circuit Breaker 8. Power Switch 9. Network ID Setup Switch 10. AC Inlet 11. BS/CCU Connector 12. Preview Connector 13. Network Connector CPH-200/BSH-200 0512 VOL1 (E)
  • Page 15 Will work when abnormal electric current is detected. In case of breaker button pops up, cure the problem and push breaker button to original position. 8. Power Switch For Power On/Off control. Green lamp of switch will light when power turns on. CPH-200/BSH-200 0512 VOL1 (E)
  • Page 16 Refer Chapter 3.2 for detail setup. Left rotary switch is used for various setup. 10. AC Inlet This is AC Inlet connector for CP-HUB(CPH-200). AC100 to AC240V automatic sensing. 11. BS/CCU Connector Used for connection to non-network capable control panel with CP Cable.

  • Page 17: Network

      3. Network 3-1 ３．Network In the Chapter 3, explanation shows for practical operation together with setup/connection manner of related equipments. 3.1 Concept image of Network    CPH-200/BSH-200 0512 VOL1 (E)

  • Page 18: Typical System Configuration

      3-2 3. Network 3.2 Typical System Configuration  1) 1 Studio and 2 Control Room Case     CPH-200/BSH-200 0512 VOL1 (E)
  • Page 19   3. Network 3-3 2) 2 Studio and 2 Control Case   CPH-200/BSH-200 0512 VOL1 (E)

  • Page 20: Network Id Setup

    As same as channel-2, 5 added number to the set ID on front panel reflects Channel-6 of command conversion block, then this will become ID for BS/CCU connected to connector-6. Please note ID is set to every channel even though BS/CCU is not connected. CPH-200/BSH-200 0512 VOL1 (E)

  • Page 21: Ocp-200 Setup

    To set ID with rotary switches located on connector panel of bottom side. In case of network connection, set “NET” with slide switch. 4) MCP-200 Set-up To set ID with rotary switches located on connector panel of bottom side. In case of network connection, set “NET” with slide switch. CPH-200/BSH-200 0512 VOL1 (E)

  • Page 22: Example Of Network Id Setup

    Although IDs for CP-HUB, OCP and MCP can be assigned by any numbering pattern, we recommend to decide your own numbering pattern by the system management point of view. ID for control panels of which connected to CP-HUB doesn’t apply automatic numbering function such as BS-HUB. CPH-200/BSH-200 0512 VOL1 (E)

  • Page 23: Connection

    Regarding to network connection, BUS Connection, Star Connection and Tree Connection are available. Although connection between BSH-200 and BS/CCU, CPH-200 and network capable control panel must be Star Connection, BUS connection, Star connection and mixed them of Star connection are available for connection between HUBs.

  • Page 24: Connection Between Cph-200 And Network Capable Control Panel

    4-2 4. Connection 2) Connection between CPH-200 and network capable Control Panel CPH-200 and network capable Control Panel are connected by Ikegami CP Cable and command is Ikegami network command(ICNP). CP Cable should be connected to CP Connector of CPH-200 and connected to Command Connector of Control Panel. Cable length should be from 1m to 30m(tentative specification).

  • Page 25: Connection Between Hubs

    And the both end of BUS should be terminated by 75ohm termination plug. Use 75ohm coaxial cable for the connection and the cable length of end to end of BUS should be from 1m to 280m(tentative specification). Maximum number of Node to be connected is ten for one BUS. CPH-200/BSH-200 0512 VOL1 (E)
