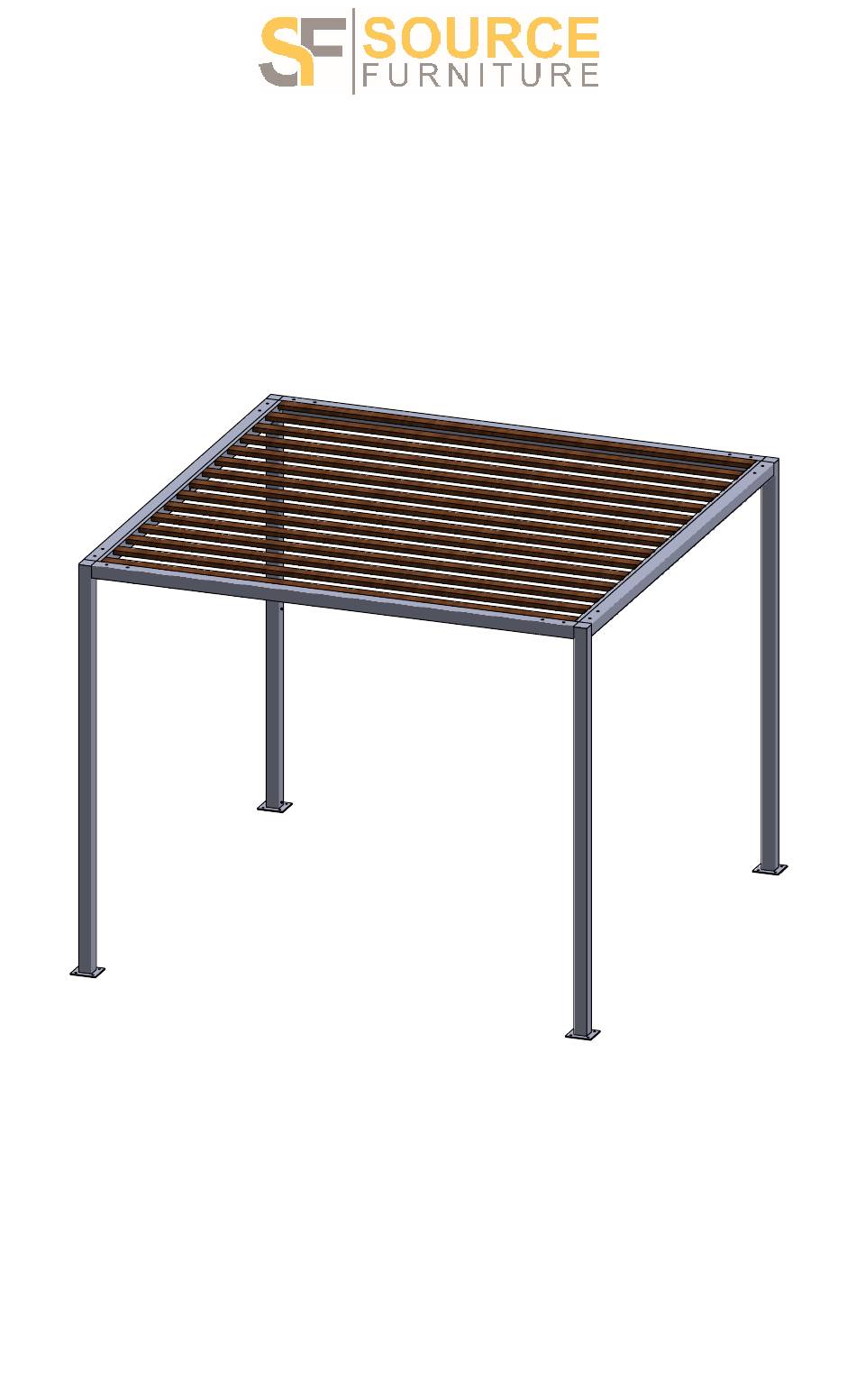

  • Page 1 INSTALLATION MANUAL BREEZE CABANA...
  • Page 2 INSTALLATION MANUAL BREEZE CABANA ITEM NO. DESCRIPTION QTY. VERTICAL SUPPORT TOP SLATS NOTE(S): - GROUND ANCHORS ARE NOT INCLUDED.
  • Page 3 INSTALLATION MANUAL BREEZE CABANA QTY: 4 QTY: 4 QTY: 2 QTY: 15 QTY: 16 QTY: 6 PARTS NOTE(S): - IDENTIFY ALL PARTS PACKED IN THE CARTON AGAINST THE PARTS LIST DO NOT - REMOVE ALL THE PROTECTIVE MATERIAL CAREFULLY AND USE A KNIFE TO PREVENT SCRACHING OF THE FURNITURE.

  • Page 4: Rear View

    INSTALLATION MANUAL BREEZE CABANA REAR VIEW STEP 1 - ASSEMBLE ON A SOFT, NON-ABRASIVE SURFACE, SUCH AS A BLANKET OR CARDBOARD TO AVOID DAMAGING THE CABANA. THIS IS A TWO PERSON BUILD SO FIND ASISTANCE TO ASSEMBLE. - LAYOUT PARTS AS SHOWN.

  • Page 5: Front View

    INSTALLATION MANUAL BREEZE CABANA FRONT VIEW STEP 2 - INSERT ITEM B INTO ITEM A ON BOTH SIDES AND SECURE WITH FLAT HAED SCREW 1/4"-20 X 1" Lg. (AS SHOWN)
  • Page 6 INSTALLATION MANUAL BREEZE CABANA STEP 1 STEP 2 FRONT VIEW STEP 3 - ATTACH ITEM B INTO STEPS 1 AND 2 AND SECURE WITH FLAT HEAD SCREW 1/4"-20 X 1" Lg. (AS SHOWN) - ATTACH ITEM C TO ITEM B AND SECURE WITH FLAT HEAD...
  • Page 7 INSTALLATION MANUAL BREEZE CABANA FRONT VIEW STEP 4 - SEPERATE ITEM A AND B SLIGHTLY TO ALOUD ITEM D TO BE SET IN PLACE. (AS SHOWN) - SECURE AS BEFORE WITH FLAT HEAD SCREW 1/4"-20 X 1" Lg.
