Summary of Contents for SOURCE FURNITURE SF-3801-656-10 IM

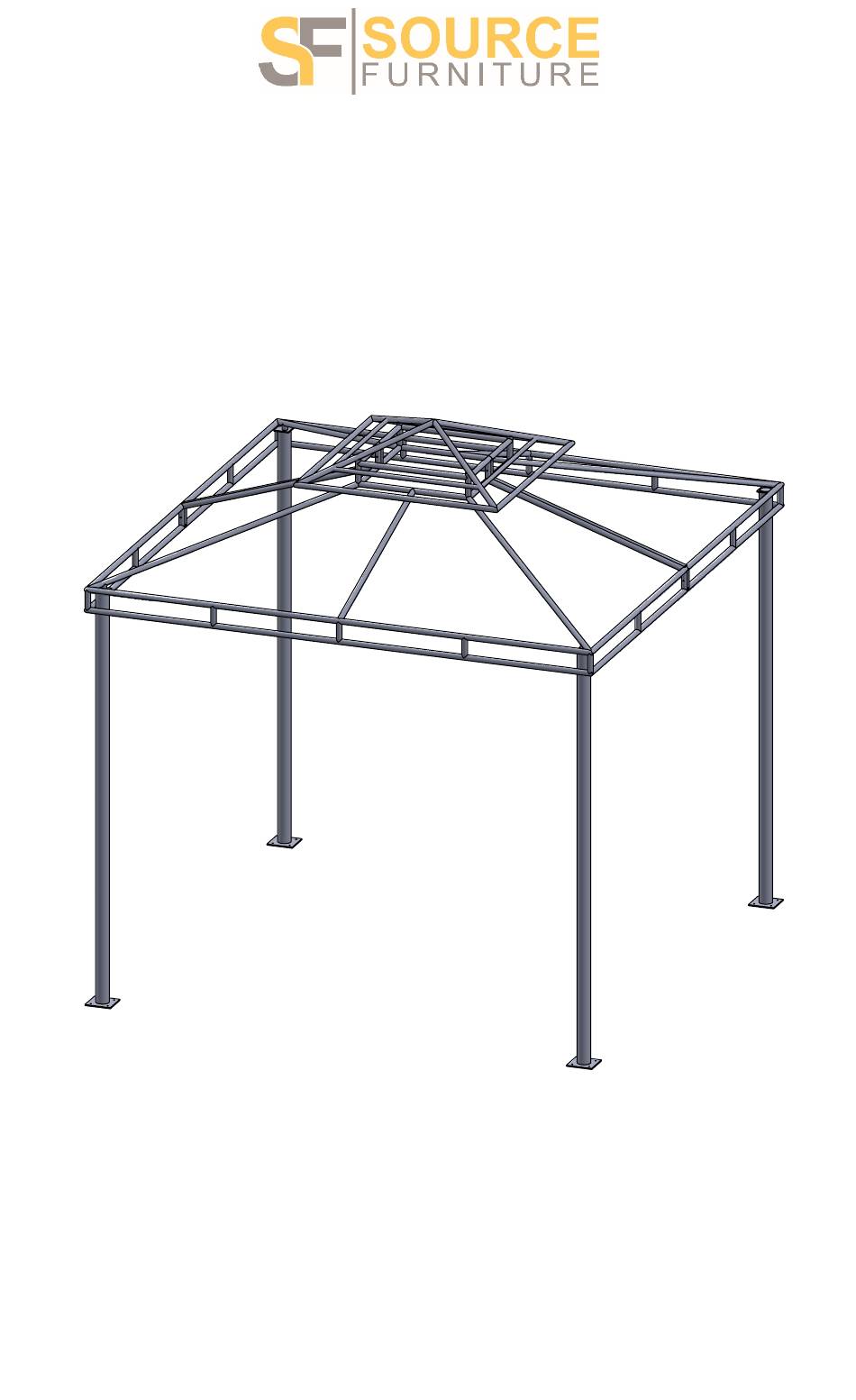

- Page 1 INSTALLATION MANUAL OASIS VENTED CABANA 10' X 10" (SF-3801-656-10 IM)
- Page 2 SF-3801-656-10 IM OASIS VENTED CABANA 10' X 10" HARDWARE HHDS #10 X 1" LG HARDWARE LOCK NUT 1/4-20 HARDWARE FLAT WASHER FOR SCREW ؼ" HARDWARE BHCS 1/4-20 X 3/4" LG SF-3801-656-10-A03 VERTICAL POST SF-3801-656-10-A02 COPULA SF-3801-656-10-A01 CABANA ROOF (10' X 10") ITEM NO.
- Page 3 OASIS VENTED CABANA 10' X 10" (SF-3801-656-10 IM) QTY: 2 QTY: 1 QTY: 4 QTY: 4 QTY: 4 QTY: 4 QTY: 8 NOTE: - BEFORE ASSEMBLING VENTED ROOF CABANA CLEAN SURFACE AREA AND MAKE SURE TO PLACE A CARDBOARD OR CLOTH ON THE FLOOR AS NOT TO SCRACH FLOORS.
- Page 4 OASIS VENTED CABANA 10' X 10" (SF-3801-656-10 IM) STEP 1 TO BEGIN ASSMBLY: - PLACE ITEM A ON IT'S SIDE, WHERE THE OPEN END IS ON TOP. - PLACE ITEM C ON IT'S SIDE, WHERE THE ANCHOR PLATE IS ON IT'S SIDE.
- Page 5 OASIS VENTED CABANA 10' X 10" (SF-3801-656-10 IM) STEP 2 GUIDE INSERT GUIDE INSERT DETAIL D SCALE 1 : 8 NOTE: - LINE UP BOTH HALVES BY LINING UP GUIDE INSERTS AT THE TOP OF ITEM A AND INSERTING THEM IN THERE PROPER LOCATION. (AS SHOWN)
- Page 6 OASIS VENTED CABANA 10' X 10" (SF-3801-656-10 IM) STEP 3 DETAIL B SCALE 1 : 5 NOTE: - LOCATE (4) SCREW HOLES AND INSERT SCREWS, WASHERS AND FIBER NUTS (AS SHOWN) Page 6...
- Page 7 OASIS VENTED CABANA 10' X 10" (SF-3801-656-10 IM) STEP 4 DETAIL C SCALE 1 : 4 NOTE: - BEFORE PLACING COPULA ON VENTED ROOF PLACE ANCHOR PLATE ON TO ANCHOR SCREWS. (WHICH SHOULD BE PLACED ALREADY ON GROUND) - LOCATE (4) SCREW HOLES AND PLACE HHDS #10 X 1" LG IN HOLES AND TIGHTEN.
