Ovation Systems QUAD-POD FlashBack-2 User Manual

Compact video quad display module
Hide thumbs Also See for QUAD-POD FlashBack-2:

Advertisement

Quick Links

QUAD
-POD
Compact Quad
FlashBack-2 QUAD-POD
Ovation Systems Ltd.
Springfield Barn
London Road
Milton Common
Oxfordshire
OX9 2JY
UK
Tel:
+44 1844 279 638
Fax:
+44 1844 279 071
Email:
support@ovation.co.uk
Web:
www.ovation.co.uk
Issue 1.1
Compact Video Quad
Display Module
User Guide

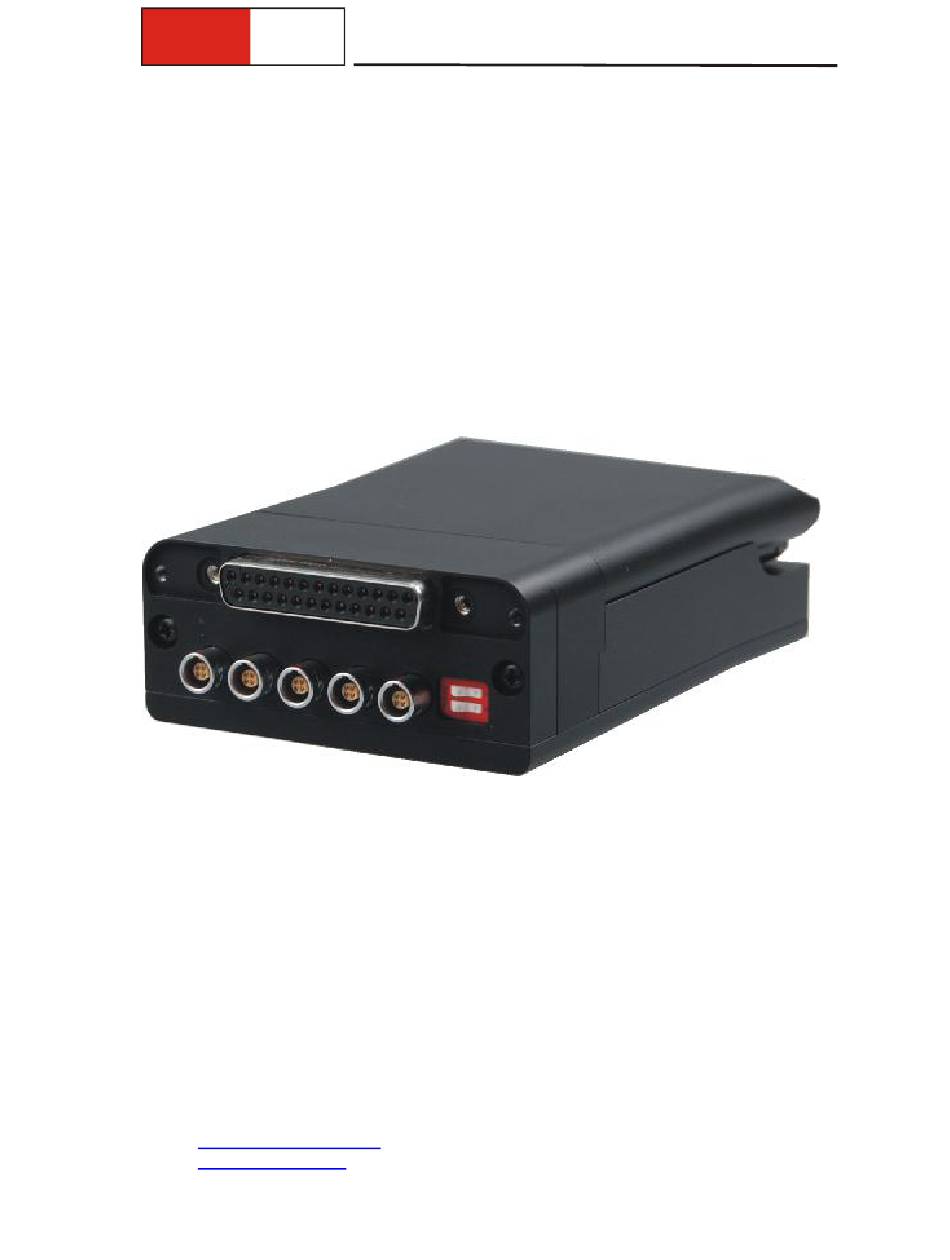

Quad-Pod With FlashBack-2 Fitted.
Ovation Systems Ltd
www.ovation.co.uk
User Guide
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QUAD-POD FlashBack-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ovation Systems QUAD-POD FlashBack-2

  • Page 1 QUAD -POD User Guide Compact Quad FlashBack-2 QUAD-POD Compact Video Quad Display Module User Guide Quad-Pod With FlashBack-2 Fitted. Ovation Systems Ltd. Springfield Barn London Road Milton Common Oxfordshire OX9 2JY Tel: +44 1844 279 638 Fax: +44 1844 279 071 Email: support@ovation.co.uk...
  • Page 2: Table Of Contents

    Table 1: DIP Switch Settings..............5 Table 2: Factory Default Output Modes............. 7 Table 3: Quad-Pod Camera Power Voltage Drop........8 Table 4: 25 Way D-Type Pin Out............... 11 Issue 1.1 Ovation Systems Ltd Page 2 www.ovation.co.uk...
  • Page 3: Introduction

    Status LED Off / Status LED On Vin B Vin C Vin D FB2 Out RS232C Display Mode Quad Out NB: Vin A is via the DB25 Figure 1: Quad-Pod Connection Diagram. Issue 1.1 Ovation Systems Ltd Page 3 www.ovation.co.uk...
  • Page 4: Quick Start Guide

    If after a few seconds the display goes blank it will be due to FlashBack-2 going into low power mode, turning off camera power in the process. There are three DIP switches which provide the following functions: Issue 1.1 Ovation Systems Ltd Page 4 www.ovation.co.uk...
  • Page 5 NOTE – The Internal DIP switches SW1 & SW2 are only monitored on power up. A power cycle or System Reset will be required if the unit is operational when a switch is changed. Issue 1.1 Ovation Systems Ltd Page 5 www.ovation.co.uk...
  • Page 6: Led Indicator

    Some camera’s will switch standard several times when first powered up, analogue and digital links may also switch video standards when they have a poor link. Selecting a manual video standard will alleviate these problems. Issue 1.1 Ovation Systems Ltd Page 6 www.ovation.co.uk...
  • Page 7: Factory Default Output Modes

    Camera’s 3 & 4 vertically scaled Camera 3 full screen plus camera and displayed one above the 4 as a 1/3 PiP in top left corner other Table 2: Factory Default Output Modes. Issue 1.1 Ovation Systems Ltd Page 7 www.ovation.co.uk...
  • Page 8: Camera Power

    MOSFET with a drain source resistance of 125mΩ. Camera Power Camera Power Camera Power @ 250mA @ 500mA @ 1A Supply - 0.35V Supply - 0.4V Supply - 0.5V Table 3: Quad-Pod Camera Power Voltage Drop. Issue 1.1 Ovation Systems Ltd Page 8 www.ovation.co.uk...
  • Page 9: O Connections

    Recording OK Camera DC Recording OK Switched Camera DC Audio In and Mic Bias - 2.5 mm Jack DC Bias 2.5mm Jack Audio In DC Bias Audio In Figure 3: FlashBack-2 Connector Pod Issue 1.1 Ovation Systems Ltd Page 9 www.ovation.co.uk...
  • Page 10: Installation Without Pod

    Figure 4 below shows the connections to Quad-Pod’s 25 way D-Type socket. Connections may be made with a standard 25 way D-Type plug or with a plug-to flying lead assembly supplied by Ovation Systems. DC power 6 to15 V (in) 1...
  • Page 11 The “C” input (colour) when configured for YC (S-Video) input. NOTE: S-Video is not available whilst using Quad-Pod. Video In PAL or NTSC 1 Vpp 75Ω video input. Table 4: 25 Way D-Type Pin Out. Issue 1.1 Ovation Systems Ltd Page 11 www.ovation.co.uk...
  • Page 12: Quad-Pod Video I/O Connector

    Figure 5: Video I/O Cable. 7.4. Quad-Pod Serial Connector The following lead is not available from ovation systems, it is included so that users of Quad-Pod & µFourSight II (USB Variant) that wish to control the unit via the RS232C port can make their own cable using one of the flying leads supplied.
  • Page 13: Pc Application Software

    DIP switches may be incorrectly set. (See sections 2.1, 2.2, 2.6 and 3). • If there is a problem with communicating via the RS232C port, then please refer to Section 8 and 11.5 of the µFourSight PC Application Manual. Issue 1.1 Ovation Systems Ltd Page 13 www.ovation.co.uk...
  • Page 14: Specification

    576 lines by 720 pixels Lock-in time <1 second Input camera gen-lock Not required Number of input channels Preset-display modes 16 via external switch + 176 via serial port Update rate per image Real-time Issue 1.1 Ovation Systems Ltd Page 14 www.ovation.co.uk...
