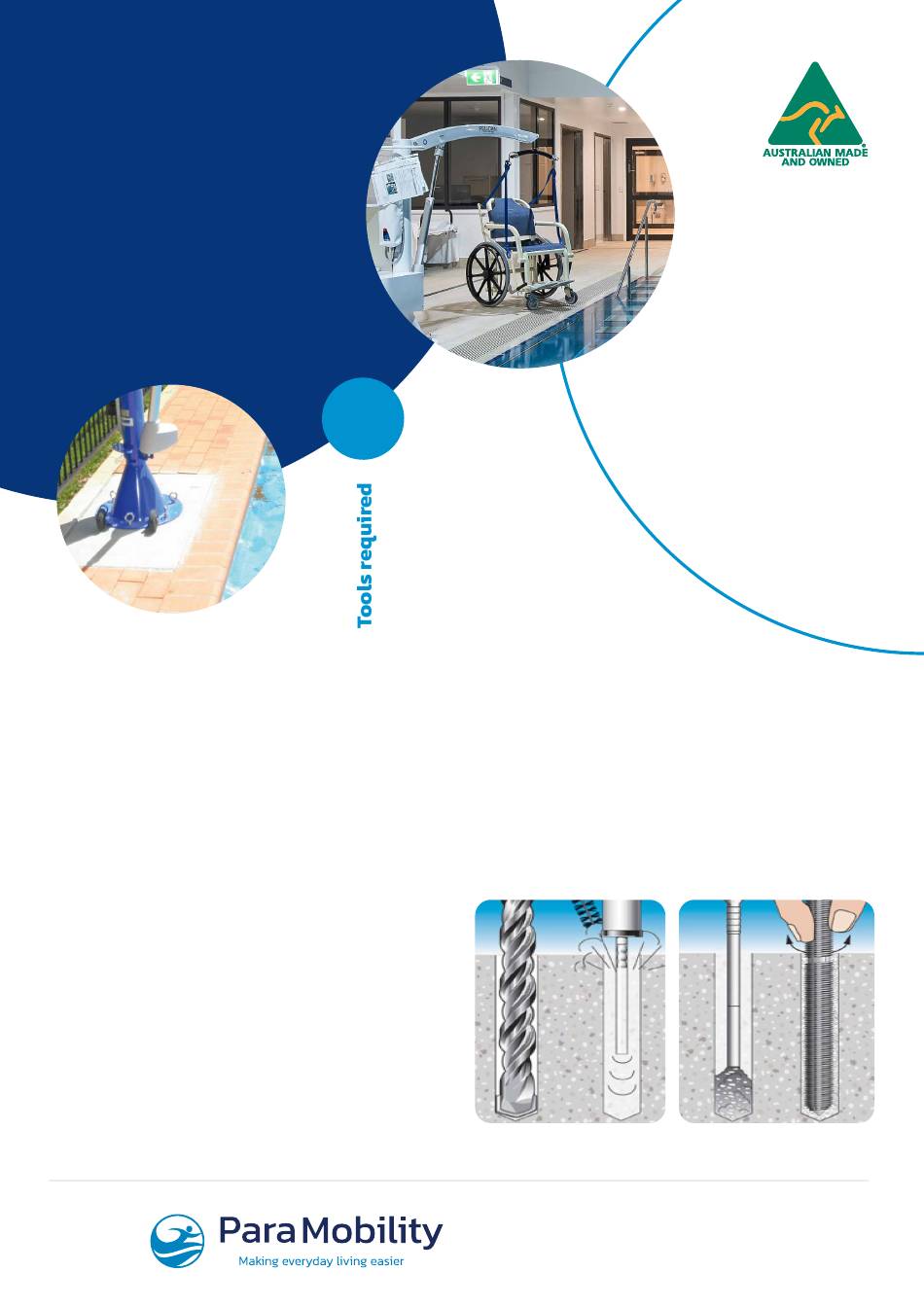

Para Mobility Pelican Pool & Spa Hoist Installation Manual

Pelican
®
Installation &
Service Pool
& Spa Hoist
Installation
Guide
1. To safely install the Pelican Pool & Spa Hoist
you will need a solid concrete pad to anchor it to.
We recommend a minimum 1/3 of cubic metres of
concrete is used when pouring your pad. This can be
made up as a logical size, for example: 1000 x 1000 x
300 or 650 x 650 x 650. The ideal location is placed
up against the pool edge.
It's highly recommended to use a minimum of 25MPa
concrete strength.
2. Place hoist in position, ideally around 100 to
500mm from edge of pool (can be further but check
that lifting arm will reach into pool far enough to lower
person into water). Check for obstructions when arm
of hoist is rotated. Use the hoist base as a template.
3. IMPORTANT Anchors must be set into the concrete
base to a minimum of;
1500-1700 arm - 100mm
1900-2100 arm - 150mm
If there are tiles or pavers on top of the concrete
base, longer anchors will be needed so that the
top of the anchor will sit flush with the top of the
tiles/pavers and the anchor will still be set into the
concrete base as above.
• Hammer Drill
• 16mm masonry bit
• Hole Cleaning Pump
• Hole Cleaning Brush (included)
• Cartridge gun – for adhesive
• Adhesive (included)
• Acetone
4. Drill 16mm diameter hole to a minimum of 100mm
into concrete substrate. (Example: 100mm below any
tile bed).
5. Remove dust and debris by brushing and blowing at
least 3 times each (If hole is wet or flooded, remove
water with wet/dry vacuum). Hole may be damp but
must not be flooded.
6. Prepare all holes and socket studs before continuing
onto next step.
DRILL
HOLE
Phone 1300 444 600
Pelican Installation & Service
®
Delivery, installation + servicing Australia wide
enquiries@paramobility.com.au
www.paramobility.com.au
As per AS3000 of the
wiring rules standards –
"In certain circumstances"
it may be necessary to
have all conductive metal
objects equally potentially
bonded (earthed), this
includes Pool Hoists.
We recommend you seek
the advice and opinion
of a qualified electrician.
BRUSH INJECT ABRASIVE
& BLOW & INSERT STUD
EARTHING
