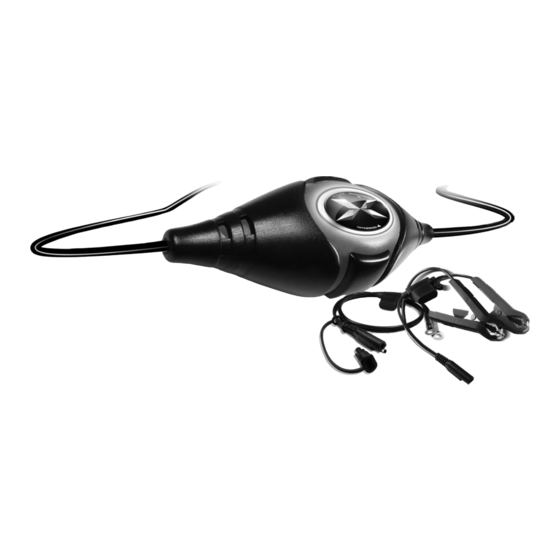

- Page 1 ® SPSS2 Model: Automatic Battery Charger/Maintainer OWNERS MANUAL PLEASE SAVE THIS OWNERS MANUAL AND READ BEFORE EACH USE. This manual will explain how to use the charger safely and effectively. Please read and follow these instructions and precautions carefully. 0099001514-00...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INSTRUCTIONS ...............3 PERSONAL SAFETY PRECAUTIONS .................4 PREPARING TO CHARGE ...................4 CHARGER LOCATION....................5 DC CONNECTION PRECAUTIONS ................5 FOLLOW THESE STEPS WHEN BATTERY IS INSTALLED IN VEHICLE ....5 FOLLOW THESE STEPS WHEN BATTERY IS OUTSIDE VEHICLE ......6 GROUNDING AND AC POWER CORD CONNECTIONS ..........7 ASSEMBLY INSTRUCTIONS ..................7 FEATURES ........................8 CONTROL PANEL ......................8... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS. 1.1 SAVE THESE INSTRUCTIONS – This manual contains important safety and operating instructions. 1.2 Do not expose the charger to rain or snow. 1.3 Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock or injury to persons. -
Page 4: Personal Safety Precautions
1.11 Pursuant to California Proposition 65, this product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. 1.12 Keep out of reach of children. PERSONAL SAFETY PRECAUTIONS 2.1 Consider having someone close enough by to come to your aid when you work near a lead-acid battery. -
Page 5: Charger Location
3.4 Add distilled water in each cell until battery acid reaches level specified by battery manufacturer. Do not overfill. For a battery without removable cell caps, such as valve regulated lead acid batteries, carefully follow manufacturer’s recharging instructions. 3.5 Study all battery manufacturer’s specific precautions while charging and recommended rates of charge. -
Page 6: Follow These Steps When Battery Is Outside Vehicle
6.4 Determine which post of battery is grounded (connected) to the chassis. If negative post is grounded to chassis (as in most vehicles), see (6.5). If positive post is grounded to the chassis, see (6.6). 6.5 For negative-grounded vehicle, connect POSITIVE (RED) clip from battery charger to POSITIVE (POS, P, +) ungrounded post of battery. -
Page 7: Grounding And Ac Power Cord Connections
GROUNDING AND AC POWER CORD CONNECTIONS 8.1 This battery charger is for use on a nominal 120 volt circuit. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances. The plug pins must fit the receptacle (outlet). Do not use with an ungrounded system. -
Page 8: Features
10. FEATURES 1. LED indicators: POWER (red) CHARGING (yellow/orange) CHARGED (green) 2. Battery clamp quick-connect 3. Ring terminal quick-connect 4. Quick-connect connector 11. CONTROL PANEL LED INDICATORS POWER (red) LED lit: There is AC power supplied to the battery charger. CHARGING (yellow/orange) LED lit: The charger is charging the battery. - Page 9 8. If you’ve connected everything correctly, the CHARGING yellow/ orange) LED should be lit, indicating that the charger is charging, and the POWER (red) LED will go off. If the CHARGING LED does not light, check the connections or have the battery checked/replaced. 9.
- Page 10 RING TERMINAL QUICK-CONNECT The ring connectors permanently attach to the battery, providing easy access to quickly connect the charger to your battery. This application is appropriate for motorcycles, lawn tractors, ATVs and snowmobiles. 1. To permanently attach to a battery, loosen and remove each nut from the bolt at the battery terminal.
- Page 11 MAINTAINING A BATTERY The SPSS2 maintains both 6 and 12 volt batteries, keeping them at full charge. It can charge small batteries and maintain both small and large batteries. If you are maintaining a fully charged large battery, you are properly utilizing the battery charger.
-
Page 12: Maintenance And Care
13. MAINTENANCE AND CARE A minimal amount of care can keep your battery charger working properly for years. • Clean the clamps each time you are finished charging. Wipe off any battery fluid that may have come in contact with the clamps, to prevent corrosion. •... -
Page 13: Specifications
15. SPECIFICATIONS Input Voltage ..............120V AC @ 60Hz, 0.4A Output Voltage ........6V or 12V, with Auto Voltage Detection Output Current Rating ..........1A @ 6V DC and 12V DC 16. REPLACEMENT PARTS Battery clamp cable assembly ............3899002668 Ring terminal cable assembly ............2299002276 17. - Page 14 ASSUME OR MAKE ANY OTHER OBLIGATION TOWARDS THE PRODUCT OTHER THAN THIS WARRANTY. Schumacher and the Schumacher logo are registered ® trademarks of Schumacher Electric Corporation. Battery Extender is a trademark of Auto Meter Products, Inc. ® • 14 •...
-
Page 15: Warranty Card
WARRANTY CARD SAVE ON POSTAGE! ACTIVATE YOUR WARRANTY ONLINE – THE QUICK AND EASY WAY! Go to www.batterychargers.com to register your product online. (No internet access? Send in the completed warranty card.) • 15 •...
