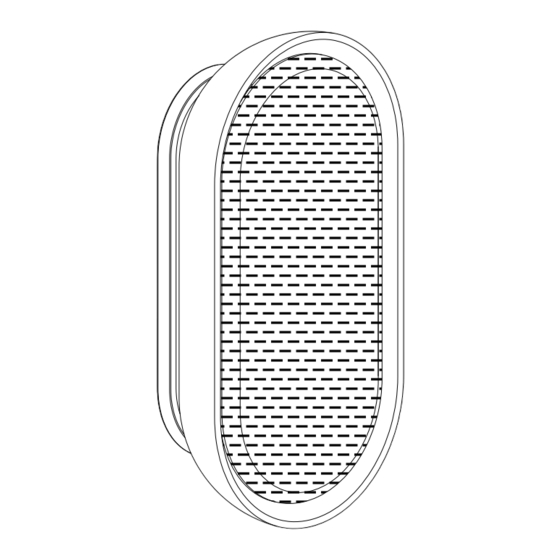

- Page 1 ™ Mera Sound Sconce Quick Start Guide & Wiring Diagrams...
-
Page 2: Before Installation
(“Product”), when purchased from an authorized Leon Dealer, will be free from defective workmanship and materials for the period of five (5) years. Leon will at its option and expense during the warranty period, either repair the defect or replace the Speaker Components of this Product with new or remanufactured Speaker Components or reasonable equivalent. -
Page 3: New Construction Installation
New Construction Installation Pages 4-5 New construction installations include an off-board LED driver and can be easily installed and integrated using entirely low voltage wiring. Start by referencing the wiring diagram below and move to Page 4 for installation instructions. Amplifier American Lighting... - Page 4 6-32 x 0.75” Machine Bracket (x1) Screws (x2) Screws (x2) WAGO 222 Series 10-32 Threaded Outer Bowl (x1)* Speaker Assembly Wire Connectors (x2) Stainless Studs (x2) (x1) 10-32 Brass Finial Fabric Grille (x1) LED Driver Nuts (x2) MERA SOUND SCONCE™ QUICK START GUIDE...
- Page 5 New Construction Installation Pull wires from the single gang box Using Wire Connectors [E], connect through the Universal Bracket [A], low voltage lighting wires from the LED then attach the bracket to the gang box Driver [K] to the wires coming out of the using Machine Screws [B].
- Page 6 Bracket (x1) Screws (x2) Screws (x2) WAGO 222 Series 10-32 Threaded Outer Bowl (x1) with Speaker Assembly Wire Connectors (x2) Stainless Studs (x2) LED Driver (x1) 10-32 Brass Finial Fabric Grille (x1) Nuts (x2) MERA SOUND SCONCE™ QUICK START GUIDE...
- Page 7 Retrofit Installation WARNING! Working near electrical equipment and wires poses an electrocution hazard. Turn off nearby electrical circuits from the breaker before proceeding. Install a retrofit gang box below the Using Wire Connectors [E], connect the single gang box for your speaker wire. high voltage wires to the LED Driver Pull high voltage wires from the wall within the Outer Bowl (positive to positive,...
- Page 8 Questions? For additional support, call customer service 1 (888) 213-5015 | Mon - Fri 8 am-6 pm EST Leon is a registered trademark of Leon Speakers, Inc ©2022. REF-25-134_Mera_Sconce_Quick_Start_Guide_20240311...
