SP076 - Active Single Swing Add-on
SP077 - Active Double Swing Add-on
Instructions for assembly, maintenance and safe use.

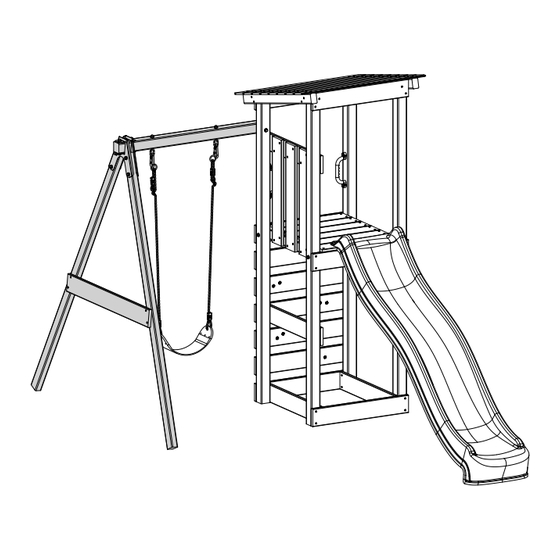

SP076 - Single Swing
SP077 - Double Swing
TOWERS & SWING SEATS SHOWN FOR ILLUSTRATION ONLY
WARNING!
-THIS PRODUCT IS NOT SUITABLE FOR CHILDREN UNDER 36 MONTHS. CONTAINS SMALL PARTS (CHOKING HAZARDS)
-EQUIPMENT CAN BECOME SLIPPY WHEN WET/ICY/DIRTY, EXTRA CARE MUST BE TAKEN IF USED IN THESE CONDITIONS
-ONLY FOR DOMESTIC USE. FOR OUTDOOR USE
-PRODUCT MUST BE ASSEMBLED BY AN ADULT(S) BEFORE USE
-ADULT SUPERVISION IS REQUIRED
-CHILDREN MUST NOT USE THE EQUIPMENT UNTIL PROPERLY INSTALLED
-REMOVE ALL PACKAGING BEFORE USE
-RETAIN MANUAL FOR FUTURE REFERENCE
-MAX USER WEIGHT: 50KG
REBO
www.outdoortoys.com
Advertisement
Table of Contents
Related Manuals for rebo SP076
Summary of Contents for rebo SP076

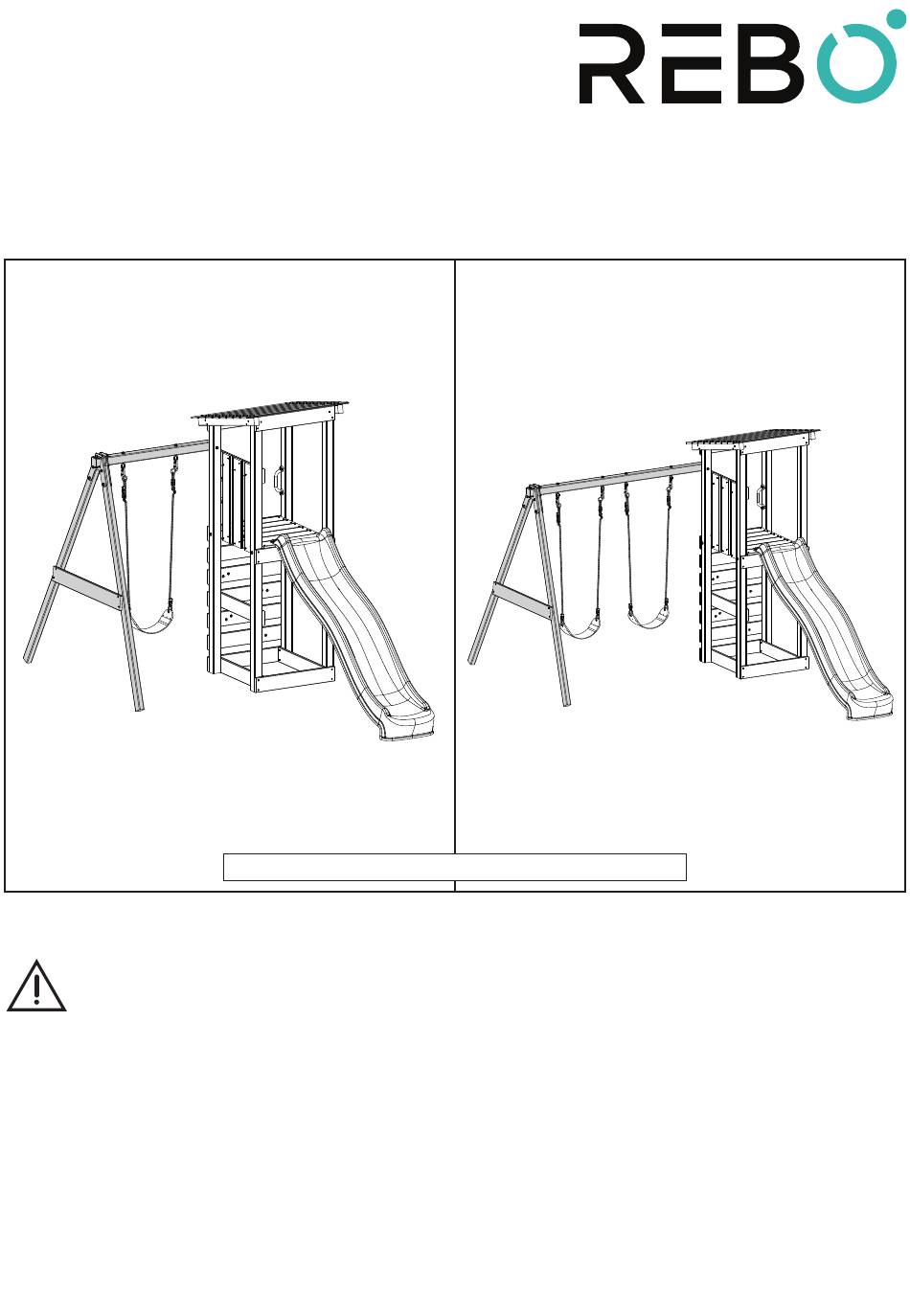

- Page 1 SP076 - Active Single Swing Add-on SP077 - Active Double Swing Add-on Instructions for assembly, maintenance and safe use. SP076 - Single Swing SP077 - Double Swing TOWERS & SWING SEATS SHOWN FOR ILLUSTRATION ONLY WARNING! -THIS PRODUCT IS NOT SUITABLE FOR CHILDREN UNDER 36 MONTHS. CONTAINS SMALL PARTS (CHOKING HAZARDS) -EQUIPMENT CAN BECOME SLIPPY WHEN WET/ICY/DIRTY, EXTRA CARE MUST BE TAKEN IF USED IN THESE CONDITIONS -ONLY FOR DOMESTIC USE.
-
Page 2: Safety Considerations
This will prolong the life of the product during adverse weather conditions, this does not include timber. -Remember to keep this manual in a safe location for reference and future use. SP076 & SP077. Active Swing Add-ons. Instruction Manual... - Page 3 B. in einer Garage oder in einem Schuppen einzulagern. Dadurch wird die Lebensdauer des Produkts bei ungünstigen Witterungsverhältnissen verlängert. Dies bezieht sich nicht auf Holz. -Diese Bedienungsanleitung als Referenz und für die zukünftige Benutzung an einer sicheren Stelle aufbewahren. SP076 & SP077. Active Swing Add-ons. Instruction Manual...
-
Page 4: Periodiek Onderhoud
Dit verlengt de levensduur van het product tijdens ongunstige weersomstandigheden, dit geldt niet voor hout. -Bewaar deze handleiding op een veilige plaats voor referentie en toekomstig gebruik. SP076 & SP077. Active Swing Add-ons. Instruction Manual... -
Page 5: Entretien Courant
Cela permettra de prolonger la durée de vie du produit pendant les périodes d’intempéries. Ceci ne concerne pas la structure en bois. -Gardez le présent manuel en lieu sûr afin de pouvoir vous y reporter le cas échéant. SP076 & SP077. Active Swing Add-ons. Instruction Manual... -
Page 6: Considerazioni Sulla Sicurezza
Ciò prolungherà la vita del prodotto in condizioni meteorologiche avverse, escluso il legno. -Sempre conservare questo manuale in un luogo sicuro per riferimento e uso futuro. SP076 & SP077. Active Swing Add-ons. Instruction Manual... -
Page 7: Consideraciones De Seguridad
Esto prolongará la vida del producto en condiciones climáticas adversas, esto no incluye la madera. -Recuerde guardar este manual en un lugar seguro para poderlo consultar y utilizar en el futuro. SP076 & SP077. Active Swing Add-ons. Instruction Manual... - Page 8 SINGLE SWING FOR ILLUSTRATION ONLY 2.5m The safe play area refers to the zone extending 2m around the product on all sides and 2.5m above the product. Dimensions 1841 SP076 (1144) 3495 SP077 (1944) SP076 & SP077. Active Swing Add-ons. Instruction Manual...
- Page 9 WD2053 (120x20) x 0290mm x2 WD03-1980 (69x44) x 1980mm x2 SP076 - SINGLE SWING WD04-1100 (69x69) x 1100mm x1 SP077 - DOUBLE SWING WD04-1900 (69x69) x 1900mm x1 100 110 120 130 SP076 & SP077. Active Swing Add-ons. Instruction Manual...
- Page 10 IMPORTANT! PRE-DRILL FIX WITH SCREW Fixing Procedure Section View SP076 & SP077. Active Swing Add-ons. Instruction Manual...
- Page 11 Vastdraaien vinger strak Verticaal/Horizontaal Serrer serré les doigts Vertical/Horizontal Stringere stretto con le dita Verticale/Orizzontale Apretar Apretado con los dedos Vertical/Horizontal ALL MEASUREMENTS ARE IN MILLIMETRES (mm) UNLESS STATED OTHERWISE Build Time SP076 & SP077. Active Swing Add-ons. Instruction Manual...
- Page 12 SP076 Ø10mm SP077 Ø10mm SP076 & SP077. Active Swing Add-ons. Instruction Manual...
- Page 13 Ø10mm (x2) PR0355 PR0356 M8x65 Hex Bolt x4 Washer x8 Nut x4 PR0355 x1 PR0356 x1 SP076 & SP077. Active Swing Add-ons. Instruction Manual...
- Page 14 M8x90 Hex Bolt x2 Washer x4 Nut x2 SINGLE SWING FOR ILLUSTRATION ONLY Cap x12 SINGLE SWING FOR ILLUSTRATION ONLY SP076 & SP077. Active Swing Add-ons. Instruction Manual...
- Page 15 55mm Wood Screw x4 SINGLE SWING FOR ILLUSTRATION ONLY SP076 PR0361 x2 Cap x2 SP077 PR0361 x4 Cap x4 SP076 & SP077. Active Swing Add-ons. Instruction Manual...
- Page 16 M8x150 Hex Bolt x1 Ø10mm SINGLE SWING FOR ILLUSTRATION ONLY SP076 & SP077. Active Swing Add-ons. Instruction Manual...
- Page 17 RB068 x1 SINGLE SWING FOR ILLUSTRATION ONLY (Not Supplied) 45° SP076 & SP077. Active Swing Add-ons. Instruction Manual...
- Page 18 ≥ 350mm SINGLE SWING FOR ILLUSTRATION ONLY 35mm Wood Screw x6 SP076 & SP077. Active Swing Add-ons. Instruction Manual...
- Page 19 NOTES SP076 & SP077. Active Swing Add-ons. Instruction Manual...
- Page 20 Thank you for purchasing this product. For any assistance or queries, please contact: info@outdoortoys.co.uk or visit us on www.outdoortoys.com Vielen Dank, dass Sie sich für dieses Produkt entschieden haben. Für Hilfestellung und Rückfragen wenden Sie sich bitte an info@outdoortoys.de oder besuchen Sie uns auf www.outdoortoys.de Hartelijk dank voor de aankoop van dit product.
