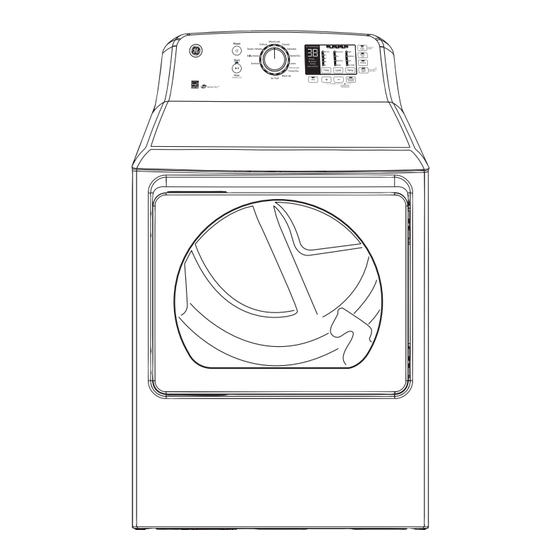

7.4 Cu. Ft. Capacity Aluminized Alloy Drum Electric Dryer With HE Sensor Dry
®

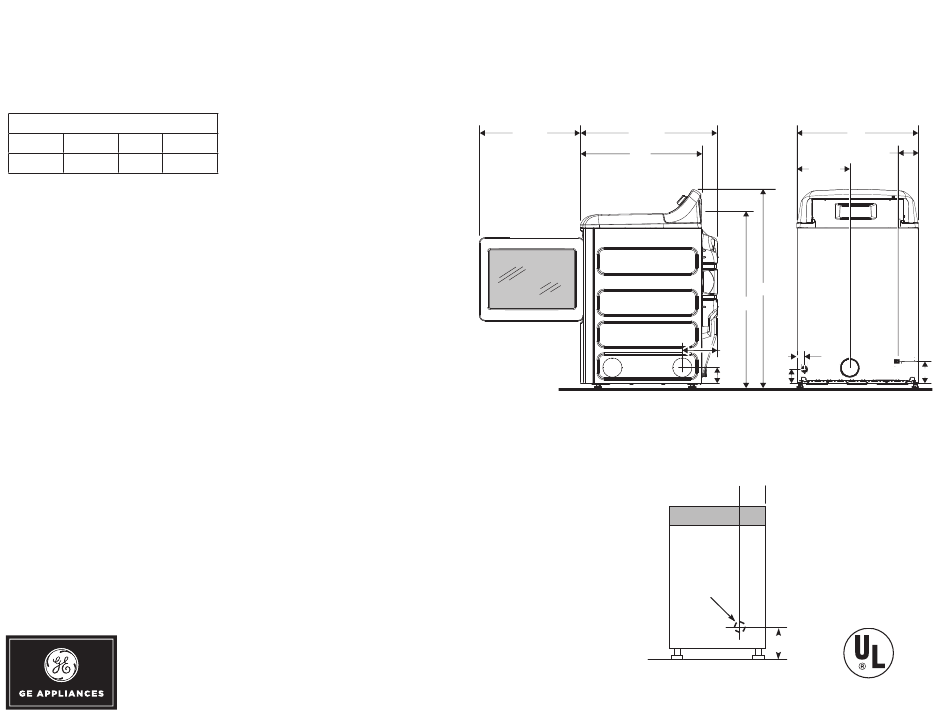

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
ELECTRIC DRYER RATING:
240V
5600W
24A
60Hz
208V
4400W
22A
60Hz
EXHAUST OPTION: 4-way rear, right, left and bottom
CIRCUIT REQUIREMENTS: An individual, properly-grounded branch circuit,
protected by a 30-amp circuit breaker or a time-delay fuse, is required.
NOTE: Dryer wall outlet must be located within 36" of service cord entry and
acessible when dryer is mounted in position.
INSTALLATION INFORMATION: For complete information, see installation
instructions packed with your dryer.
Special Installation Requirements
ALCOVE OR CLOSET INSTALLATION:
- If your dryer is approved for installation in an alcove or closet, it will be stated
on a label on the dryer back.
- The dryer MUST be exhausted to the outside.
- Minimum clearances between dryer cabinet and adjacent walls or other surfaces are:
0" either side; 1" front, top and rear
- Closet doors must be louvered or otherwise ventilated and must contain a minimum of 60 sq. in.
of open area equally distributed. If this closet contains both a washer and a dryer, doors must
contain a minimum of 120 sq. in. of open area equally distributed.
- No other fuel-burning appliance shall be installed in the same closet with a gas dryer.
BATHROOM OR BEDROOM INSTALLATION:
- The dryer MUST be exhausted to the outdoors.
- The installation must conform with the local codes, or in the absence of local codes, with
the National Electric Code and National Fuel Gas Code, ANSI Z223 for gas dryers.
MINIMUM CLEARANCES OTHER THAN ALCOVE OR CLOSET INSTALLATION:
- Minimum clearances to combustible surfaces are: 0" both sides; 1" rear
DRYER EXHAUSTING INFORMATION : Use metal duct only, vertical and horizontal ducting.
For answers to your Monogram, GE Café
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center
5.7 cu. ft. Dryers
2
30-1/2
Back View
Series, GE Profile
Series or
®
Service, 800.626.2000.
22 1/2"
30 1/2"
27"
Side View
SIDE VIEW
5.8, 6.0 and 7.0 cu. ft. Dryers
POWER CORD LOCATIONS
Power
Cord Hole
27"
Power Cord 4 1/2"
11 3/4"
46"
38 1/2"
8"
1 3/4"
3 1/2"
3 1/4"
Rear View
REAR VIEW
5
Power
Cord Hole
4-1/2
Back View
BACK VIEW
Specification Revised 8/17
