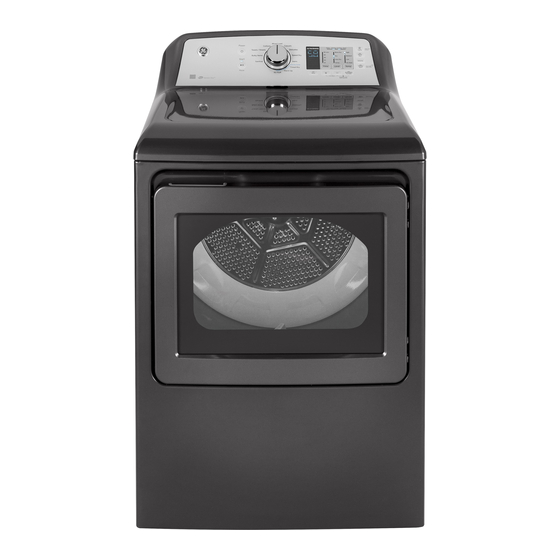

GE GTD65EBPLDG Installation Instructions Manual

GE GTD65EBPLDG Installation Instructions Manual

Hide thumbs Also See for GTD65EBPLDG:

Advertisement

Quick Links

Installation
Instructions
Questions? Call 800.GE.CARES (800.432.2737) or visit our Web site at: GEAppliances.com
This is the safety alert symbol. This symbol alerts you to potential hazards that can kill you or hurt you and others.
All safety messages will follow the safety alert symbol and the word "DANGER", "WARNING", or "CAUTION". These
words are defined as:
DANGER
Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
BEFORE YOU BEGIN
Read these instructions completely and carefully.
IMPORTANT
electrical inspector's use.
IMPORTANT
ordinances.
• Install the clothes dryer according to the manufacturer's
instructions and local codes.
• Note to Installer – Be sure to leave these instructions
with the Consumer.
• Note to Consumer – Keep these instructions for future
reference.
• Clothes dryer installation must be performed by a
qualified installer.
• This dryer must be exhausted to the outdoors.
• Before the old dryer is removed from service or
discarded, remove the dryer door.
• Service information and the wiring diagram are located
in the control console.
• Do not allow children on or in the appliance. Close
supervision of children is necessary when the appliance
is used near children.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not
covered under the Warranty
• Install the dryer where the temperature is above 50°F
for satisfactory operation of the dryer control system.
• Remove and discard existing plastic or metal foil duct
and replace with UL-listed duct.
Printed in Mexico
– Save these instructions for local
– Observe all governing codes and
.
Electric Dryers
WARNING
• Clothes dryer installation must be performed by a
qualified installer.
• Install the clothes dryer according to these
instructions and local codes.
• DO NOT install a clothes dryer with flexible plastic
venting materials. If flexible metal (semi-rigid or
foil-type) duct is installed, it must be UL-listed and
installed in accordance with the instructions found
in "Connecting the Dryer to House Vent" later in
this manual. Flexible vent materials are known to
collapse, be easily crushed and trap lint. These
conditions will obstruct dryer airflow and increase
the risk of fire.
• DO NOT install or store this appliance in any
location where it could be exposed to water or
weather.
• To reduce the risk of severe injury or death, follow
all installation instructions.
• Save these instructions. (Installers: Be sure to leave
these instructions with the customer.)
234D2318P001
01
- Fire Hazard
31-16755
01-15 GE

Advertisement

Table of Contents
loading

Summary of Contents for GE GTD65EBPLDG

  • Page 1 Electric Dryers Instructions Questions? Call 800.GE.CARES (800.432.2737) or visit our Web site at: GEAppliances.com This is the safety alert symbol. This symbol alerts you to potential hazards that can kill you or hurt you and others. All safety messages will follow the safety alert symbol and the word “DANGER”, “WARNING”, or “CAUTION”. These...
  • Page 2 Complete Kit (hoses, Y-adapter These hoses are manufactured and tested to meet GE washers) (included) specifications. GE strongly recommends the use of new water supply hoses. WE1M847 Long Hose and Hoses degrade over time and need to be replaced every 5...
  • Page 3 Installation Instructions REQUIREMENTS FOR ALCOVE OR MINIMUM CLEARANCE OTHER THAN CLOSET INSTALLATION ALCOVE OR CLOSET INSTALLATION Minimum clearance to combustible surfaces and WARNING - Explosion Hazard for air opening are: 0” both sides, 1” front and Keep flammable materials and vapors, such as gasoline, 3”...
  • Page 4: Connecting Inlet Hoses

    Installation Instructions CONNECTING INLET HOSES CONNECTING INLET HOSES CONNECTING INLET HOSES (on some models) (cont.) (on some models) To produce steam, the dryer must connect to the cold water supply. Since the washer must also connect to the cold water, a “Y” connector is inserted to allow both inlet hoses to make that connection at the same time.
  • Page 5: Connecting An Electric Dryer

    Installation Instructions CONNECTING AN ELECTRIC DRYER (Skip if your dryer already has a power cord attached) TOOLS YOU WILL NEED Before making the electrical connection, turn off the circuit breaker(s) or remove the dryer’s circuit fuse(s) at the electrical box. Be sure the dryer cord NEVER LEAVE THE is unplugged from the wall.
  • Page 6: Grounding Instructions

    Installation Instructions CONNECTING AN ELECTRIC DRYER (cont.) ELECTRICAL CONNECTION ELECTRICAL CONNECTION INFORMATION FOR ELECTRIC DRYERS INFORMATION FOR ELECTRIC DRYERS For electrical connections using a For direct wire connections: power cord: WARNING - Fire Hazard WARNING - Fire Hazard Use 10 gauge copper wire. Use a new UL-listed 240V 30 amp dryer power supply Use a UL-listed strain relief.
  • Page 7 Installation Instructions CONNECTING DRYER USING 3-WIRE CONNECTING DRYER USING 4-WIRE CONNECTION CONNECTION (MUST BE USED FOR MOBILE HOME INSTALLATION) If required, by local code, install external ground (not provided) to grounded metal, cold water pipe, or other NOTE: Since January 1, 1996, the National Electrical Code established ground determined by a qualified electrician.
  • Page 8: Exhausting The Dryer

    (foil-type) transition duct. UL–LISTED universal flexible dryer transition duct (GE parts – PM8X73 or WX8X73) may be used ONLY in installations where rigid metal or flexible metal transition ducting cannot be used AND...
  • Page 9 Installation Instructions • DO use elbows when • DO cut duct as short turns are necessary. as possible and install straight into wall. Elbows • DO NOT bend • DO NOT use • DO NOT • DO NOT or collapse excessive crush duct set dryer...
  • Page 10: Before You Begin

    Installation Instructions EXHAUSTING THE DRYER (cont.) EXHAUST SYSTEM CHECKLIST STANDARD REAR EXHAUST HOOD OR WALL CAP We recommend that you install your dryer before • Terminate in a manner to prevent back drafts or entry installing your washer. This will permit direct of birds or other wildlife.
  • Page 11 Installation Instructions TAB LOCATION SIDE OR BOTTOM VENTING WARNING - Fire Hazard BEND TAB UP 45 Close the back opening with cover plate (Kit WE1M454). Disconnect dryer from electrical supply. Wear gloves and arm guards. Failure to do so may result in fire, electrical shock or lacerations.
  • Page 12: Final Setup

    Installation Instructions EXHAUSTING THE DRYER (cont.) FINAL SETUP SIDE OR BOTTOM VENTING (cont.) LEVEL THE DRYER Stand the dryer upright near the final location and ADDING ELBOW AND DUCT FOR EXHAUST TO adjust the four leveling legs at the corners to ensure LEFT OR RIGHT SIDE OF CABINET (cont.) that the dryer is level from side to side and front to •...
  • Page 13: Reversing The Door

    Installation Instructions REVERSING THE DOOR A REVERSING THE DOOR - SOLID DOOR ABOUT REVERSING THE DOOR MODELS (cont.) IMPORTANT NOTES: Remove the bottom screw from each hinge (right • Read the instructions all the way through before side) and partially insert them into each top hinge starting.
  • Page 14 Installation Instructions REVERSING THE DOOR (cont.) A REVERSING THE DOOR - SOLID DOOR MODELS (cont.) Mount the door on the 2 upper left side hinge screws installed in step 2. Move the hinge screws loosened in step 3 into the lower left side screw holes and firmly tighten all 4 screws.
  • Page 15 Installation Instructions B REVERSING THE DOOR - GLASS PANEL B REVERSING THE DOOR - GLASS PANEL DOOR MODELS DOOR MODELS (cont.) Open the door approximately 130 degrees. With a Remove both the blind plate and the strike plate and putty knife, remove the 4 plastic caps located along install them in the opposite positions.
  • Page 16 Installation Instructions REVERSING THE DOOR (cont.) B REVERSING THE DOOR - GLASS PANEL B REVERSING THE DOOR - GLASS PANEL DOOR MODELS (cont.) DOOR MODELS (cont.) Remove and swap the 2 plastic caps and the 2 Mount the assembled door on the 2 upper left side hinges.
