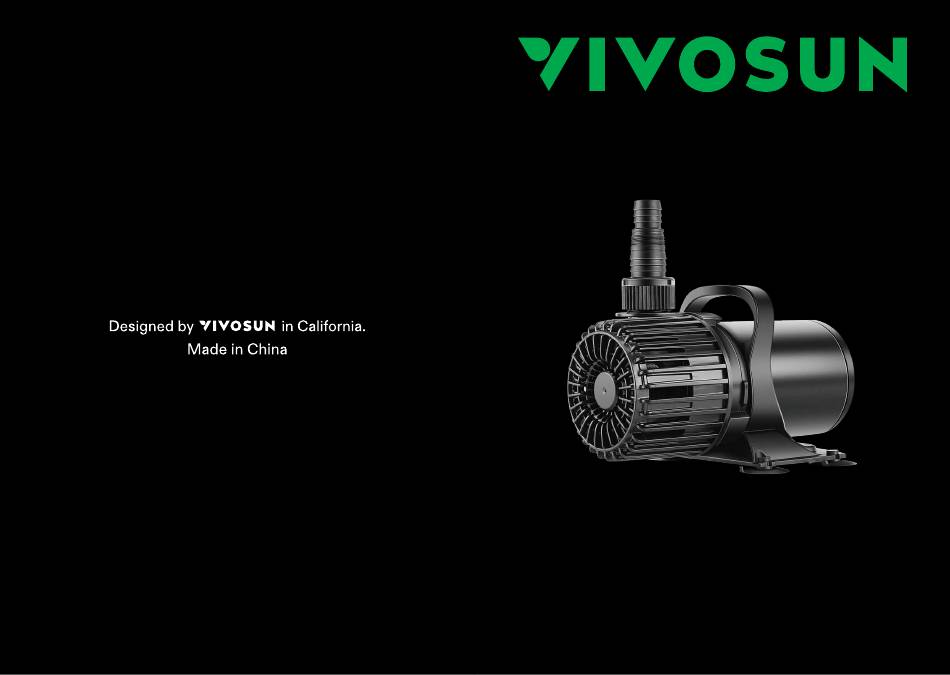

- Page 1 Water Pond Pump USER MANUAL...
- Page 2 Ponds, Foundtains, and Waterfalls Pump Introduction: Thank you for purchasing this high performance, energy-efficient pump designed for use in ponds, fountains, waterfalls, hydroponic systems, irrigation systems, and other water features. This pump can be used in either wet or dry installa- tions and features wet rotor/wet bearing technology for cooler running, and a pre-filter screen to handle large particles so your pump requires less maintenance.
- Page 3 Ponds, Foundtains, and Waterfalls Select an Outlet Position PG5300 S Place the pump flat on its base. To set the outlet to Positions 2, 3, or 4 as shown below, the body of the pump needs to be rotated within the handle/stand and locked at Notches Watts: 310W Amps: 2.7A Voltage: 120V, 60Hz...
- Page 4 Diagram of Notch A, B, and C Cleaning Pump Maintenance: To clean the impeller chamber and impeller, remove the impeller chamber covering by This pump features a water-lubricated bearing and shaft for guaranteed long-lasting rotating it counter-clockwise. This will expose the pump's impeller. Use a garden hose to service, however the rotor assembly is susceptible to failure if sand or extra-fine grit is spray any debris out of the chamber and off the impeller.
- Page 5 Replaceing the Impeller Reinstall To clean or replace the impeller assembly, first remove the front housing by rotating it Before reinstalling the impeller assembly, it is recommended you use a silicon-based counter-clockwise (see Figures A & B), and with the impeller exposed, locate the 3 tabs lubricant on the ceramic shaft, on the impeller assembly's metallic rotor, and on the pump as shown in the figure below.
