TiTLEY Scientific Chorus User Manual

Hide thumbs Also See for Chorus:
Table of Contents

Advertisement

Quick Links

Download this manual
tChorus
User Manual
Version 1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Chorus and is the answer not in the manual?

Questions and answers

Related Manuals for TiTLEY Scientific Chorus

Summary of Contents for TiTLEY Scientific Chorus

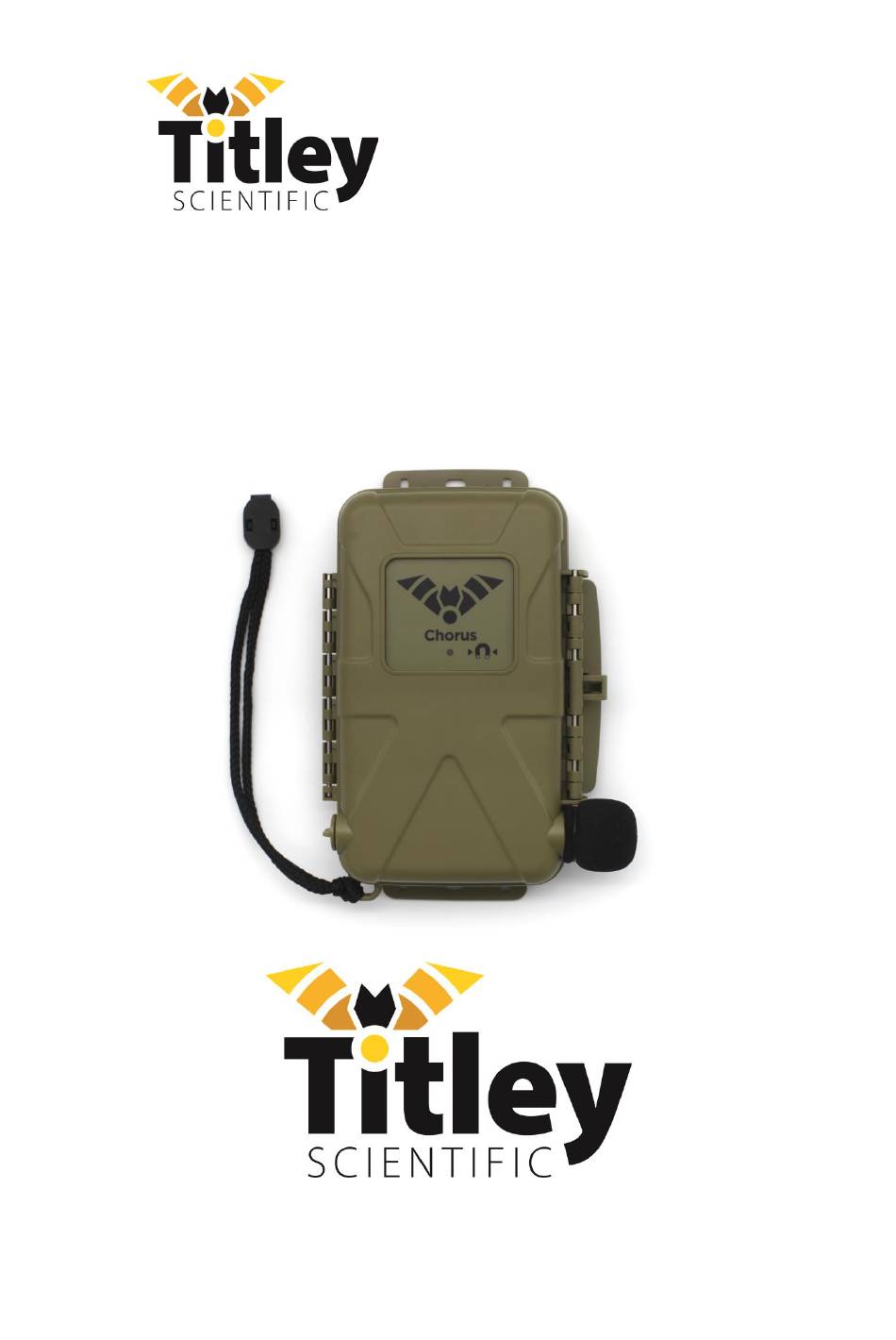

  • Page 1 tChorus User Manual Version 1.2...
  • Page 2 DOCUMENT HISTORY Manual Release Firmware Major Additions and Changes Version Date Version 9/11/2021 Toolbox references; asset tagging; screenshots of UI throughout; Titley Scientific contact details; reset settings changes; SD card capacity/availability; temperature log files; dashboard changes; frequency response FAQ; Toolbox firmware update;...

  • Page 3: Table Of Contents

    CONTENTS GETTING STARTED ..............................5 FEATURES OF THE CHORUS ........................5 GETTING TO KNOW THE CHORUS ......................5 MICROPHONES ..............................8 POWER REQUIREMENTS ..........................8 DATA STORAGE REQUIREMENTS ......................9 USB CONNECTION ............................10 USING THE CHORUS .............................11 STEP-BY-STEP GUIDE ............................11 TURNING THE RECORDER ON/OFF &...
  • Page 4 RESET SETTINGS............................. 24 SD CARD ................................25 Erase SD Card ............................................25 RECORDER STATUS/INFO ..........................25 TESTING YOUR CHORUS ..........................26 FLASHING STATUS ICONS OR CHECK LED .................... 27 PASSIVE DEPLOYMENT CONSIDERATIONS ................... 29 WEATHERPROOFING ........................... 29 MOUNTING & PLACEMENT ......................... 30 EQUALIZATION &...

  • Page 5: Getting Started

    • Headphone output to check microphone performance GETTING TO KNOW THE CHORUS The outside of your Chorus case has a lockable latch, multiple mounting points (including a tripod mount), two microphone sockets, a check LED and lanyard with a magnet. Inside the Chorus case is the control panel, battery compartment, SD slot, headphone jack and basic instructions on use.
  • Page 6 External Features Internal Features...
  • Page 7 SD card, GPS, microphone(s), and the clock. You can use the left and right arrow buttons on the front of the Chorus to select one of the icons, then press K button to see more information and settings.

  • Page 8: Microphones

    Both microphone types can be used with our flexible-gooseneck microphone extender accessory. The Chorus has two channels, so you can customi se your microphone setup to record in mono acoustic, mono ultrasonic, dual acoustic and ultrasonic (not simultaneously), or stereo acoustic.

  • Page 9: Data Storage Requirements

    The recorder can use SDHC and SDXC memory cards. Titley Scientific highly recommends Sandisk® Extreme and Sandisk® Ultra SD cards, these cards have been tested with the Chorus and are recommended due to their reliable performance and low power consumption. Using other brands and models may result in reduced battery life or device malfunction and are not recommended.

  • Page 10: Usb Connection

    Please note: In all modes except Schedule mode, when there is an SD card present, the Chorus will periodically display the remaining recording time for your SD card in the top-left of the display, based on the currently chosen sample rate.

  • Page 11: Using The Chorus

    USING THE CHORUS The Chorus is designed for fast and easy deployment. Before you start recording you must first set your current time zone (see Time zone). The clock will be automatically set when the GPS obtains a signal. We also highly recommend you check for firmware updates (see Update Firmware).
  • Page 12 Please Note: When using Schedule Mode, the microphone settings are defined when the schedule is created using your computer. In this case there is no need to adjust the microphone settings on the Chorus itself. 6. Wait for the GPS receiver to obtain a location. This normally only takes a couple of minutes but can take longer if there are trees or dense clouds obstructing the signal.

  • Page 13: Turning The Recorder On/Off & Sleep

    You can use the magnet to check the recorder is functional after final deployment (see Testing Your Chorus). Do not deploy the Chorus if the check led is flashing, recording may not occur. 9. Retrieve your recorder. After the deployment is complete, observe the following precautions when retrieving the recorder: If it is wet, dry the unit off before opening it to avoid water entering the unit.

  • Page 14: Updating Firmware

    5. You can update via USB cable or SD card (see instructions below). To update via USB cable: 1. Connect the Chorus to the computer via USB cable, then turn on by pressing the K button. 2. Toolbox will state the current firmware version and the most recent online version. If the firmware needs to be updated, your current version will be displayed in red.

  • Page 15: Recording Modes

    2. Click Apply to SD Card to save the most recent firmware to the SD card. Once 3. Safely eject the SD card from the computer. 4. Insert the SD card and fresh batteries into your Chorus then turn it on. After a few moments a message will appear: Update available. Select (left soft key) to start the update.

  • Page 16: Selecting A Recording Mode

    The continuous recording mode will record continuously (either triggered or constant activation mode depending on your settings), starting as soon as this mode is selected. No GPS fix is required for this mode, but the Chorus will still attempt a fix to geotag recordings and ensuring the clock is accurate.

  • Page 17: Recording Settings

    A note on the GPS functionality The recorder will automatically attempt to acquire a GPS fix daily. If a satellite fix cannot be found, the recorder will refer to the last GPS fix made. In this case, the recorder will state Fix received ago in the GPS Settings.

  • Page 18: Sample Rate

    500, 384, 320, or 192ksps. Please note: The Chorus comes with an acoustic microphone, however to record ultrasonically, you will need to purchase the Omnidirectional Ultrasonic Microphone. Different recording settings will be available depending on whether you select an ultrasonic or acoustic sample rate.

  • Page 19: Maximum File Time

    Type The recording type associated with your chosen file type and sample rate Ultrasonic zero crossing). • Serial number The Chorus serial number will be used. • Nickname The nickname assigned in the Asset ID will be used. • Asset ID The Asset ID number will be used.

  • Page 20: Ultrasonic Recording Settings

    Constant, or Trigger. If you choose Constant, your Chorus is always recording whenever it is active. If you choose Trigger, then your Chorus is waiting for certain sounds before it will record to the card (see Trigger Settings listed below: sensitivity, minimum &...

  • Page 21: Minimum Frequency

    Chorus will be recording, and this should be kept in mind when setting the sensitivity. Use the up/down arrow buttons to select Sensitivity and then use the left/ right arrow buttons to choose the sensitivity that you want. Default is 16, and is suitable for most purposes.

  • Page 22: Gps Settings

    GPS SETTINGS The Chorus attempts a GPS fix once the recorder is turned on , and whenever it is in the GPS Settings menu. If left on/sleeping, it will attempt a GPS fix every 24 hours. When the recorder is attempting a fix, it will try for up to 10 minutes.

  • Page 23: Check Location

    Please note: Transect mode is automatically disabled when the Chorus is turned off & on again to prevent accidental battery drain. If you intend to undertake a transect, please ensure to enable transect mode each time you turn on the Chorus.

  • Page 24: Digital Asset Tag

    DIGITAL ASSET TAG You can add a digital asset tag to your device which will save asset information in the metadata of all files recorded. This can include company name, device nickname, company contact, company address and asset ID. If you would like to add an asset tag, this can be done using Toolbox with your detector connected via USB.

  • Page 25: Sd Card

    select. Press the down arrow to navigate to the bottom of the settings menu : Reset to defaults. Once selected press the K button to reset all settings in this particular menu to the factory defaults. SD CARD To check the SD card status or erase the card, use the left/right arrows to navigate to the SD Card Settings (see below) and press the K button, use the up/down arrows to navigate...

  • Page 26: Testing Your Chorus

    • About (QR code to www.titley-scientific.com) • Regulatory information • Diagnostic information (for factory use) TESTING YOUR CHORUS There are a number of ways to test the recorder : 1. To test the microphone/s before deployment, open the case, wake the recorder and rub/click your fingers in front of the microphone;...

  • Page 27: Flashing Status Icons Or Check Led

    No GPS fix enter the GPS Information screen to reactivate the GPS. It may take several minutes to secure a fix. If the Chorus cannot secure a new fix, it will revert to the last known location. The system clock is not set. Get a new GPS fix in clear view of the sky to set the Clock not set time.
  • Page 28 There are no schedule tasks or you are in Inactive mode. Change recording modes No work to do or create a schedule before deployment. The main batteries are low, replace the batteries before starting recording. Batteries Low The CR2032 Coin Cell battery is missing or low, replace the clock battery. Leave AA Clock Battery Low batteries installed while replacing the battery to avoid losing settings.

  • Page 29: Passive Deployment Considerations

    PASSIVE DEPLOYMENT CONSIDERATIONS WEATHERPROOFING The Chorus is designed as a weatherproof recorder, which means the recorder can be left in the field during rain, sunshine and snow without any additional weatherproofing. However, if the device is left in the rain, please consider the following advice: 1.

  • Page 30: Mounting & Placement

    Also consider insect noise when choosing a location, insects close to the recorder can generate a lot of unwanted noise files. We recommend that the Chorus is mounted vertically (refer to the section on weatherproofing) so that any rain water runs off the microphone/s and doesn ’t settle on the element/s.

  • Page 31: Equalization & Calibration

    The Chorus case is designed so that the device can be padlocked closed. A lockable metal security box is also available for purchase from Titley Scientific.

  • Page 32: Downloading Data

    2. Insert the SD card into your computer (if it has a SD card slot) or into an external SD card reader (available from Titley Scientific). 3. Open the SD card folder in Windows Explorer. 4. Copy/cut the files from the SD card folder into the desired folder/storage device.

  • Page 33: Software

    Anabat Insight is the free software you can use to view and analyse zero crossing and full spectrum recordings from your Titley Scientific detectors. You can open/view .zc and .wav files in Anabat Insight. The program offers the following features: •...

  • Page 34: Using Toolbox

    Using Toolbox To use Toolbox with your Chorus, you will either need an SD card, or to connect the detector via USB to your computer. For certain functions (eg. setting the clock or checking the firmware version), you need to connect to the PC.

  • Page 35: Schedules

    To create a schedule, you will need to use Toolbox. For instructions on how to do this, see the Anabat Insight User Manual on our we bsit e . You can create a schedule with the following settings for the Chorus: Deployment Location Set your deployment location to set sunrise/sunset times.
  • Page 36 Metadata Value - You can add a custom metadata value to be added under the Metadata Key (specified above) to every file recorded in this schedule task (e.g. Dusk Emergence) . Once you have schedules saved to the SD card, you can load them onto the Chorus internal memory. To check the schedule: 1.
  • Page 37 3. Your schedule tasks will be listed by priority. To view a task, use the up/down arrows to navigate to it, then press the K button. 4. It will display the date range, days of week, hours recording, the sample rate and the microphone channel side.
  • Page 38 Example 2: The schedule on the previous page will record daily from 18 30 March 2024, from 90mins before sunrise to 90mins after sunrise, in acoustic stereo, default settings. Every file recorded will include the metadata Bird Survey: Dawn.

  • Page 39: Metadata

    Calls. METADATA All metadata recorded on the Chorus is saved to files in the GUANO (Grand Unified Acoustic Notation Ontology) format. This format is now the standard across bat acoustic fields. For recordings from a Chorus, it includes the following: •...

  • Page 40: Troubleshooting & Faqs

    TROUBLESHOOTING & FAQS How do I set up the detector for ultrasonic bat recording? If you are using the Chorus with an ultrasonic microphone to record ultrasonic frequencies (e.g. bat echolocation), you will need to check the following settings: 1. Mount an 2.
  • Page 41 When you have a multi-channel recorder (a recorder that can have multiple microphones, such as the Chorus), there is some terminology to understand: Monoaural range of bat detectors work. The Chorus can also record mono acoustic or ultrasonic. Stereo Stereo recording is recording one file from two microphones. The recording will i.e.
  • Page 42 The Chorus is capable of recording stereo acoustic files. Dual Dual recording is recording multiple files from two microphones on a schedule, but This is possible using a custom schedule with the Chorus.
  • Page 43 How far away can a bat be detected using the Chorus? Detection distances will vary with frequency and loudness (amplitude) of the bat calls, atmospheric attenuation, and the directional characteristics and sensitivity of the bat recorder.
  • Page 44 Can I use the Chorus as an active recorder? While the Chorus is designed as a passive recorder, it can be used as an active recorder by connecting your headphones. You can also use the built -in GPS to log your track using the...

  • Page 45: Further Information

    Can I power the recorder using solar panels or external battery? No, the Chorus cannot be powered externally. FURTHER INFORMATION For further information please visit the Titley Scientific website: www.titley-scientific.com...
