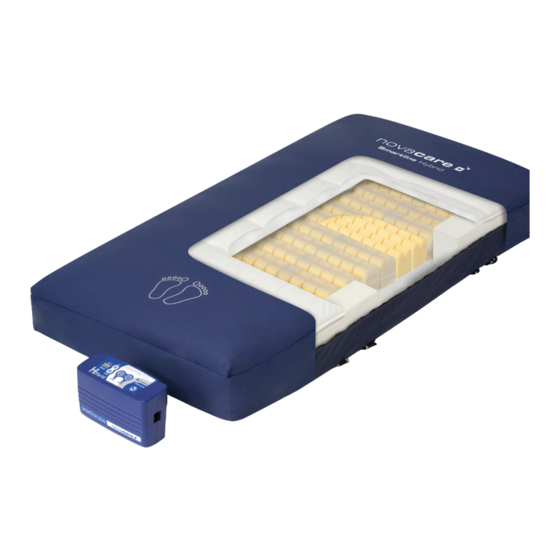

- Page 1 Instructions for use Smartline Hybrid Antidecubitus - Mattress Replacement System...
-
Page 2: Table Of Contents
The installation and commissioning of the product should only be car- ried out by professional users. Commissioning by non-professional users or medical laypersons must not be carried out without adequate training. The system and the accessories identified by novacare gmbh ®... -
Page 3: Safety Instructions
2. Safety instructions ! Do not use the system in the immediate vicinity of heat sources. ! Do not use the system in the immediate vicinity of flammable gases or in potentially explosive areas. ! Keep away from pointed and sharp objects. -
Page 4: Product Information
• User Manual Intended use The novacare Smartline Hybrid alternating pressure and static support system is suitable for use with ® decubitus ulcers of category I-IV according to EPUAP/NPUAP and are intended for a maximum user weight of 200 kg. Use additional alternative systems of the novacare APM series for care and treatment of ®... - Page 5 52 % Polyester Note: Head and foot area made of cold foam Regulatory requirements The alternating pressure systems of the novacare gmbh meet the following regulatory requirements: ® • Regulation (EU) 2017/745 about Medical Devices • Testing of medical electrical devices according to DIN EN 60601-1 •...
-
Page 6: Installation & Use
Remove the protective cover from the novacare Smartline Hybrid and place the complete ® mattress system on the slatted frame. Head and foot end are clearly marked (head section: imprint "novacare Smartline Hybrid"; foot ® section: printed feet). Place the patient on the system. - Page 7 Switch on the control unit by pressing the POWER button. LED indicator POWER lights up green and flashes until the preset system pressure is reached. The inflation process takes approx. 15 minutes. When the preset pressure is reached, the pump switches off automatically and the POWER LED lights up constantly green.
-
Page 8: Faults & Troubleshooting
Smartline Hybrid 5. Faults & Troubleshooting Error Possible cause Solution Bottom out Overlay ist not or insufficient ventilated Contact service technician Leak CPR-valve open Close CPR-Valve Main connection tube is not connected Conncect main connection tube System failure No power supply... - Page 9 Use in the nursing area (change of patients): Reprocess according to national regulatory requirements. novacare gmbh expressly recommends re- ® processing in accordance with the recommendations of the German Robert Koch Institute on hygiene requirements for the reprocessing of medical devices. If necessary, clean the cover of the system chemo- thermally by machine at up to 95°C.
-
Page 10: Disposal & Environment
Disposal control unit The control unit is electrical waste and must not be disposed of in household or residual waste. It must be handed over to the responsible disposal point. The electrical devices of novacare gmbh are ®... -
Page 11: Warranty
• for damage and malfunctions caused by natural wear and tear or during transport. • for the replacement of wear parts. • for delivered goods that have been modified, treated or changed without the consent of novacare gmbh. ®... - Page 12 ® Bruchstrasse 48 • 67098 Bad Dürkheim Deutschland Tel. +49(0)6322-9565-0 • Fax +49(0)6322-9565-65 www.novacare.de Misprints and errors are reserved. Colour, material and construction changes possible.
