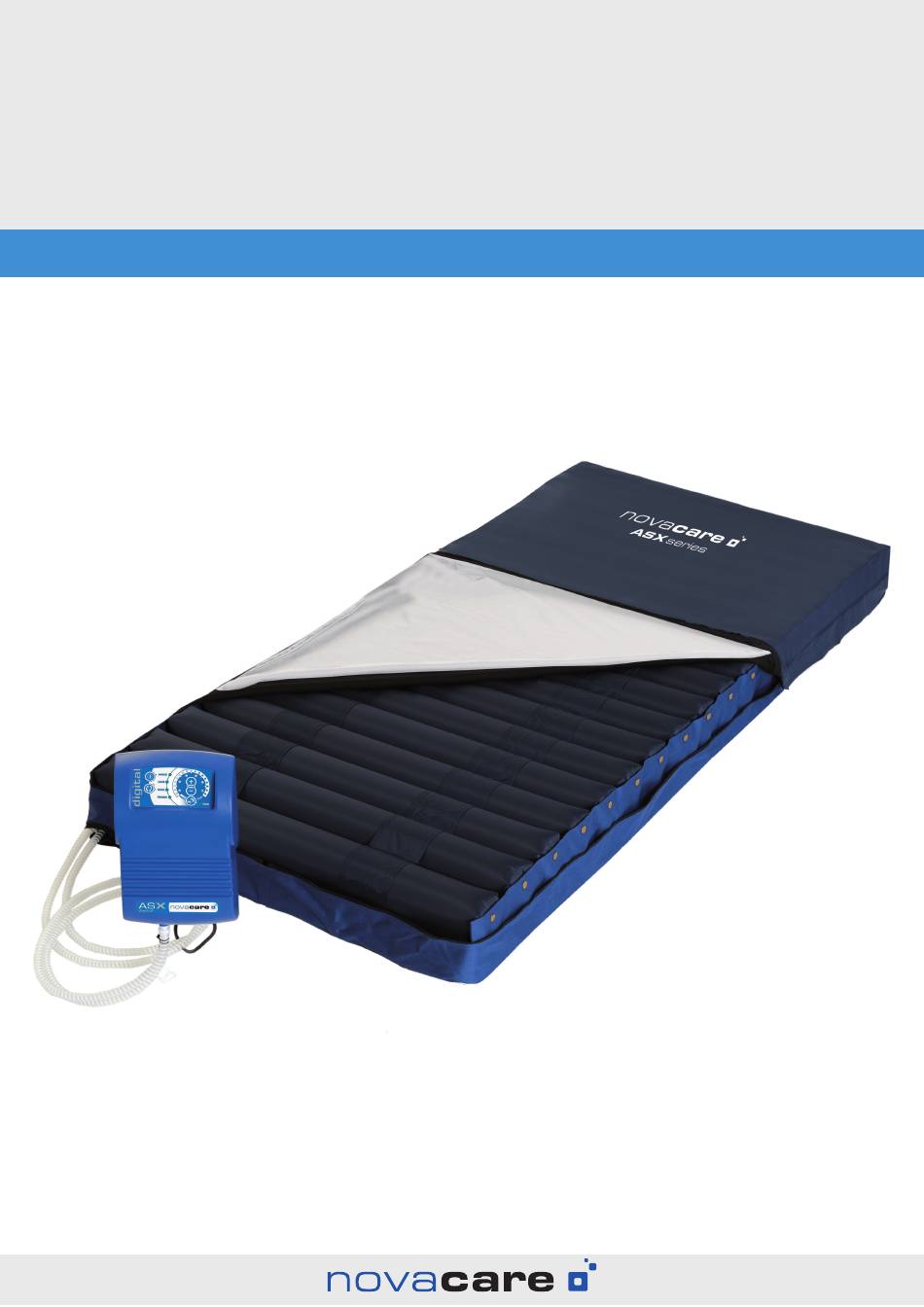

- Page 1 User Manual ASX digital 6 inch Anti-decubitus Alternating Pressure System...
-
Page 2: Table Of Contents
The installation and commissioning of the product should only be carried out by professional users. Commissioning by non-professional users or medical laypersons must not be carried out without adequate training. The product and the accessories identified by novacare gmbh are only to be used in accordance ®... -
Page 3: Product Information
ASX digital 6 inch is suitable for use with decubitus ® ulcers of category I-IV according to EPUAP/NPUAP and is designed for a maximum weight of 200 kg. For heavier patients alternating pressure systems of the novacare APM series can be used. ®... - Page 4 In the case of patients in pain or with a low pain threshold, the system should only be operated in CLP or static mode or a more suitable novacare system should be used.
-
Page 5: Installation & Use
• Optical and acoustic low pressure and power failure alarm Accessoires The medical products from novacare gmbh may only be used with the accessories provided for ® them. The accessories are available separately from novacare gmbh customer service. ® 4. Installation & use Environmental conditions... - Page 6 Put the connecting tube in Until it „clicks“ Check the position of the CPR emergency valve (head end). This should be set to the „close“ position. Connect the power cord, making sure that the mains voltage is correct. Power button Alter indicator Start the control unit by holding down the power button for 2 seconds.
- Page 7 Short-term low pressure, e.g. patient movement or cycle change, is only indicated with an op- tical signal, the low pressure indicator [LOW symbol] flashes. If the low pressure remains longer than five minutes, the acoustic alarm is also activated. www.novacare.org...
-
Page 8: Faults & Troubleshooting
Exceptional situations - emergency situations The system is equipped with a CPR emergency valve on the right side of the head part, which enables spontaneous ventilation within a short time in the event of a necessary resuscitation measure. Turn the valve to switch position „open“. Also disconnect the connection adapter on the control unit. -
Page 9: Disposal & Environment
Use in the nursing area (change of patient): Preparation in accordance with national regulatory requirements. Novacare gmbh expressly re- ® commends reprocessing in accordance with the recommendations of the German Robert Koch Institute on the hygiene requirements for the reprocessing of medical products. -
Page 10: Abbreviations & Symbols
8. Abbreviations & Symbols Abbreviations Constant Low Pressure Cardio-Pulmonale-Reanimation EPUAP/NPUAP European Pressure Ulcer Advisory Panel / National Pressure Ulcer Advisory Panel Polyurethane Ultraviolet Symbols manufactuer Reference to information in or location of the instructions for use Safety note: The instructions for use must be observed. CE mark, confirms conformity with relevant standards. -
Page 11: Warranty
9. Warranty Novacare gmbh assumes a guarantee on every patient hoist in the novacare product range that ® ® is defective due to manufacturing and / or material defects within 24 months of purchase. If an examination by novacare gmbh shows that warranty claims have been made that relate ®... - Page 12 Bruchstrasse 48, 67098 Bad Dürkheim, Germany Tel. +49(0)6322-9565-0, Fax +49(0)6322-9565-65, www.novacare.org Misprints and errors are reserved. Color, material and construction changes possible.
