INTRODUCTION:

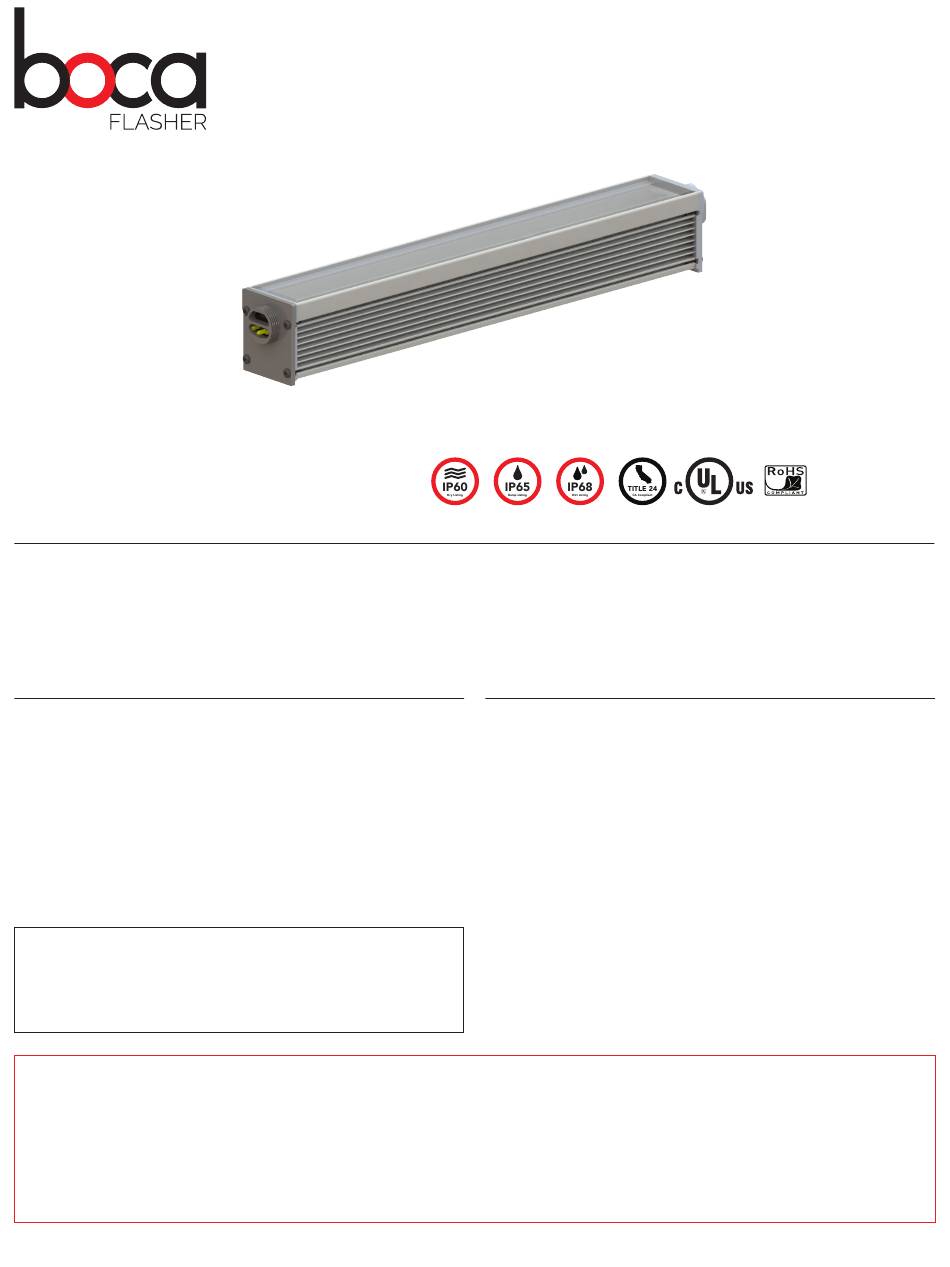

The Boca LUMELINE-RT is a low voltage fixture requiring the use of a 12 volt magnetic transformer. The housing is anodized
aluminum with a durable finish making it weather and abrasion resistant. It is UL Listed for dry, damp or wet location (model
dependent). See layout drawings for model provided.
ELECTRICAL SPECIFICATIONS:
1. Input Voltage: 12VAC
2. Total linear ft per 20A breaker: 200 ft.
3. Total linear ft per 15A breaker: 150 ft.
4. Input Current: .6 Amps per linear foot.
Fixtures must be installed by a qualified and licensed electrician in
accordance with all national, state and local electrical codes and
regulations. If any part of this manual does not meet the necessary
codes and regulations, contact the factory for more information
before attempting to install.
WARNING: DO NOT LIFT FIXTURE BY CABLES. Do not attempt to install or use the Lumeline-RT fixture without
reading the installation instructions and safety labels completely.
This could result in permanent damage to both the fixture and the cables. Damage resulting from grasping cables and/or
putting undue pressure on the cable connections will not be covered under the warranty!
FAILURE TO ADHERE TO THESE INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE.
DO NOT MODIFY, ALTER OR ATTEMPT TO SERVICE THE Lumeline-RT DOING SO WILL VOID THE WARRANTY.
BocaFlasher.com
MAINTENANCE:
Storage:
Store in a dry, well-ventilated area when product is not in
use. Keep the electrical cord away from heated surfaces
when in use or not in use. If cord shows signs of damage
do not use, return product to manufacturer.
Cleaning:
Dry and Damp (IP65) Rated Fixtures:
To clean surface use a soft damp cloth.
Wet (IP68) Rated Fixtures:
To clean surface use a soft cloth with mild soap and water.
1 of 6
Installation Manual
LUMELINE-RT
Max Temp: 55°C
Min. Temp: -40°C
REV 04-2019
Advertisement
Related Manuals for Boca Flasher LUMELINE-RT
Summary of Contents for Boca Flasher LUMELINE-RT
- Page 1 INTRODUCTION: The Boca LUMELINE-RT is a low voltage fixture requiring the use of a 12 volt magnetic transformer. The housing is anodized aluminum with a durable finish making it weather and abrasion resistant. It is UL Listed for dry, damp or wet location (model dependent).
-
Page 2: Included In The Package
Installation Manual LUMELINE-RT TURN POWER OFF AT CIRCUIT BREAKER BEFORE BEGINNING INSTALLATION! INCLUDED IN THE PACKAGE: HPNLS-RT Fixtures, (In lengths shown on Mounting Brackets Remote Transformers (if ordered) job specific drawings) (2 brackets per fixture) Swivel Fixed 3” Arc 6” Arc Power cord length is 6.5ft per UL standard... - Page 3 LUMELINE-RT 1: INSTALL CLIPS INTO SUBSTRATE 1. Fixed Clips 2. Swivel Clips Locking Swivel Bracket: 1. Boca Flasher recommends using an off set Philips screw driver with a #2 bit. 2. Screwdriver should be capable of making a 90° bend.
- Page 4 Screw fixtures together at the connection points to ensure no damage is done to the then twist until secure. fixtures. #2 screw provided by Boca Flasher. click! IMPORTANT NOTE: Not screwing fixtures together represents an incomplete install and voids the warranty if any fixtures are damaged as a result of improper installation.
- Page 5 Installation Manual LUMELINE-RT 5a. CONNECT FIXTURES TO POWER RECOMMENDED INSTALL - OPTION 1 5b. CONNECT FIXTURES TO POWER RECOMMENDED INSTALL - OPTION 2 6. CONNECT TO DIMMING SYSTEMS BocaFlasher.com 5 of 6 REV 04-2019...
- Page 6 – Do not use attachments not recommended by Boca Flasher. – Never operate the Lumeline-RT if it has a damaged cord, cable or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. If the seal appears to be damaged/broken/torn return the fixture to a service center for examination or repair.
