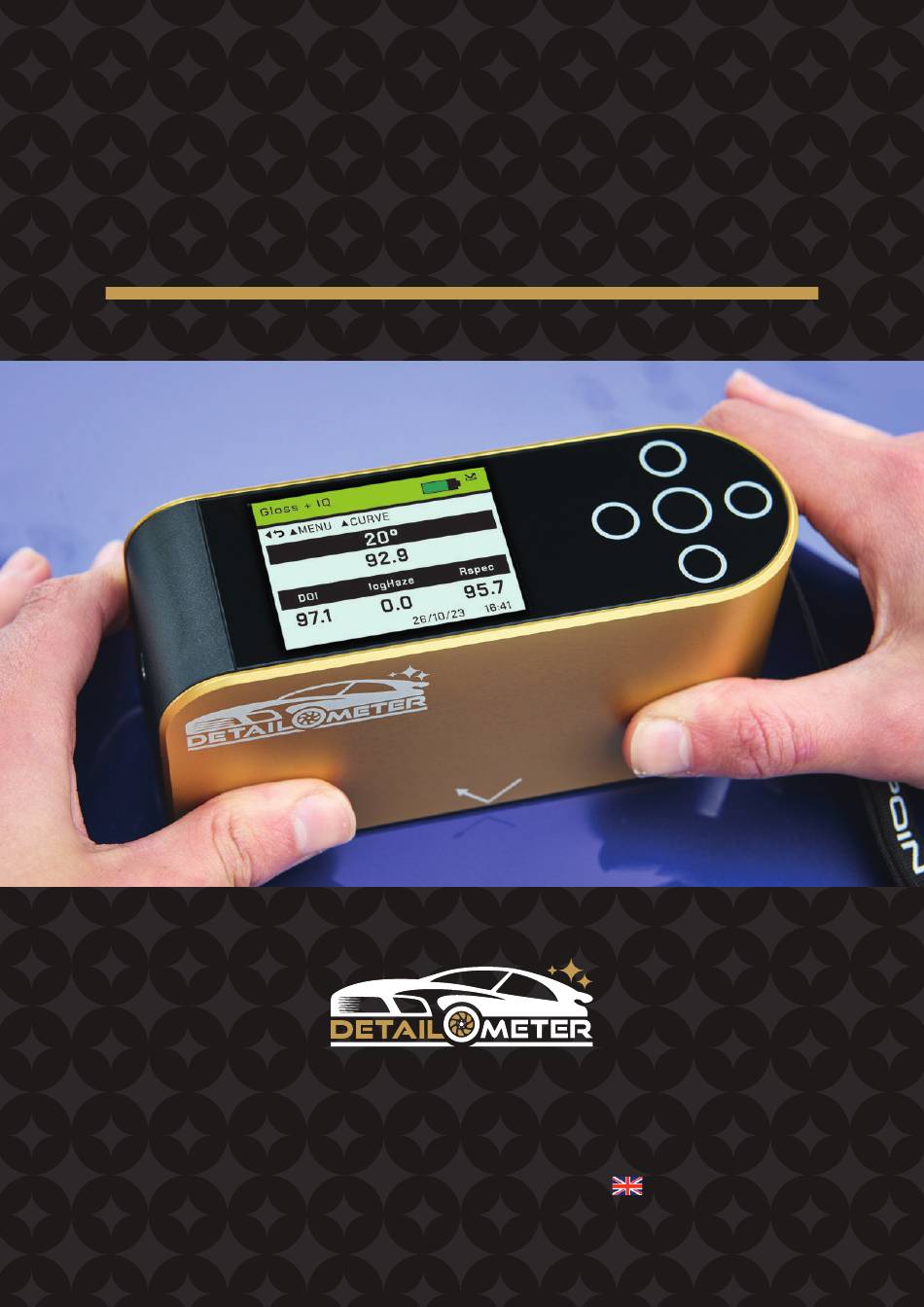

OPERATING
INSTRUCTIONS
Thank you for purchasing this Rhopoint product.
Please read these instructions carefully before operating this product and retain them for
future reference. The images shown in this manual are for illustrative purposes only.
Manufactured by Rhopoint Instruments in the United Kingdom

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Detailometer and is the answer not in the manual?

Questions and answers

Related Manuals for Rhopoint Instruments Detailometer

Summary of Contents for Rhopoint Instruments Detailometer

  • Page 1 Thank you for purchasing this Rhopoint product. Please read these instructions carefully before operating this product and retain them for future reference. The images shown in this manual are for illustrative purposes only. Manufactured by Rhopoint Instruments in the United Kingdom...
  • Page 2 This instruction manual contains important information about the setup and use of the Detailometer. It is essential that the contents be read before powering up and operating the instrument. If this instrument is passed to other users you must ensure that the instruction manual is supplied with the instrument.

  • Page 3: Table Of Contents

    Contents Storage and handling About the Detailometer Accessories Functional Overview Icons used Power USB Connectivity Switching the Instrument on Operation Menu Screen Setup Screen Calibration Screen Measurement Screen Pass/Fail Setup Screen IQ Screen Control Screen Bluetooth Communication and Pairing Pairing Procedure...
  • Page 4 Appearance Theory Rhopoint Detailometer Glossmeter & Goniophotometer Why is reflected appearance important? Gloss Measuring Gloss with the Rhopoint Detailometer % Reflectance Haze Measuring Haze with the Rhopoint Detailometer Haze Compensation Corrected Haze Measurement on Metallic Coatings Distinctness Of Image (DOI) Reflected Image Quality (RIQ)

  • Page 5: Storage And Handling

    Prevent exposure of the instrument to direct sunlight for prolonged periods and to continuous humidity and condensation. www.detailometer.com...

  • Page 6: About The Detailometer

    At 20° the Detailometer uses a diode array to measure the distribution of the reflected light at +/- 7.25° from the specular angle of reflection in steps of 0.02832°.

  • Page 7: Accessories

    Accessories The instrument is supplied as a standard package complete with all accessories required to calibrate and recharge the unit including: • Detailometer Glossmeter / Goniophotometer. • NIST traceable high gloss calibration tile including UKAS certificate. • Cleaning cloth for calibration tile.

  • Page 8: Functional Overview

    Operate / Enter Button Mains / USB Charger Input Connector The instrument is controlled by pressing the relevant touch sensitive button. Functionality is dependent on whether the instrument is in menu or operate mode as detailed in the operation sections that follow. www.detailometer.com...

  • Page 9: Icons Used

    Measure / Enter Right Down Left Icons used Tabs Function Home Measure / Enter Right Down Left Power off www.detailometer.com...

  • Page 10: Power

    Power The Rhopoint Detailometer is powered by an integrated high capacity lithium ion cell. Fully charged the instrument will operate continuously for >17 Hours or >20,000 readings. A mains powered USB charger is provided with the unit. This will fully charge the unit when connected to the unit’s USB input (6) in up to 9 hours.
  • Page 11 USB Remote Control - Allows control of the Detailometer remotely by sending ASCII commands from a computer or PLC. In this mode the instrument displays REMOTE CONTROL ACTIVE on the main measurement screen. Battery Charge Only – Allows USB charging of the instrument – all instrument functions are available however do not operate the instrument whilst it is connected via USB and/or charging.

  • Page 12: Switching The Instrument On

    To switch the Rhopoint Detailometer on, press the On / O button located near the USB socket. The instrument will display the Detailometer logo and then the Home screen displaying measurement parameters according to the instruments default settings or those previously configured.

  • Page 13: Operation

    Operation With the unit switched on and initialised the Detailometer will display the Home screen as shown below. Gloss + IQ MENU CURVE 20º 100.7 logHaze C Rspec 92.3 100.7 26/10/23 16:41 In this mode, measurements can be made by simply pressing the Measure / Enter button on the instrument’s keypad.
  • Page 14 92.3 100.7 26/10/23 16:41 In the Home screen press the Up button to access the Reflectance curve screen. The goniophotometric profile and data for the last 20° measurement is displayed. Gloss + IQ Gloss 99.1 92.1 logHzC Rspec 98.6 www.detailometer.com...

  • Page 15: Menu Screen

    Calibrate Instrument – Perform a calibration of the instrument as detailed under Operation. Switch O – Turn o the instrument. Press the Left button to return to the Home screen. Press the Right button to access the Setup screen. www.detailometer.com...

  • Page 16: Setup Screen

    (See Setup Menu Screen) Factory Menu Pin locked menu options for Rhopoint Authorised Service Centres About Menu Information about the instrument’s firmware version, serial number and last date of Factory Calibration Press the Left button to return to the Home screen. www.detailometer.com...

  • Page 17: Calibration Screen

    Set to OFF, the dialogue box is disabled; measurements are made. Calibrate to Set to Black - a traceable gloss tile is used as the calibration standard. Set to Mirror - a traceable mirror tile is used as the calibration standard (optional). www.detailometer.com...
  • Page 18 CAL + Hz - A combination of the two above. Haze Tolerance Set the tolerance for the standard being used for calibration. An ideal calibration standard should have zero haze, therefore setting this value anywhere between 0 – 9.9 defines the acceptable pass band. www.detailometer.com...

  • Page 19: Measurement Screen

    Enter button once again at any time during the sequence. Range Selects gloss measuring range to: Auto – Full range Black – Standard gloss scale Mirror - Extended scale for highly reflective materials, polished metals, requires calibration using Mirror standard. www.detailometer.com...
  • Page 20 Gloss + IQ MENU CURVE 20º logHaze C Rspec 92.3 100.7 26/10/23 16:41 With Reflectance set to GU measurement results for each angle are displayed as: Gloss + IQ MENU CURVE 20º 100.7 logHaze C Rspec 92.3 100.7 26/10/23 16:41 www.detailometer.com...

  • Page 21: Pass/Fail Setup Screen

    ON or OFF. Press the Right button to edit the min / max limits. Pass/Fail Done : Max Min 20° : 90.0 Hz/logHz : 100.0 DOI/RIQ : 100.0 Rspec : 100.0 Select the Done option to complete the process. www.detailometer.com...
  • Page 22 RED. Saved data and data transmitted by Bluetooth will also contain the pass/fail field. Gloss + IQ MENU CURVE 20º 100.7 logHaze C Rspec 92.3 73.0 26/10/23 16:41 Note – The Pass / Fail option is not available when % reflectance mode is selected. www.detailometer.com...

  • Page 23: Iq Screen

    Display configurations options are: DOI & RIQ, RIQ & Rspec or DOI & Rspec. Haze logHaze, an expanded scale of haze measurement. Further details of Haze test methods and logHaze can be found in the Appearance Theory section of this manual. www.detailometer.com...
  • Page 24 ON. Further details of Haze Compensation can be found in the Appearance Theory section of this manual. Press the Left button to return to the Home screen. Note – The Pass / Fail option is not available when DOI / RIQ are selected. www.detailometer.com...

  • Page 25: Control Screen

    Data – Only receive data via Bluetooth. USB Mode Set the functionality of the USB connection when connected to a PC. Charge – Charge the instrument via USB (note the instrument can be operated during this time but cannot be used to make measurements). www.detailometer.com...

  • Page 26: Bluetooth Communication And Pairing

    PC applications including Excel, Word, Wordpad, OpenO ce or SPC packages. Pairing Procedure Switch on the Rhopoint Detailometer. The Bluetooth icon must be visible to allow pairing. The Detailometer can now be connected to the App for easy transfer of readings. www.detailometer.com...

  • Page 27: Connectivity To Rhopoint Quick Report

    Connectivity to Rhopoint Quick Report The Detailometer can be connected to the Rhopoint Quick Report App. This will quickly and easily create a professional detailed report of a vehicle paint work. The App is available on IOS, Chrome and Android. Further details on using the Quick Report App are detailed in the App Manual.

  • Page 28: Instrument Setup Screen

    Set the orientation of the screen to NORMAL or INVERTED Backlight Set screen intensity to either 20%, 40%, 60%, 80% or 100% brightness Power O Set instrument to automatically power o after either 30sec, 60sec, 90 sec or 120 sec of inactivity or DISABLE this feature www.detailometer.com...
  • Page 29 On / O button is pressed. Down button to start a new batch, this action is either confirmed or Press the Left / Right cancelled by selecting the required box when prompted using the buttons and pressing the Enter button. www.detailometer.com...

  • Page 30: Maintenance Screen

    Enter button again to save the value. Press the Left button to return to the Home screen. Press the Maintenance Screen The Maintenance screen is used by Rhopoint Approved Service Centres. It is PIN locked to prevented unauthorised access. www.detailometer.com...

  • Page 31: About Screen

    About Screen Instrument Setup BACK © 2010-2023 Rhopoint Instruments Ltd Serial Number : 1234567 Firmware Version : 5.01 Scanner Version : 180906 Factory Cal. : 2023-07-20 Battery Voltage : 3.57V USB Charge : OFF The About screen is for information only.

  • Page 32: Appearance Theory

    A glossmeter is used to quantify the amount of light reflected from a surface. At 20° the Rhopoint Detailometer uses a diode array to measure the distribution of reflected light +/- 7.25° from the specular reflection angle in steps of 0.02832°.

  • Page 33: Why Is Reflected Appearance Important

    The instrument provides goniophotometric profiles, gloss, haze and distinctness of image values which can be used to assess the visual qualities of any product. As well as assessing the visual impact of a surface, the Detailometer can also be used to identify problems associated with coating formulation and application.

  • Page 34: Gloss

    The Gloss Unit (GU) is defined in international standards including ISO 2813 and ASTM D523. It is determined by the amount of reflected light from a glass standard of known refractive index. Calibration tiles supplied with Rhopoint instruments are traceable to master glass standards held at NIST (Canada). www.detailometer.com...

  • Page 35: Measuring Gloss With The Rhopoint Detailometer

    20 degree - 2000GU = 100% reflectance So, 20 degree - 1000GU = 50% reflectance, 500GU =25% etc. When the Detailometer is calibrated in this mode it will calibrate to the GU value but will still display % reflectance. www.detailometer.com...

  • Page 36: Haze

    Haze is caused by microscopic surface texture which di uses light adjacent to the main component of the reflected light. When viewing the reflection of a strong light source in a surface with high haze the image “blooms” and has a bright halo around it. www.detailometer.com...
  • Page 37 Haze is an important measure for highly polished metals and is often associated with polishing marks and machining direction. Gloss-haze meters are traditionally used to measure this parameter and use a standard glossmeter design with additional light stops and diodes to measure the haze component 2° either side of the specular component. www.detailometer.com...

  • Page 38: Measuring Haze With The Rhopoint Detailometer

    Taking reliable readings with a traditional gloss-haze meter can be di cult as the sample surface needs to be completely flat and un-textured. The Rhopoint Detailometer automatically compensates for sample surface flatness and texturing allowing haze measurements to be taken on a much wider range of product surfaces.

  • Page 39: Haze Compensation

    This di use light exaggerates the haze signal for these surfaces causing higher than expected readings. The Rhopoint Detailometer compensates for reflection from within the coating for highly reflective pigments, metallic coatings and speciality pigments, allowing the haze of any painted surface to be measured.

  • Page 40: Corrected Haze Measurement On Metallic Coatings

    An advantage of the Detailometer is that unlike a conventional instrument, compensation is calculated using a region adjacent to the haze angle. This techniques gives compatible readings on solid colours but also compensates for directional reflection...

  • Page 41: Distinctness Of Image (Doi)

    finish was not as crucial. The Detailometer measures the DOI of a surface by quantifying the way a reflected measurement beam is spread and distorted around the specular angle.

  • Page 42: Reflected Image Quality (Riq)

    Reflected Image Quality (RIQ) Reflected Image Quality is a new measurement developed by Rhopoint Instruments to provide greater sensitivity when evaluating highly reflective coatings and the specular / di use element of lower gloss materials. Two highly reflective surfaces that have very small changes in orange peel or texture will show very little or no change in DOI due to the way that it is calculated but will appear quite di erent visually.
  • Page 43 The RIQ value of a surface is also a number between zero and one hundred; a surface that exhibits a perfect undistorted image returns a value of 100, as the values decrease higher surface texture is present and the image sharpness reduced. www.detailometer.com...

  • Page 44: Rspec- Peak Specular Reflectance

    IQ Reflectance 20° Gloss 89.1 logHzC 74.5 Rspec 57.7 The same paint applied to two panels, the second system has orange peel / waviness which is due to incorrect application setting on spray gun. RSPEC is shown by the red line. www.detailometer.com...
  • Page 45 Either of these e ects will cause readings errors using a standard glossmeter. To overcome this the Detailometer scans the reflectance profile of the surface from 12.75° - 27.25° and identifies the angular position of RSPEC. Gloss, Haze, DOI and RIQ values are then calculated using the RSPEC angular position as the 20°...

  • Page 46: Goniophotometric Profile

    Goniophotometric Profile The Gloss, Haze, DOI, RIQ and RSpec values produced by the Detailometer can be used to assess the visual quality of any surface. Alternatively, if required, the full Goniophotometric curves can be downloaded to PC for a detailed understanding of specular reflectance.

  • Page 47: Calculating Gloss, Haze, Rspec And Doi From A Goniophotometric Profile

    Calculating Gloss, Haze, RSpec and DOI from a Goniophotometric Profile , the Rhopoint Detailometer calculates the Gloss value For the above example at 20 by summing the gloss values +/- 0.9 from the specular angle. These methods / tolerances are specified in ASTM D523/ISO 2813.
  • Page 48 Rhopoint Instruments Ltd Rhopoint Americas Inc. Rhopoint Instruments GmbH Rhopoint House, Enviro 21 Park, 1000 John R Road, Seebauer O ce Center, Queensway Avenue South, Suite 209, Troy, Am Weiglfeld 24, St Leonards on Sea, TN38 9AG, UK MI 48083, USA 83629 Weyarn, Deutschland T: +44 (0)1424 739 622 T: 1.248.850.7171...
