Ultraroof Tile Installation Guide
THIS BOX CONTAINS THE TILES AND STARTER STRIP FOR AN
ULTRAROOF INSTALL.
READ BEFORE FITTING
FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN TEMPORARY DISTORTION
WHICH MAY MEAN TILES WILL NEED TO BE RELAID. Following these instructions allows
tiles to correctly 'float' for expansion and contraction.
1. ENSURE TILES ARE FITTED TO THE CORRECT INSERTION LINE –
DO NOT PUSH TILES TOGETHER. Insertion lines vary according to
temperature when installed
2. DO NOT OVERTIGHTEN SCREWS

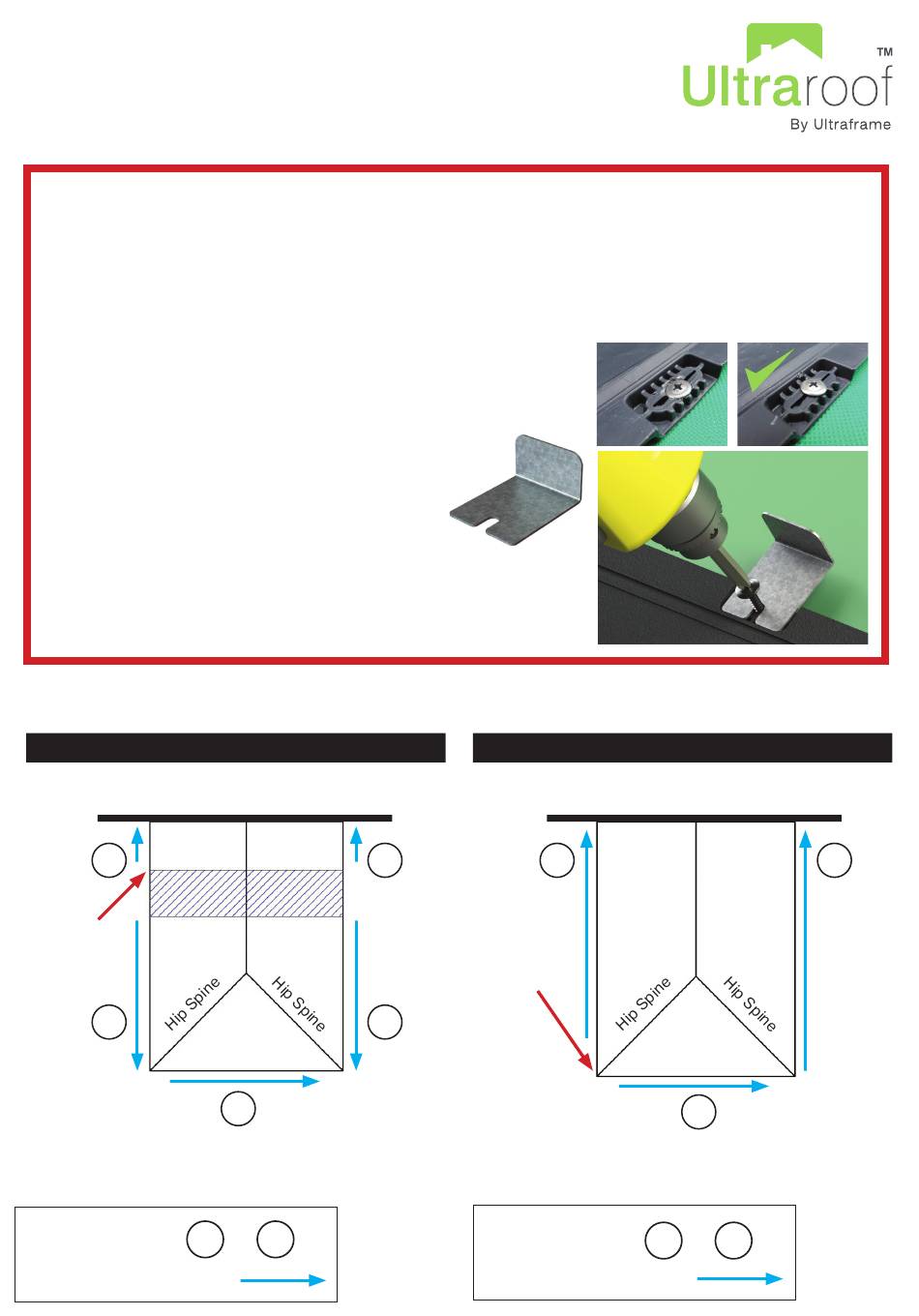

The NRTT001 Tile Screw Fixing Tool can be
found with the NRTF050 screws inside the fixings
component box.
Hold the tool in place as shown whilst installing each screw and remove
to ensure a fit which is close but not too tight – This is to allow for the
expansion and contraction of the tiles.
Tile starter strips are lettered in correspondence with its location shown in the tile location plan. TILE STARTER STRIPS ARE NOT
FITTED IN ALPHABETICAL ORDER, PLEASE FOLLOW INSTALLATION SEQUENCE ON THIS PAGE FOR CORRECT FIT.
GLAZED ROOF
Details shown also apply to Victorian shapes.
1
FIRST
STARTER
STRIP FITTED
FROM HERE
2
If a roof contains rectangular glazing panels, starter strips must
be set out from the glazing bar centre.
KEY
Fitting order is labelled
Direction of starter strip fitting
HOST WALL
Hip spine to hip spine
3
Page 3 Figure 2
1 5
to
5 1
FIRST
STARTER
STRIP FITTED
FROM HERE
4
If a roof contains no rectangular glass panels and is classed as
'solid' then starter strips must be set out from the hip spine.
KEY
Fitting order is labelled
Direction of starter strip fitting
Overtight Correctly tightened
X
SOLID ROOF
HOST WALL
2
1 3
to
3
1
