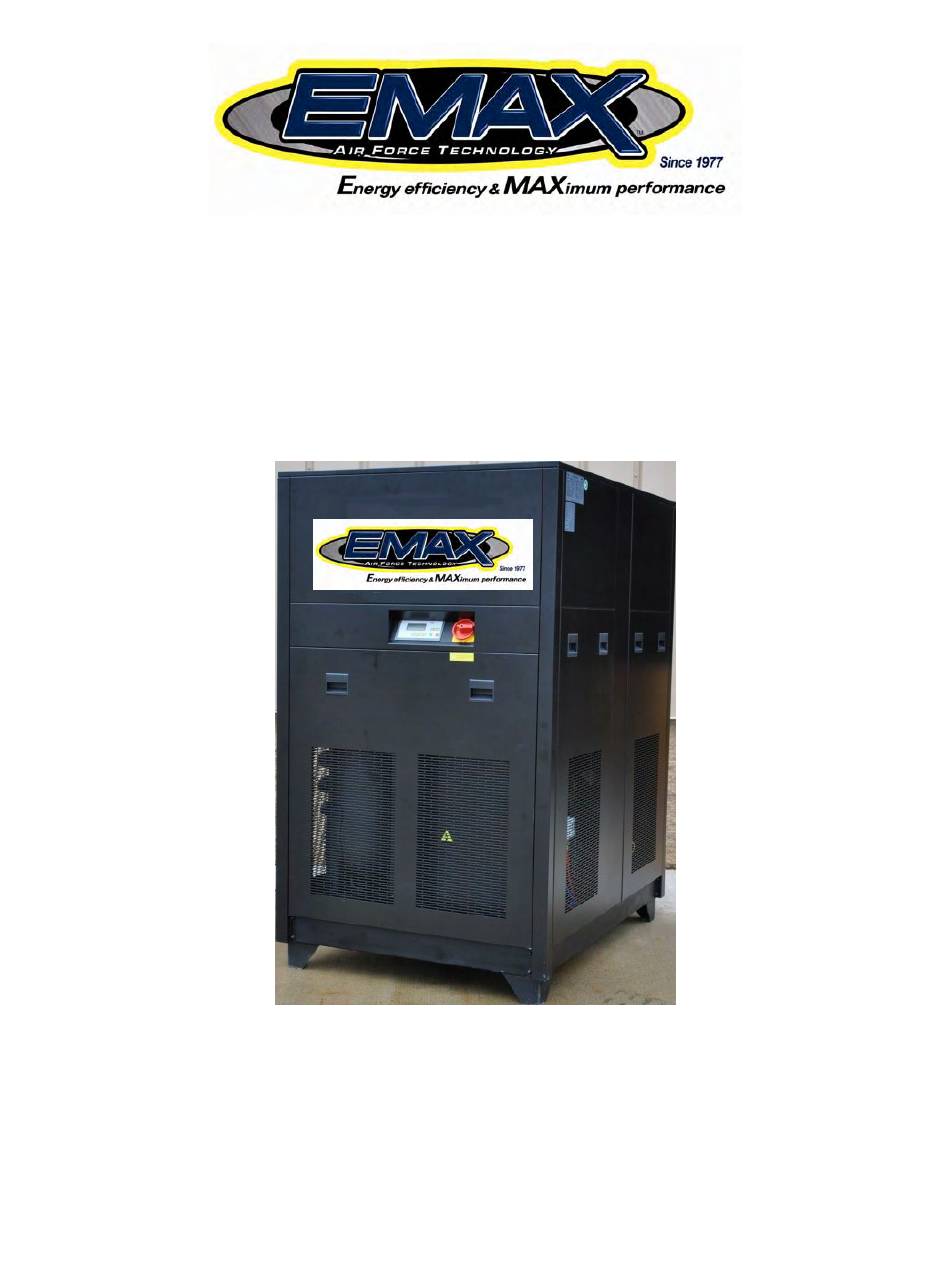

- Page 1 AIR DRYER Manual EDR1150029 EDR2300460 MODELS: EDR1150050 EDR4600460 EDR1150115 EDR4600700 EDR1150130 EDR4600850 EDR2300280 EDR4601500 EDR4600280 EDR4602000 07.08.13 Rev. 0.2...
-
Page 3: Table Of Contents
AIR DRYER INSTRUCTION MANUAL Contents GENERAL SAFETY INFORMATION ........2 READ PRIOR TO STARTING THIS EQUIPMENT ....3 DESCRIPTION................3 INSTALLATION ..............5 OPERATION ................7 MAINTENANCE ..............9 RESETTING THE FILTER ALARM ........9 FLOW SCHEMATIC ..............10 TROUBLESHOOTING ............11 WIRING DIAGRAMS ............19... -
Page 4: General Safety Information
AIR DRYER INSTRUCTION MANUAL GENERAL SAFETY INFORMATION Safety This manual contains very important information on SAFETY and how to PREVENT EQUIPMENT PROBLEMS. The following will help in understanding this information: DANGER INDICATES AN IMMINENTLY HAZARDOUS SITUATION WHICH, IF NOT AVOIDED, WILL RESULT IN DEATH OR SERIOUS INJURY. -
Page 5: Read Prior To Starting This Equipment
AIR DRYER INSTRUCTION MANUAL READ PRIOR TO STARTING THIS EQUIPMENT 1. This equipment has been thoroughly checked, packed and inspected before leaving our plant. 2. This equipment is shipped to accommodate a forklift truck. Use a forklift when moving and installing this equipment. Never lift it by hooking on to the air inlet and outlet connections. - Page 6 AIR DRYER INSTRUCTION MANUAL Working Flow Compressed air, saturated with water vapor, enters the dryer and is pre-cooled by the outgoing refrigerated air in an air-to-air heat exchanger (pre-cooler). In the pre-cooler, the warm incoming air is pre- cooled and the outgoing refrigerated air is warmed, this reduces the amount of heat that will have to be removed later by the refrigeration system, providing a more energy efficient dryer.
-
Page 7: Installation
AIR DRYER INSTRUCTION MANUAL INSTALLATION Mounting 1. A dry, well-ventilated area is the best location for installation of the dryer. It also should be in an area where the ambient temperature will not exceed 100°F (38°C) or fall below 34°F (1°C). - Page 8 AIR DRYER INSTRUCTION MANUAL Typical Piping connection Three-valve bypass line should be installed before the dryer air inlet valve and after the dryer air outlet valve. This valve always permits the continued use of the plant compressed air system during any dryer maintenance or servicing operations.
-
Page 9: Operation
AIR DRYER INSTRUCTION MANUAL OPERATION Preparation for start-up 1. Be sure that voltage to unit, air inlet pressure, air inlet temperature, air flow is as marked on unit serial number tag. 2. Blow off the compressed air lines for a few minutes to remove welding slag. - Page 10 AIR DRYER INSTRUCTION MANUAL During Operation The current models use R134A refrigerant. Units with refrigeration dew-point gauges (models below 400 CFM), make sure reading is in the yellow and green area. If unit has a PLC (models 400 CFM & above), make sure the display shows 37 F (3 C ).
-
Page 11: Maintenance
AIR DRYER INSTRUCTION MANUAL MAINTENANCE To avoid shock and serious personal injury, disconnect, tag and lock out power source then release all pressure from the system before attempting to install, service, relocate or perform ANY maintenance or troubleshooting. Air-cooled condenser Ambient air should be free to flow across the refrigeration condenser for heat exchanging. -
Page 12: Flow Schematic
AIR DRYER INSTRUCTION MANUAL FLOW SCHEMATIC... -
Page 13: Troubleshooting
AIR DRYER INSTRUCTION MANUAL TROUBLESHOOTING Problem Possible Cause Repair Comments Dryer is switched 3-phase dryers: The Invert two phases 3-phase dryers are equipped on, indicator light is connection has with a phase controller to avoid lit but the refrigerant inverted phases the fans from turning in the compressor does not opposite direction... - Page 14 AIR DRYER INSTRUCTION MANUAL TROUBLESHOOTING Problem Possible Cause Repair Comments Dryer is switched on, Excessive temperature Allow time for compressor indicator light is lit but on crankcase of to cool. Check hot gas the refrigerant compressor. The hot bypass adjustment and compressor does not gas bypass valve may amount of refrigerant.
- Page 15 AIR DRYER INSTRUCTION MANUAL TROUBLESHOOTING Problem Possible Cause Repair Comments Dryer not running. No Power failure Check power to unit Power Faulty wiring, loose Request assistance from a terminals qualified electrician or refrigeration contractor. Magnetic contactor Have contactor checked by damage a qualified electrician or refrigeration contractor &...
- Page 16 AIR DRYER INSTRUCTION MANUAL TROUBLESHOOTING Problem Possible Cause Repair Comments Condense pressure too High ambient Check minimum/maximum high temperature temperature ranges Fan motor switch not Set fan switch properly set properly Air-cooled models – Clean condenser and check Dirty, clogged for good air flow condenser fins, obstructed airflow...
- Page 17 AIR DRYER INSTRUCTION MANUAL TROUBLESHOOTING Problem Possible Cause Repair Comments Water in system Inlet and outlet Check inlet and outlet This dryer is designed for air connections are connections. flow in one direction only. reversed. Inlet and outlet directions are (compressed air) identified on the dryer.
- Page 18 AIR DRYER INSTRUCTION MANUAL TROUBLESHOOTING Problem Possible Cause Repair Comments Water in system Excessive moisture in Check the separator In some systems moisture compressed air accumulates in the line ahead of and drain system and the dryer. If this moisture is compressor after cooler pumped into the dryer ahead of the dryer.
- Page 19 AIR DRYER INSTRUCTION MANUAL TROUBLESHOOTING Problem Possible Cause Repair Comments High pressure drop Excessive compressed Check actual pressure and This dryer is designed for a maximum air flow. If too much air flow or too low air flow through the dryer. air is pumped into the dryer, inlet pressure.
- Page 20 AIR DRYER INSTRUCTION MANUAL TROUBLESHOOTING Problem Possible Cause Repair Comments The unit stops running Excessive compressed Design conditions and The dryer is designed for working into calculated during operation or air inlet temperature. correction factors are design conditions, and if cycles off and on.
-
Page 21: Wiring Diagrams
AIR DRYER INSTRUCTION MANUAL WIRING DIAGRAMS All units are shipped with the wiring diagrams inside the units. The smaller units, the diagrams are attached to the inside of pull-off panel on the side of the electrical components. The diagrams for the larger units are on the inside of the electrical control box, which has to be removed with a Phillips-head screwdriver.
