Teac FD-55 Series Installation Manual

.,
.... GENERAL

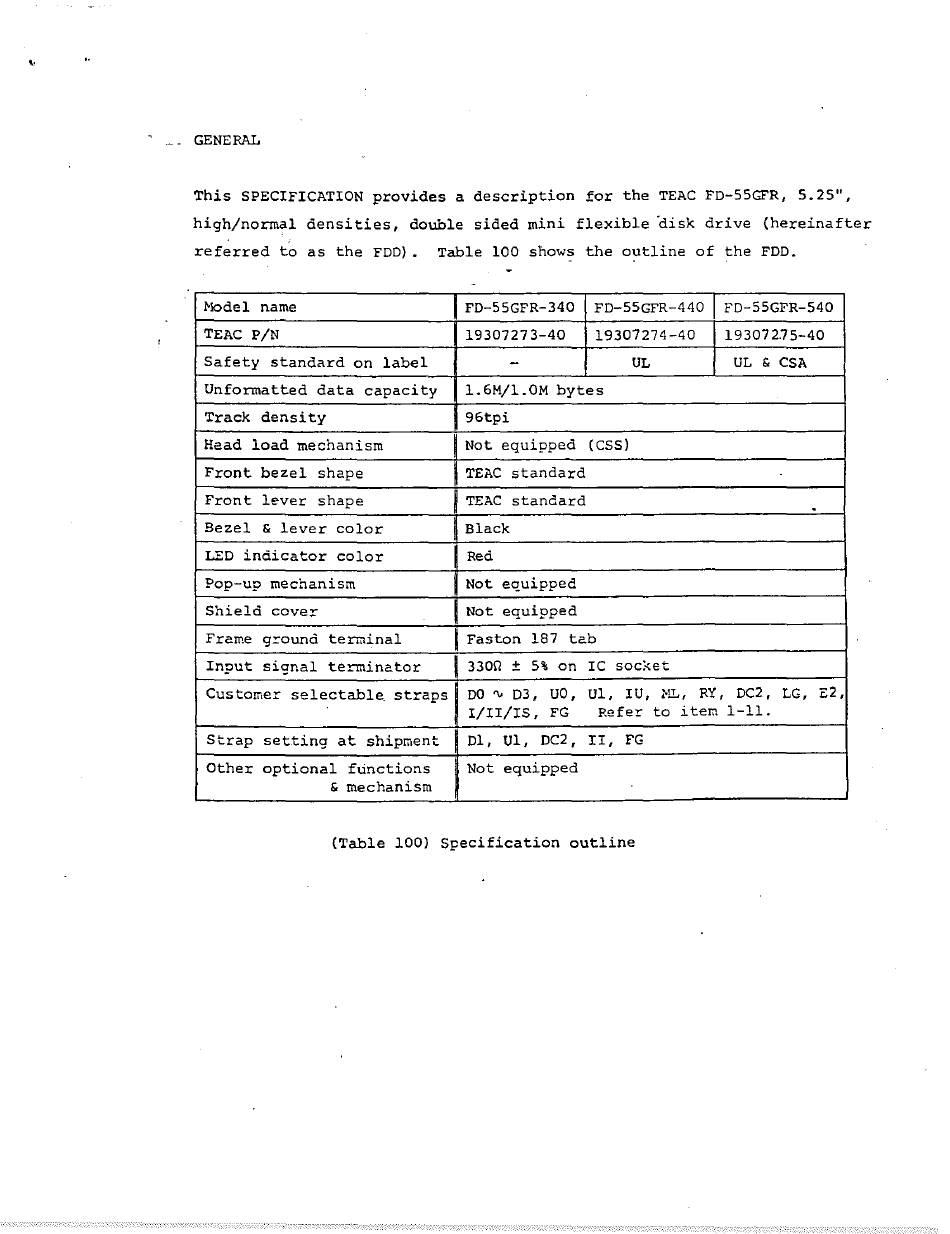

This SPECIFICATION provides a description for the TEAC FD-55GFR, 5.25",
high/normal densities, double sided mini flexible disk drive (hereinafter
referred to as the FDD). Table 100 shows the outline of the FDD.
Hodel name
FD-55GFR-340 FD-55GFR-440 FD-55GFR-540
TEAC PIN
19307273-40 19307274-40 19307275-40
Safety standard on label
-
UL UL
&
CSA
Unformatted data capacity
l.6M/l.OM bytes
Track density 96tpi
Head load mechanism
Not equipped (CSS)
Front bezel shape TEAC standard
Front lever shape
TEAC standard
.
Bezel
&
lever color Black
LED indicator color
Red
Pop-up mechanism
Not equipped
Shield cover
.
Not equipped
Frame ground terminal
I
Fasten 187 tab
Input signal
terminator 330n
±
5\ on IC socket
Customer selectable straps
DO '" D3, UO, Ul, IU, HL, RY, DC2, LG, :r:2,
I/II/IS, FG
Hefer to item l-ll.
Strap set_ting at shipment Dl, Ul, DC2, II, FG
Other optional functions Not equipped
&
mechanism
(Table 100) Specification outline
