Owner's Manual

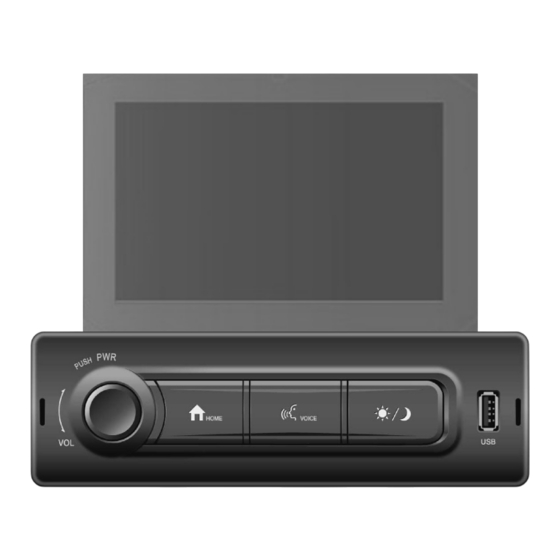

CQ-RQ1EN04W Silver Box
Please read these instructions carefully before using this product and keep this manual for future reference.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CQ-RQ1EN04W and is the answer not in the manual?

Questions and answers

Summary of Contents for Panasonic CQ-RQ1EN04W

  • Page 1 Owner's Manual CQ-RQ1EN04W Silver Box Please read these instructions carefully before using this product and keep this manual for future reference.
  • Page 2: Table Of Contents

    Contents Before Reading These Instructions..................................3 Safety Information......................................4 Controls Layout........................................6 HOME Screen Operation....................................7 Radio Operation.........................................8 SiriusXM Satellite Radio Operation.................................9 ® USB Music Operation......................................12 Phone Operation......................................13 Bluetooth Music Operation.....................................15 ® AUX-IN Operation......................................16 Apple CarPlay ® Operation....................................17 Android Auto Operation....................................18 Setup..........................................19 About MP3/AAC Music....................................25 Troubleshooting.......................................26 Copyrights........................................31 Specifications........................................33...
  • Page 3: Before Reading These Instructions

    Before Reading These Instructions This Owner's Manual is for 3 models CQ-RQ1EN04W/CQ-RQ1EN04W and Maintenance CQ-RQ1EN04W, All illustrations throughout this manual represent model Cleaning this unit: CQ-RQ1EN04W unless otherwise specified, The following table decribe the This product is designed and manufactured to ensure a minimum of differences among these 3 models.
  • Page 4: Safety Information

    Safety Information Read the operating instructions for the unit and all other components of your truck This manual uses pictographs to show you how to use the product safely and to alert audio system carefully before using the system. They contain instructions about how you to potential dangers resulting from improper connections and operations.
  • Page 5 (1) L’appareil ne doit pas produire de brouillage; the receiver is connected. (2) L’appareil doit accepter tout brouillage radioélectrique subi, même 4) Consult the Panasonic Service Center or an experienced radio/TV technician for help. si le brouillage est susceptible d’en compromettre le fonctionnement.
  • Page 6: Controls Layout

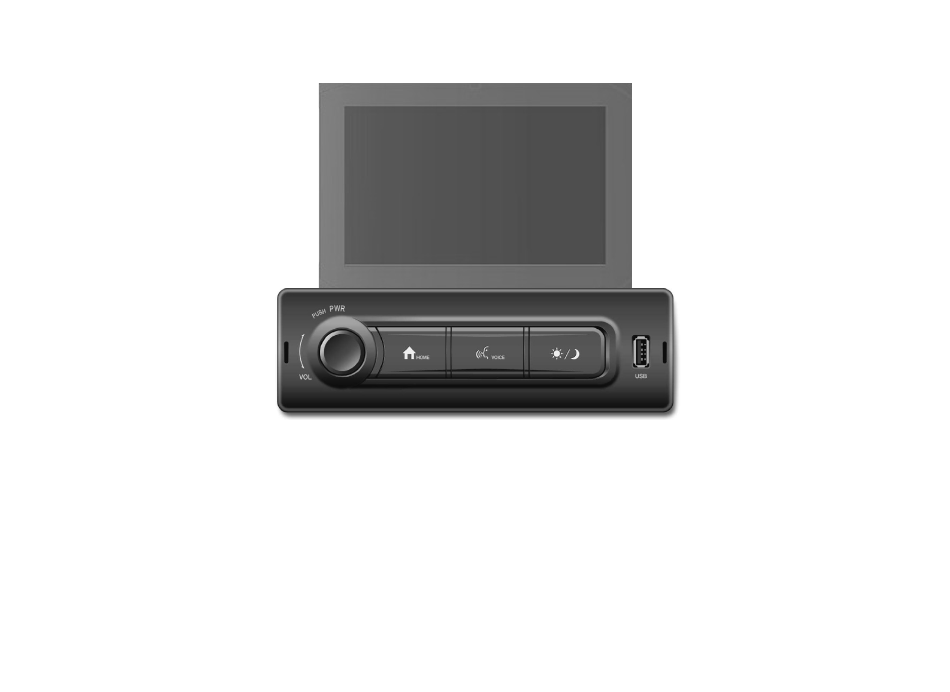

    Controls Layout Touch Panel Screen Button operation ① PWR (Power) / VOL (Volume) rotary knob Short push to turn the unit power on. Push and hold to turn the unit audio off. Rotate the volume knob to increase or decrease the volume level. Continuous rotation the volume knob to increase or decrease the volume level continuously.
  • Page 7: Home Screen Operation

    HOME Screen Operation About the HOME Screen In the HOME screen, select a widget to perform various settings and operations of the function. Touch [ ](HOME) button. The HOME screen is displayed. HOME Screen (example) Indicator Bar Display Widget (Touch to activate each function) Icon Meaning Time/Date display...
  • Page 8: Radio Operation

    Radio Operation (1) Preset Buttons Return Press and hold any preset button [1] to [6] to save the current station as a preset. Press the desired preset button to begin playback of the corresponding preset channel. Program Information Current station (2)Station Tuning Scan indicator (When scan function is activated) : Press to automatically tune to a lower frequency.
  • Page 9: Siriusxm Satellite Radio Operation

    SiriusXM Satellite Radio Operation ® SiriusXM Radio ® Artwork SiriusXM Satellite Radio brings you more of what you love to listen to, all in one ® Displays the album artwork for most SiriusXM music channels place. Get over 140 channels, including commercial-free music plus the best Program Information Return sports, news, talk, comedy and entertainment.
  • Page 10 SiriusXM Satellite Radio Operation ® (continued) Replay Control Parental Control Play / Pause The Parental Control feature allows you to limit access to any SiriusXM Press to pause and replay contect from the active channel. channels, including those with mature content. When enabled, the Parental Tune / Track Down Control feature requires you to enter a passcode to tune to the locked channels.
  • Page 11 SiriusXM Satellite Radio Operation ® (continued) Siriu sXM 內容可以延展至此頁 , 若不需要請刪除此頁面 !! ( 若刪除此頁面 , 記得後續頁碼的對應修正 !!)
  • Page 12: Usb Music Operation

    USB Music Operation (1) Operation Buttons To upper hierarchies Press [ | t] to return to the beginning of the current (or previous) file. Return Song information Folder name Press and hold [ | t] to fast reverse. During playback, press and hold [ | t] to fast reversing at 2x speed. Keep touching to switch the speed to 4x, 8x and 16x.
  • Page 13: Phone Operation

    Phone Operation Before using the Bluetooth ® Hands-free phone, register (pair) and connect Phonebook (screen example) the device to this head unit (page XX). Calling from the Phonebook: Phone screen example Touch one of the name or number of the contact Return Phone number input area which you want to call, and then the phone call is...
  • Page 14 Phone Operation (continued) Answering a Call (screen example) 1. An incoming call triggers the ringtone and an incoming call display. 2. Touch [ The call starts. • Touch [ ] (Decline) to reject an incoming call. • Changing the Voice Output: The voice output for calls is switchable between car speakers and the mobile phone speaker.
  • Page 15: Bluetooth Music Operation

    Bluetooth Music Operation ® Before using the Bluetooth ® audio player, register (pair) and connect the device to this head unit (page XX). (1) Operation Buttons Return Press [ | t] to return to the beginning of the current (or previous) file. Song information Press and hold [ | t] to fast reverse.
  • Page 16: Aux-In Operation

    AUX-IN Operation You can listen to music from a portable audio player via the auxiliary input jack. Start listening Connect a portable audio player (commercially available) with 3.5 mm (1/8") stereo mini plug cable (commercially available). Screen example...
  • Page 17: Apple Carplay Operation

    Apple CarPlay Operation ® Apple CarPlay ® Operation Wireless CarPlay Connection ® Apple CarPlay is a smart interface for iPhone, allowing you to voice-control Connect an Apple CarPlay compatible device to this head unit via Blueooth (via Siri) music, navigation, phone and messaging apps - significantly reducing connection.
  • Page 18: Android Auto Tm Operation

    Android Auto Operation Android Auto brings the most useful apps to your phone screen or your Notes: ™ compatible car display, in a format that makes it easy for you to keep your main •Turn on the Bluetooth function and Wi-Fi function of an Android smartphone ®...
  • Page 19: Setup

    Setup From the HOME screen, select Setup to access the Settings menu and select General: from 5 categories represented by the icons on the bottom of the screen: • Date- Adjust the date with timeDay, Month and Year. General, Display, Equalizer, Device List and Smartphone Volume. Select the •...
  • Page 20 Setup (continued) Display Display: • Display time when audio off- Turn ON or OFF with time display when head unit is in audio off mode. (When "Display time when audio off" is set to "ON") • Beep- Turn the Beep sound ON or OFF when the button is touched or the screen is touched.
  • Page 21 Setup (continued) Equalizer 5 Presets EQ Equalizer: • Equalizer-Select between the following EQ presets: Default, Custom1, Custom2, POP, ROCK, JAZZ, CLASSICAL, DANCE (Custom1 and Custom2 allows user to enter custom EQ settings). • Custom1- Allows user to enter custom EQ settings. •...
  • Page 22 Setup (continued) Device List Bluetooth Device Connection (Pairinig): Please turn on the Bluetooth function of your smartphone. ® Before using Bluetooth 1. Touch "Add paired device". Before you can use a Bluetooth device to make hands-free calls or stream 2. Select/Search this unit's device name [CAR BT-XXXXXX] on your smartphone's Bluetooth device audio.
  • Page 23 Setup (continued) Wireless Apple CarPlay/Wireless Android Auto connection Wireless Apple CarPlay/Wireless Android Auto connection: Please turn on the Bluetooth function and Wi-Fi function of your smartphone. (Example ) Device name of this head unit 1. Touch "Add paired device". 2. Select this unit's device name on your smartphone's Bluetooth device list screen. A message about the device to be registered is displayed.
  • Page 24 Setup (continued) Smartphone Volume Setting the Volume for Android Auto When an Android Smartphone is connected, touch [Android Auto] to set the volume for Android Auto mode. Setting the Volume for Apple CarPlay When an iPhone is connected, touch [Apple CarPlay] to set the volume for Apple CarPlay mode.
  • Page 25: About Mp3/Aac Music

    About MP3/AAC Music ■ Playable audio files on this unit The following audio files are supported. Playable audio files File Format AAC (.aac) AAC: AAC LC/HE-AAC v1(played back as LC) MP3(.mp3) MPEG Audio: MPEG1 Layer3/MPEG2 Layer3/MPEG2.5 Layer3 Notes: • AAC files with DRM cannot be played. •...
  • Page 26: Troubleshooting

    Troubleshooting What appears to be trouble is not always serious. Check the following points before calling a service center. For operations with the external components, refer also to the instructions supplied with the adapters used for the connections (as well as the instructions supplied with the external components).
  • Page 27 Troubleshooting (continued) Condition Checking Items Bluetooth ® connection The Bluetooth device does not detect this unit. => Turn off, then turn on the Bluetooth device. ® ® => Turn off, then turn on this unit. This unit does not pair with the Bluetooth ®...
  • Page 28 Troubleshooting (continued) When related SiriusXM ® Radio Advisory Messages appears on screen, please check below recommendations to reslove problems. Checking Items (Recommendation) Advisory Messages SiriusXM Radio Check Antenna 1. The radio has detected a fault with the SiriusXM ® antenna. The antenna cable may be either disconnected or damaged. 2.
  • Page 29 Troubleshooting (continued) Condition Checking Items ® Apple CarPlay Connection failed • Unusual communication between this head unit and your iPhone. => When using wireless connection to Apple CarPlay ® , if you encounter a situation where the connection cannot be made, please try to delete both Bluetooth ®...
  • Page 30 Troubleshooting (continued) 故障排除內容若有追加可以延展至此頁 , 若不需要請刪除此頁面 !! ( 若刪除此頁面 , 記得後續頁碼的對應修正 !!)
  • Page 31: Copyrights

    Copyrights The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. ® Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge and has been certified by the developer to meet Apple performance standards.
  • Page 32 This product incorporates the following software: (1) the software developed independently by or for Panasonic Corporation, (2) the software owned by third party and licensed to Panasonic Corporation, (3) the software licensed under the GNU General Public License Version 2 (GPL V2), (4) the software licensed under the GNU LESSER General Public License, Version 2.1 (LGPL v2.1)
  • Page 33: Specifications

    Specifications <General> <Wi-Fi section> Power supply : 12 V DC (9V to 16V allowable) IEEE Standard : Wi-Fi 5 (IEEE 802.11ac) 5 GHz VHT80 or VHT40 Current consumption : Less than 2.5 A (USB mode, 0.5 W x 4 channels) Frequency Band(s) : 5 GHz (Band 1 only) Maximum power output : 45 W ×...
  • Page 34: Navigation Operation

    Navigation Operation NNG Truck Navigation This head unit is equipped with NNG Truck navigation which provides truck-specific routing. Please refer to the specific website for the complete NNG Truck manual: http://apphelp.copilotgps.com/copilottruck/en-gb/...
  • Page 35: Camera Operation

    Camera Operation (Example ) Display the camera screen Camera View display: ❶ Return to HOME screen. Starting procedure 1. Touch [Camera] icon on the HOME screen. 2. The camera image is displayed on the screen. Touch each view angle (Front/ Rear/Left/Right) for instant camera image viewing.
  • Page 36: Alarm Operation

    Alarm Operation Alarm Once the alarm clock is activated, a pop-up screen with the option Alarm clock can be activated or deactivated with "Alarm Activation" Snooze or Dismiss appears. seeting. You can set alarm clock as you need . Alarm Setting: Alarm time: Set the desired alarm time.
