OPERATING INSTRUCTIONS

FOR

RADIO TEST EQUIPMENT

MODELS 510X-530

THE HICKOK ELECTRICAL INSTRUMENT COMPANY

CLEVELAND OHIO U. S. A.

Need help?

Do you have a question about the 510X and is the answer not in the manual?

Questions and answers

Summary of Contents for Hickok 510X

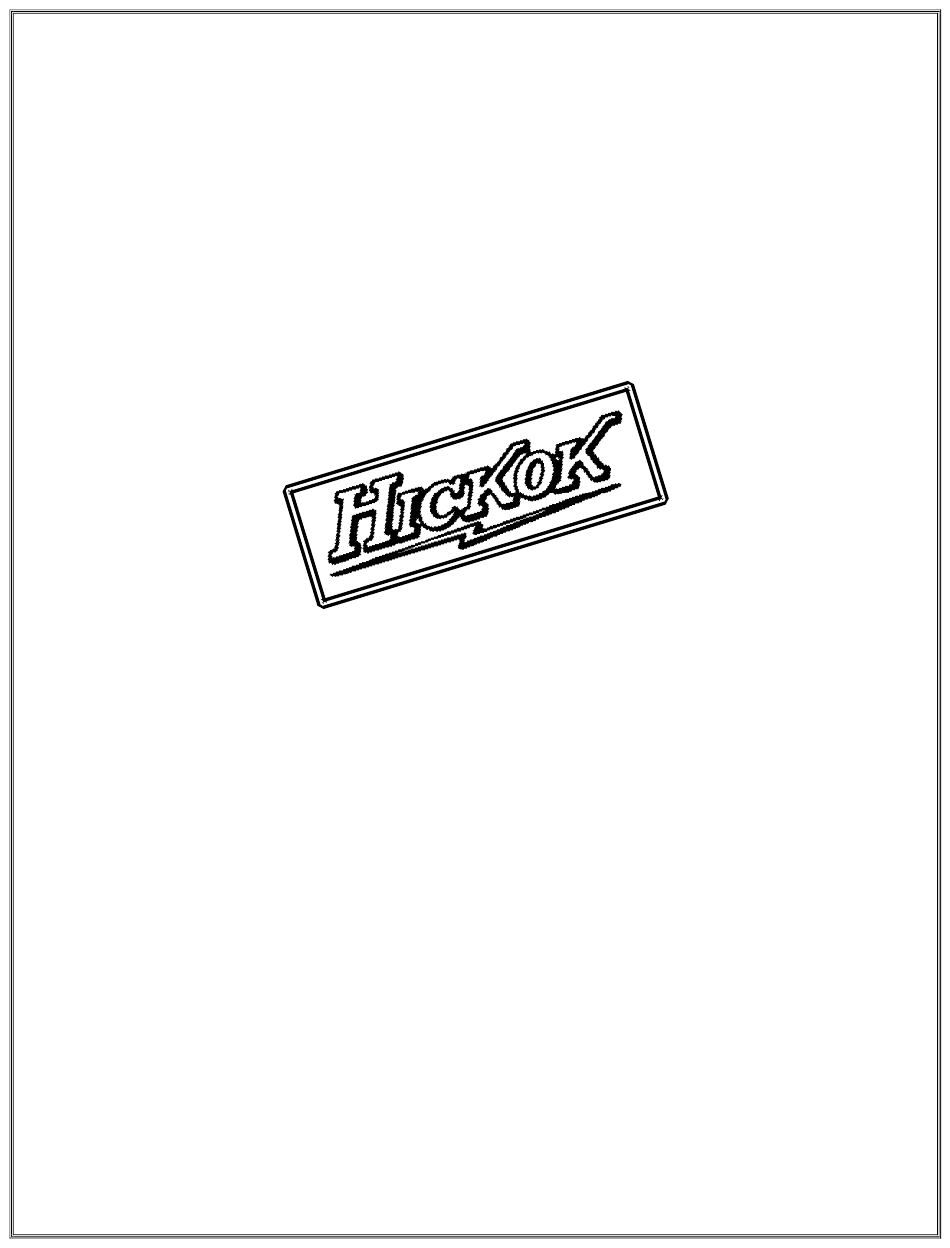

Page 1 OPERATING INSTRUCTIONS RADIO TEST EQUIPMENT MODELS 510X-530 THE HICKOK ELECTRICAL INSTRUMENT COMPANY CLEVELAND OHIO U. S. A.
Page 2 THE INSTRUMENT PACKED HERE WITH IS: PACKER’S CHECK 1 MODEL 530 DYNAMIC MUTUAL CONDUCTANCE TUBE TESTER._____ 1 MODEL 510X DYNAMIC MUTUAL CONDUCTANCE COMBINATION TUBE TESTER AND ANALYZER._____________________________________ ACCESSORIES INCLUDED WITH THE 530 TESTER ARE: 1 – TAG “IMPORTANT” INFORMATION ______________________________ 1 –...
Page 3 The Center switch in the top row controls the filament voltage. The 530 and 510X testers are now equipped to test tubes with filament voltages up to 117 volts. The Potentiometer "L" controls the sensitivity of this meter. When set at 60...
Page 4 25%, and an amplifier tube when it is down 20% below standard. (Manufacturers Specifications). This dual scale feature is found only in Hickok instruments. The Potentiometer "R" controls the "C” bias on the tube. Different tubes are operated at different values of "C"...
Page 5 by Raytheon. Rectifier tubes should read in the green sector if satisfactory. Separate tests are made for each plate. In the center of the panel are two push buttons marked “GAS TEST” and “AMPL.TEST". The button “AMPL.TEST” is used when testing all tubes having mutual conductance, that is, all amplifier tubes.
Page 6 That is not Dynamic Mutual Conductance. In the 510X and 530 tube testers there is applied to the grid, in addition to its regular direct current “C” bias, an alternating signal voltage which modulates the plate current.
Page 7 The following simple illustrations will make clear the value of the mutual conductance test, and the fallacy of the emission test. The above figure represents a conventional stage of resistance coupling. The gain for this stage is the product of the resistance, R, multiplied by the Mutual Conductance in mhos of the tube T1.
Page 8 In the 510X and 530 testers, the pin jack to the LEFT is to be connected to ANT. post of radio receiver.
Page 9 SHELL – CAP. BALLAST TUBES INSTRUCTIONS FOR TESTING "BALLAST TUBES” ON THE 530 and 510X In the following chart of settings, an "X" under any "Short Switch" position indicates that neon lamp will light in that position with Selectors A and B set as shown following the tube type number.
Page 10 BALLAST TUBES TUBE TYPE SELECTOR SHORT SWITCH POSITION A1-1B1-1C1-1E1-1F1-1G1-1J1- 1K1-1L1-1N1-1P1-1Q1-1R1G- 1S1G-1T1G-1U1G-1Vl-1Yl-1Zl-2 2UR224 2UR212 6-133 6-6AA 7-8-9 10A – 10AG 10AB K17B – M17C – BM17C M17HG – M17H K23B – K23C –KX23B – KX30C 3 M30H 30A – K30A K30D 33A-33AG K34B K36B-BK36B-L36B-M36C-BM-...
Page 11 TUBE TYPE SELECTOR SHORT SWITCH POSITION K36H-M36H-M36HG L40S1-L4CS2 42A1 42A2 – 42B2 K42B-L42B-M42B-KX42B- LX42B-L42BX-K42C-L42C- M42C BK42D-K42S-L42D LX42D-L42DX K42E-L42E L42F 42HA-K42HJ-M42H-M42HG KX42C L42S1 49A-49AJ-K49AJ MX49A 49A1 49A2-49B2 K49B-L49B-M49B-BM49B- K49C-L49C-M49C-BM49C- BK49C-K49E-L49E K49D-BK49D-L49D L49F...
Page 12 TUBE TYPE SELECTOR SHORT SWITCH POSITION M49H-M49HG KZ49B-KZ49C K49BJ-L49BJ L49S2 49AJ-K49AJ KX49B-LX49B-LX49C L49DJ L49S3 50A2 50A2MG-50B2 50X3 K52H-M52H K54B 55A-K55A 55A1 KX55A 55B-K55B-M55B-BM-55B- L55BG-LX55B 55A2-55B2 K55C-L55C-KX55C K55CP K55D-L55D L55E-M55E...
Page 13 TUBE TYPE SELECTOR SHORT SWITCH POSITION L55F-M55F-BL55F K55H-M55H-M55HG L55S1-L55S2 60R30G 64.23 K67B-L67B L73B-K74B-L74B-CX74C K79B-K80B-M80B-K80C- KX80B-L80B K80F KX87B-LX87B-L90B K90F-M90F-K92F-M92F L92B-95K2 L99D 100R8 120R 120R8-135K1 135K1A 140L4-140L8-140R4-140R8 140R 140L44-140R44 165L4-165L8-165R4-165R8 165R 165L44-165R44 185L4-185L8-185R4-185R8 185R...
Page 14 TUBE TYPE SELECTOR SHORT SWITCH POSITION 185L44-185R44 200R-250R 250R8-290L4 300R4-320R4 808-1 E14980-W43357-W45788-3613 3334-3334A 8593-8598-8601-8664 3ER248 3CR241...
Page 15 SUPPLEMENTARY CHART FOR MODELS AC-51, AC51X, T53, 530, 610 AND 510X TUBE TESTERS. TUBE SELECTOR FIL. POTENT. MUT. NOTATIONS TYPE VOLTS COND. 3000 AMPL. Left at 70 ½ for 6000 micromhos 12.6 2500 AMPL. Plt. No. 1 Short on 1-4-5 12.6...
Page 16 TUBE TEST. The capacity switch is set on NORMAL at all times except when measuring capacity. The analyzer section of the 510X is entirely independent of the tube test section but employs the same indicating meter.· The rectifying elements used in this tester when measuring A.C.
Page 17 scale reading is 30 ohms. In this position, resistance as low as 1/10 ohm can be estimated. The third range on the ohmmeter multiplies the scale by 100 . In this range, the center reading of the scale is 30,000 ohms. The connecting leads are placed in the corresponding pin jacks.
Page 18 17.6 Henries. In like manner, when measuring chokes of any size divide the reading in microfarads into 7.04, which will give the result in Henries. If it is desired to measure the inductance of a choke coil with a D.C. component of current, connect a small dry battery in series with one of the connecting leads.
Page 19 (c) The secondary of the special transformer is connected across the 500 ohm resistor. (d) The 0-20 volt A.C. range of the 510X is connected across the 500 ohm resistor. (e) The special transformer should conform to the following formula.
Page 20 �� = � 4000 (g) EXAMPLE 2: Power tubes are two #45’s in push pull, then R is 4000. – 2.83 CONVERSION TABLE FOR DECIBELS DECIBELS VOLTS ACROSS RELATIVE LOUDNESS AT 500 OHMS 400 CYCLES WITH SAME- SIGNAL 1.09 1.23 1.38 1.54 1.73...
Page 21 Set master switch on A.C. volts 200. Set Selector A on 1, Selector B on 6. Furnished with the 510X is a special cable for testing small condensers. One end of the cable is equipped with a plug. The black wire terminates in a pin tip.
Page 22 Turn down volume control. Turn on power. Connect 0-20 volt A.C. range of 510X across plate and cathode of any socket in which it is desired to check hum. The meter reads ripple volts directly. Disregard swing of pointer as connection is first made.
Page 23 CONVERSION TABLE FOR.CHECKING CAPACITY OF SMALL CONDENSERS ON 50 CYCLE AND 25 CYCLE MODELS ONLY, (14). CAPACITY IN VOLTMETER VOLTMETER M.F. READING ON READING ON 200V SCALE, 200V SCALE 50CY. 25CY. .0001 1.25 .0002 .00025 .0005 .001 .002 .003 .004 .005 .006 .007...
