Fiskars Solid 1070835 Original Instructions Manual

Solid™
Oscillating Sprinkler M
Original instructions:
ATTENTION:
Please read the manual before using.
Please include all documents when handling over the product to others.
Always close the water source
WARNING:
(water tap) after use of the garden watering
products · Electric shock hazard -Do not
direct the water jet on or near electrical con-
nections, products or outlets · Do not direct
the water jet towards persons or animals
· No drinking water · For non-commercial use
only -commercial use will void guarantee.
For watering use with outdoor home water
faucet only. Not for indoor or appliance use
· Do not use with water exceeding 38 °C
· Detach and drain before storing in frost free
environment · Do not leave product pressur-
ised while unattended.
Disposal
Dispose of the product through or
IMPORTANT:
via your municipal recycling collection centre.
Warranty terms The manufacturer shall re-
pair or replace, through the dealer, any parts
of the product found to be faulty due to man-
ufacturing defects, for a period of 24 months
as of the date of purchase. This service is
subject to the following provision: the device
has been used for its intended purpose as
per the recommendations in the user manual.
The warranty does not cover defects due to
tampering, improper use or wear. The war-
ranty is valid only if the customer returns the
product to the dealer complete in all its parts
together with the receipt or other document
proving the date of purchase. The warranty
is fulfilled by supplying a fully functional re-
placement device or by repairing the faulty
device. The manufacturer reserves the right
to choose between these options.
EU Declaration of Conformity
According to Machinery Directive 2006/42/
EC. We, Manufacturer: Fiskars Finland
Oy Ab Address: Keilaniementie 10, 02150
Espoo, Finland, declare that the following
product:
Product ID: 1070835
EAN: 6411501512765
Product name: Solid™ Oscillating Sprinkler
M
Complies with all the relevant provisions
of the following directive(s) and the corre-
sponding national regulations;
Machinery directive 2006/42/EC
Person authorized to compile the technical
file: Juha Huhtala.
Ruukintie 22, 10330 Billnäs.
Signed for and on behalf of:
Fiskars Finland Oy Ab:
On 20.12.2023, in Billnäs, Finland.
fiskars.com
Model 1070835
Use
Pivot the sprinkler leg to crossing position
1.
( )
B
Attach the sprinkler to a watering hose (
2.
Turn on the water supply
3.
Adjust the sprinkler settings for
optional:
your watering need:
Adjust the coverage distance and direction
( )
D
Turn off the water supply
4.
Detach the sprinkler from the watering
5.
hose ( )
F
Drain the sprinkler before storing
6.
Storage
Store in a frost-free environment. Product
1.
can be stored by using hanging loop (
Maintenance
To keep your sprinkler performing at its best:
Do not rotate the sprinkler's spray tube by
1.
hand ( ).
H
Clean the sprinkler regularly.
2.
For instructions, check the side section:
Cleaning guide or
video online
Troubleshooting
PROBLEM:
Sprinkler does not rotate back and forth.
Tap is closed.
1.
POSSIBLE CAUSE:
Open the tap.
SOLUTION:
Insufficient water pressure.
2.
POSSIBLE CAUSE:
Lowest recommended operating
SOLUTION:
pressure is 2 bars.
Connected hose is twisted/
3.
POSSIBLE CAUSE:
kinked.
Check hose.
SOLUTION:
PROBLEM:
Sprinkler rotates to one side and stops.
Insufficient water pressure.
POSSIBLE CAUSE:
Lowest recommended operating
SOLUTION:
pressure is 2 bars.
PROBLEM:
All nozzles in the sprinkler does not
perform.
Nozzles are blocked with
POSSIBLE CAUSE:
debris or lime.
Clean the sprinkler according to the
SOLUTION:
Cleaning guide.

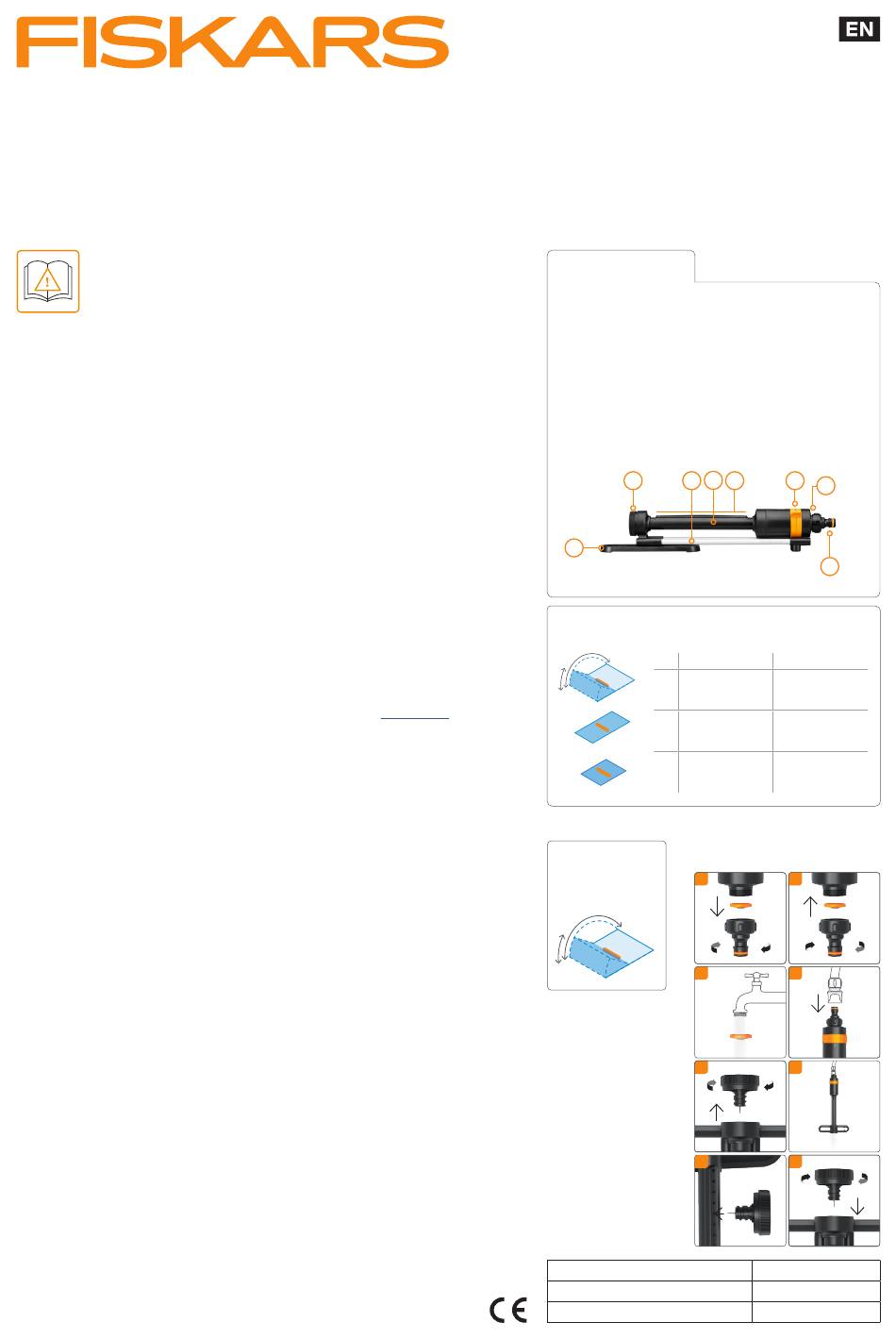

Oscillating sprinkler
Removable cap for tube flushing / with included nozzle
A.
cleaning tool
Pivoting leg with integrated hang hole for easy, compact
B.
storage
Durable metal base for stability
C.
Intuitive non-slip controls
D.
)
F
Removable extra-large, rust-free filter for extended
E.
cleaning interval
Universal quick connector, works with other brands
F.
Spray tube
G.
Spray nozzles
H.
A
B
).
B
Coverage guidance
** Performance is related to operating pressure
Watering
Adjustable
distance & direction
OPERATING PRESSURE
OPERATING TEMPERATURE
MAX. WATER TEMPERATURE
UK Fiskars UK Limited
Wedgwood Drive, Barlaston
Stoke-on-Trent
Staffordshire, ST12 9ER
ukconsumercare@fiskars.com
AU +61 1300 852 022
australia.orders@fiskars.com
H
C G D
E
F
2 bar / 29 psi 4 bar / 60 psi
2–16 m 4–19 m
13 m 15 m
<210 m <285 m
2 2
Cleaning guide:
1 5
2 6
3 7
8
4
15 – 60 Psi / 1 – 4 bar
5 – 50 °C
38 °C
