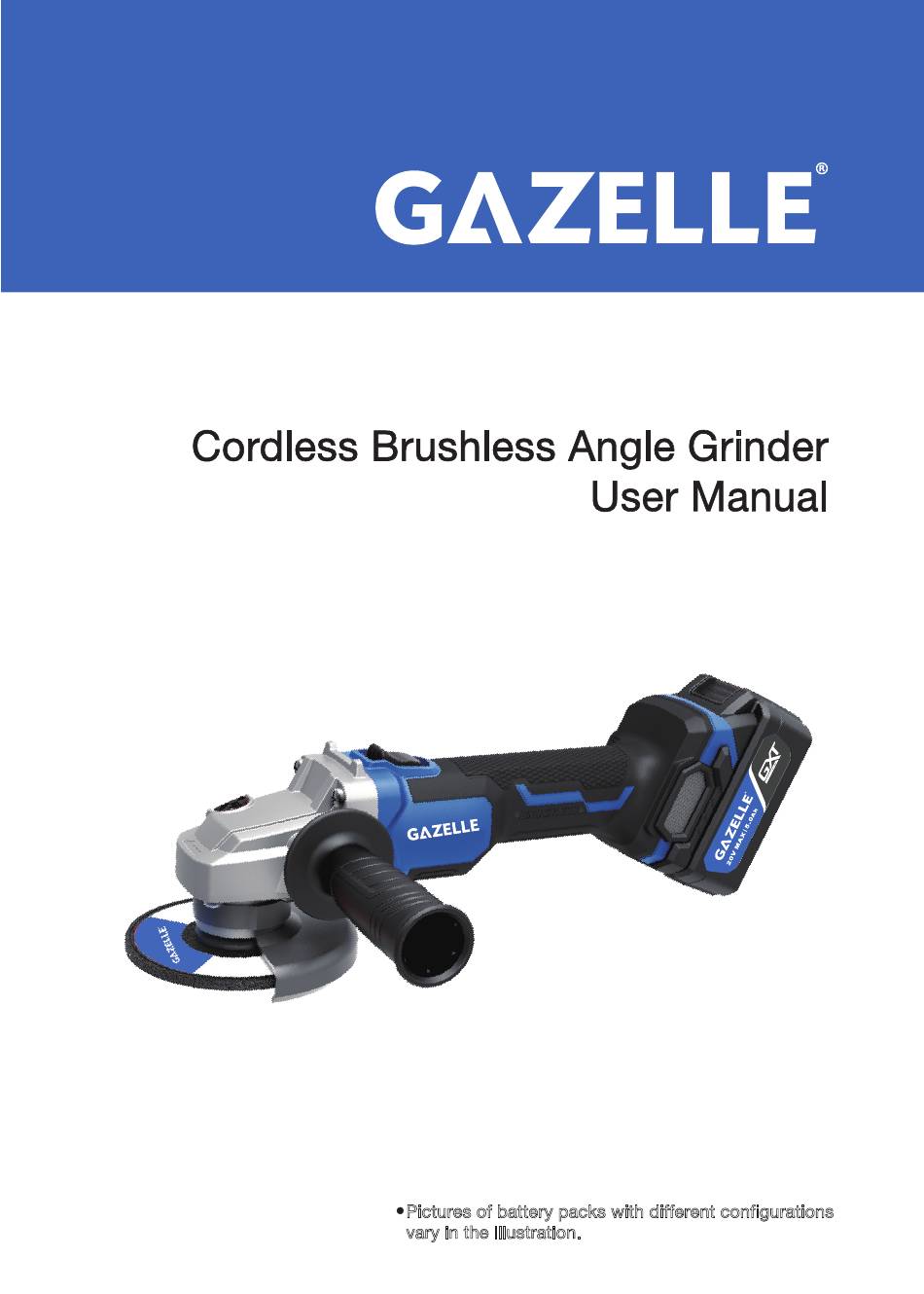

- Page 1 GC2038 Pictures of battery packs with different configurations vary in the illustration.
- Page 2 Read through carefully and understand these instructions before use.
-
Page 3: General Power Tool Safety
moment of inattention while operating power tools GENERAL POWER TOOL SAFETY may result in serious personal injury. WARNINGS b)Use personal protective equipment. Always wear eye protection. Protective equipment such as dust WARNING Read all safety warnings, mask, non-skid safety shoes, hard hat, or hearing instructions, illustrations and protection used for appropriate conditions will specificationsprovided with this power tool. - Page 4 etc. in accordance with these instructions, cannot be adequately guarded or controlled. taking into account the working conditions and f) Threaded mounting of accessories must match the work to be performed. Use of the power tool the grinder spindle thread. For accessories mounted by flanges, the arbour hole of the for operations different from those intended could accessory must fit the locating diameter of the...
- Page 5 o) Do not use accessories that require liquid the guard lip. An improperly mounted wheel that coolants. Using water or other liquid coolants may projects through the plane of the guard lip cannot result in electrocution or shock. be adequately protected. c) The guard must be securely attached to the Further safety instructions for all operations power tool and positioned for maximum...
- Page 6 SAVE THESE INSTRUCTIONS. WARNING! MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. Technical data Model GC2038 Rated Voltage(V Wheel Size(mm) Ø125x4xØ22 Rated Speed (/min) 8500 Spindle Thread Net Weight (whitout battery) kg ※Due to the continuing program of research and development, the specifications herein are subject to change...
-
Page 7: General Descriptions
GENERAL DESCRIPTIONS 1.Spindle Lock Button 2.Switch Knob 3.Battery Indicator 4.Battery Pack 5.Dust Cover 6.Auxiliary Handle 7.Wheel Guard CAUTION:Be sure to firmly install the auxiliary handle before operation. ● Spindle Lock CAUTION:Never actuate the spindle when the spindle is moving. The tool may be damaged. INSTRUCTIONS FOR OPERATION Press the spindle lock to prevent spindle rotation CAUTION: Before any work on the machine itself (e.g. - Page 8 rounded off by use, the wheel may be worked in both A and B directions. To switch OFF, depress the rear of the switch knob to unlock the switch and the knob will return to the OFF position normally. ● Cutting Operation ●...
-
Page 9: Maintenance
of the red and green indicator lights. When a failure occurs, remove the battery and then insert it into the charger again. If the failure continues, change with a new battery. If the new battery can be charged, then the old battery maybe damaged. If the charging indicator lights indicate same failure as before while changing with a new battery, then the charger maybe damaged, take the charger to be repaired by qualified... - Page 10 EXPLANATION OF GENERAL VIEW Cross Recessed Pan Head Screw Outer Flange M4×12 (With Spring Washers) Inner Flange Fan Cover Wheel Guard Assembly Baffle Plate Drive Spindle Washer （8×12×1） Dust Cap Armature Gear Housing Cover Bearing625P-2RS O Ring（47.5×2） Stator Assembly Cross Recess Cross Recessed Pan Dustproof Washer Head Tapping Screw ST2.2×6 20V Brushless Angle Grinder Pcb...
