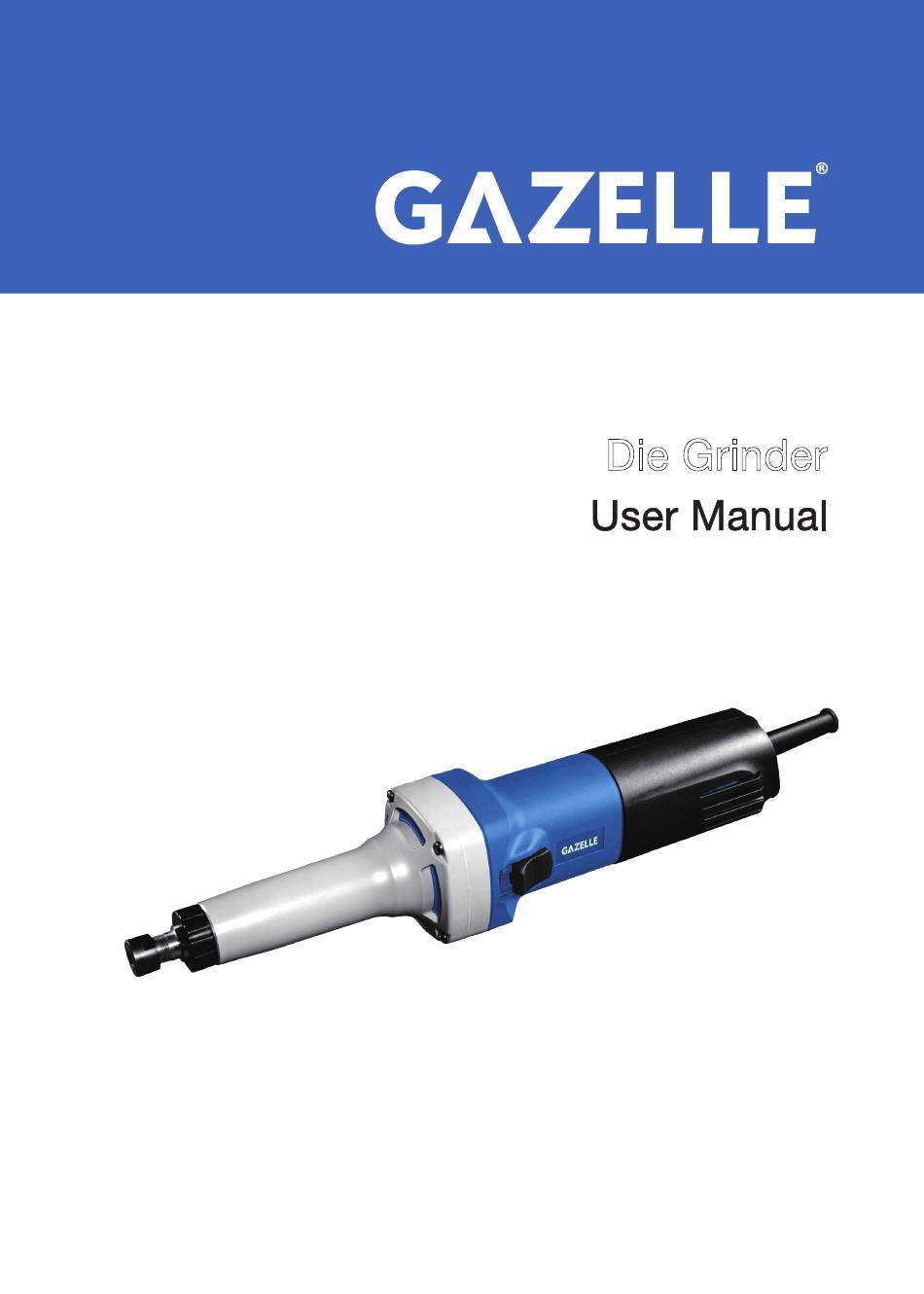

  • Page 1 GM4580 Die Grinder...
  • Page 2 Read through carefully and understand these instructions before use.

  • Page 3: General Power Tool Safety

    not use a power tool while you are tired or under GENERAL POWER TOOL SAFETY the influence of drugs, alcohol, or medication. A WARNINGS moment of inattention while operating power tools may result in serious personal injury. WARNING Read all safety warnings, b)Use personal protective equipment.
  • Page 4 wheels for chips and cracks, sanding drum for are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory maintained cutting tools with sharp cutting edges is dropped, inspect for damage or install an are less likely to bind and are easier to control.
  • Page 5 or any other adjustment devices are securely speed cutters or tungsten carbide cutters, tightened. Loose adjustment devices can always have the work securely clamped. These unexpectedly shift, causing loss of control, loose wheels will grab if they become slightly canted rotating components will be violently thrown.

  • Page 6: Technical Data

    This product is suitable for grinding metal materials or similar materials with wheel point under general environmental conditions. The performance and specifications of this product are shown in the table below: Model GM4580 Rated Power Input Rated Speed /min 9000-26700 Max.

  • Page 7: Instructions For Operation

    move the tool back and forth regularly. INSTRUCTIONS FOR OPERATION CAUTION: ● Installing or Removing the Wheel Point Excessive force in grinding operation will not CAUTION: only reduce the efficiency of the machine, but Always be sure that the tool is switched off and also easily wear the wheel point.

  • Page 8: Maintenance And Care

    1.Carbon Brush 1. Slip Stone 2.Carbon Brush Holder 3.Coil Spring MAINTENANCE AND CARE ※If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent CAUTION: in order to avoid a safety hazard. Always be sure that the tool is switched off and unplugged before attempting to perform inspection or maintenance.
  • Page 9 EXPLANATION OF GENERAL VIEW Collet Nut Baffle Plate Collet Stator Assembly Cover Motor Housing Seal Carbon Brush Barrel Carbon Brush Holder Pan Head Tapping Screw ST4×35 Belleville Spring Damping Washer（30×33×4） Pan Head Tapping Screw ST2.9×9 Drive Spindle Capacitor Ball Bearing 6000ZZ Nameplate Circlip for Shaft 10 Speed Adjusting Dial Ass’y...
